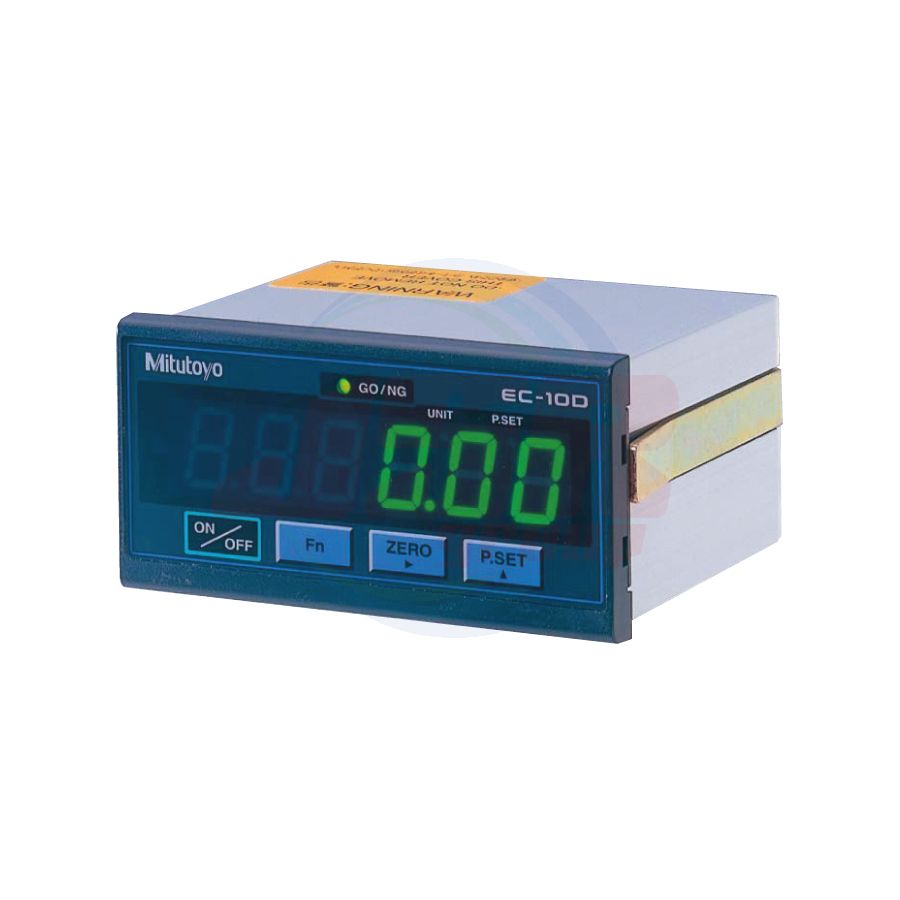

542-007 | EC Counter SERIES 542 — Low-cost, Modular Type Display Unit | MITUTOYO

THB 0.00 THB 0.00

สินค้าหมด

SKU

542-007

• The counter can be connected to a gage that has a data output function, such as a Digimatic indicator or linear gage.

• 3 sets of limiting values can be displayed and output.

• Compact size (DIN 96×48 mm)

Order No.		542-007
Resolution ( ) indicates maximum display range		0.01 mm (±9999.99) / 0.0005 in (±99.9995 in) / 0.001 in (±999.999 in) 0.001 mm (±9999.999) / 0.00005 in (±9.99995 in) / 0.0001 in (±99.999 in) [automatic setting by gage]
Tolerance judgment display		LED display (3 steps: Amber, Green, Red)
External output (switching type)	Tolerance judgment output	–NG, OK, +NG (open-collector)
	Data output	Digimatic output
Control input		External PRESET, external HOLD
Operating temperature		0 to 40 °C (RH 20 to 80%, no condensation)
Storage temperature		–10 to 50 °C (RH 20 to 80%, no condensation)

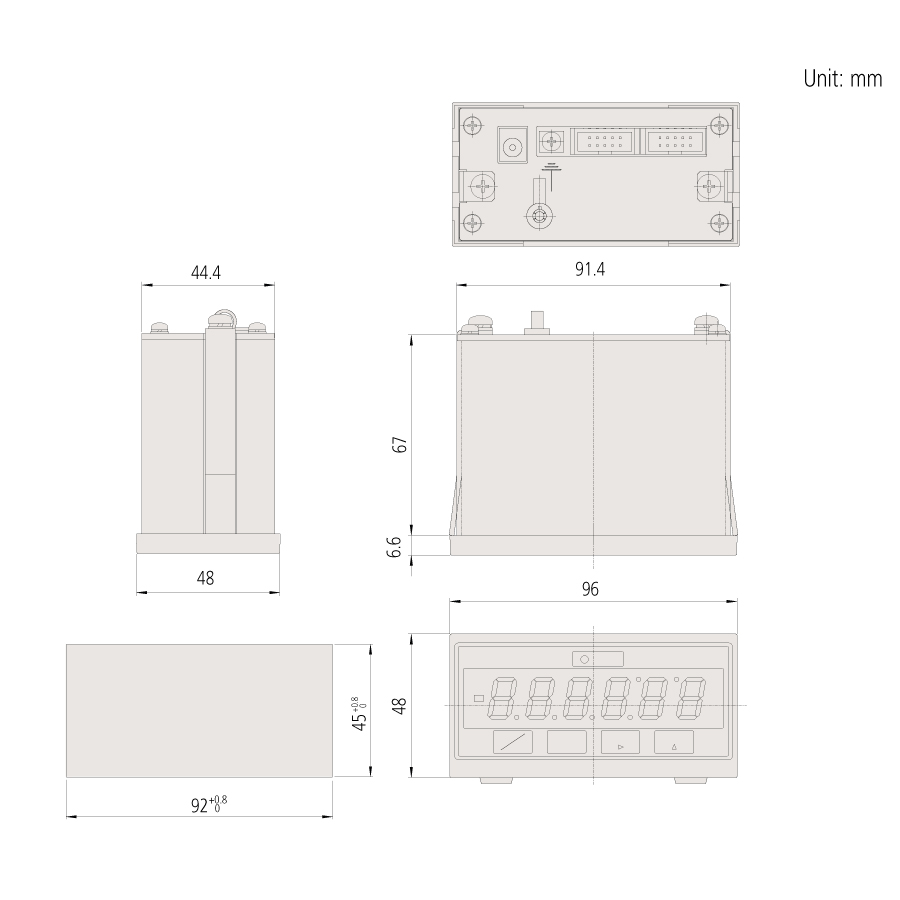

External dimensions		96 (W) ×48 (H) ×84.6 (D) mm
Power Source		AC adapter: 12BAR954 AC cable: 12BAK729 (Japan), 12BAK730 (U.S.), 12BAK731 (EU), 12BAK734 (UK), 12BAK732 (China), 12BAK733 (Korea)
Standard Accessories		AC adapter, AC cable, rubber feet
Mass		500 g

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	MITUTOYO
Order No.	542-007
