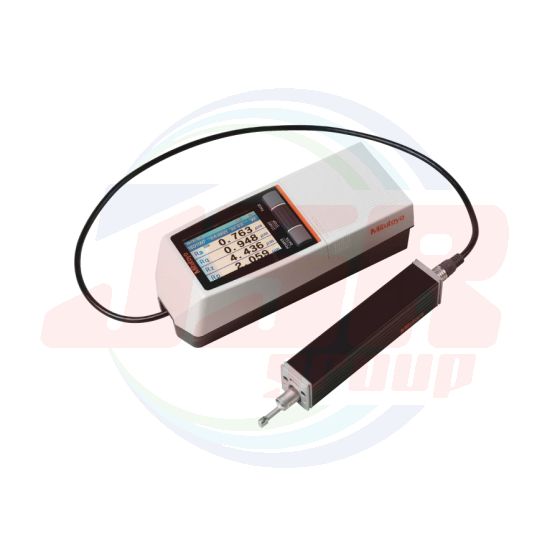

Enhancing your manufacturing with unparalleled performance

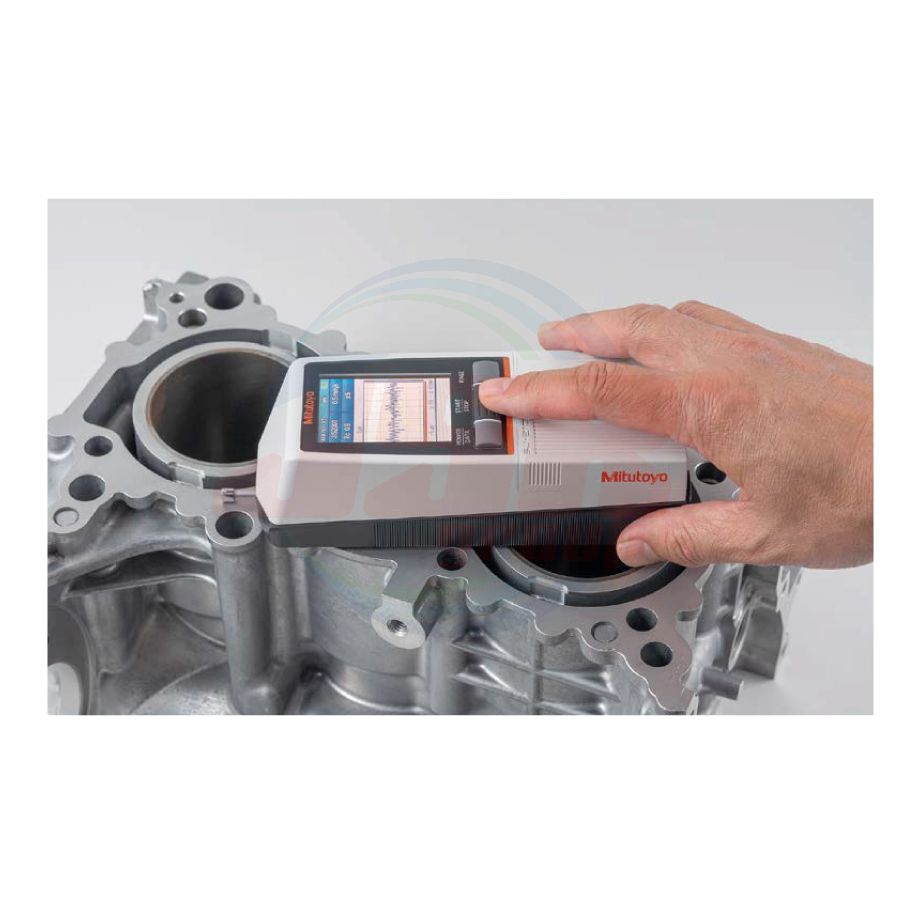

• Compact body to carry around or use on-site.
• It can be connected to a PC for greater convenience.
• Human error, such as failure to save data and unintended deletion, can be prevented.

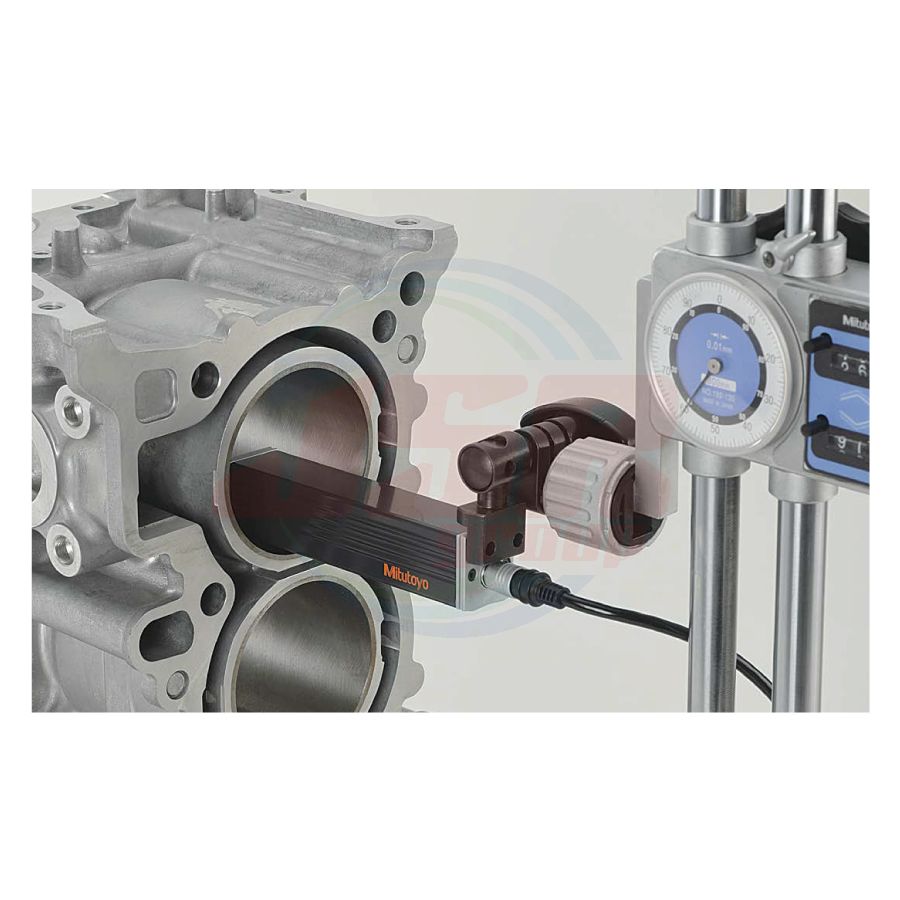

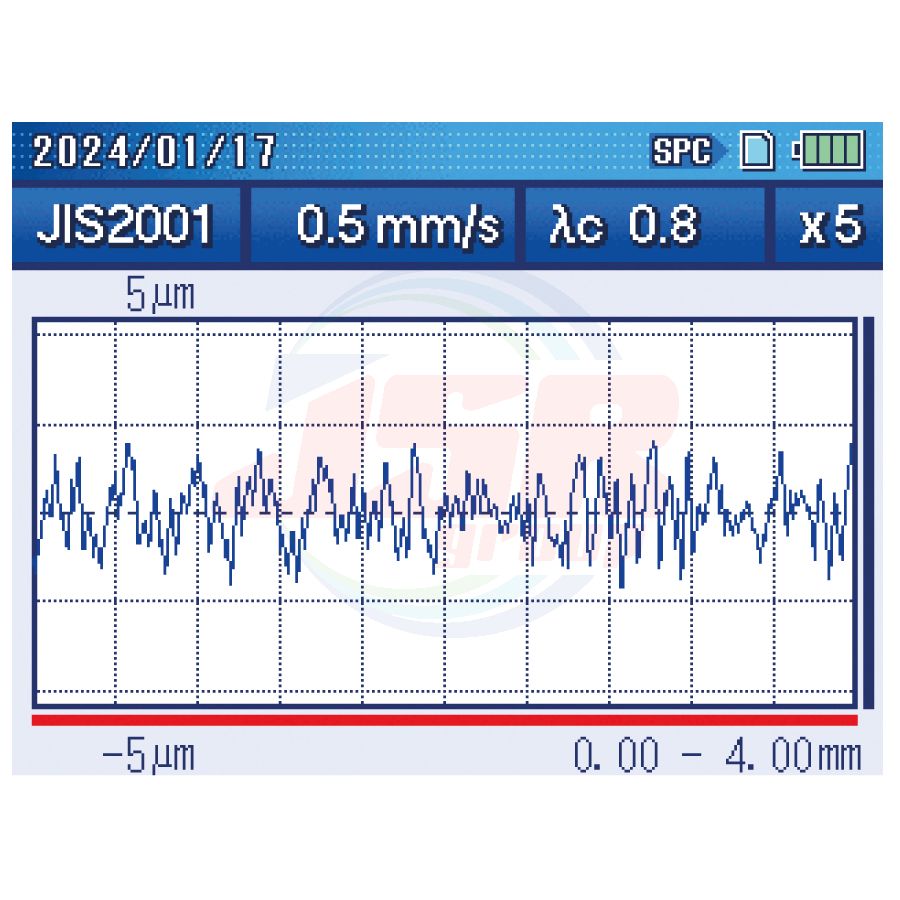

• Reliable measurements by contact detection with a visual display of contact status.
• Stabilizer helps eliminate erroneous measurements.
SPECIFICATIONS
Model | Standard drive unit | Retractable drive unit | Transverse tracing drive unit | |||||
SJ-210 (0.75 mN type) |
SJ-210 (4 mN type) |
SJ-210 (0.75 mN type) |
SJ-210 (4 mN type) |
SJ-210 (0.75 mN type) |
SJ-210 (4 mN type) |
|||
Order No. | mm | 178-560-11 | 178-562-12 | 178-562-11 | 178-562-12 | 178-564-11 | 178-564-12 | |
inch /mm | 178-561-11 | 178-561-12 | 178-563-11 | 178-563-12 | 178-565-11 | 178-565-12 | ||
Measuring range |
X axis | 16.0 mm | 5.6 mm | |||||
Detector | Range | 360 μm (-200 μm to +160 μm) | ||||||
Range/ Resolution |
360 μm/0.02 μm, 100 μm/0.006 μm, 25 μm/0.002 μm | |||||||
Measuring force/Stylus tip shape | Depends on the code number: 0.75 mN / 2 μmR 60° (when the code number ends with "-11") 4 mN/ 5 μmR 90° (when the code number ends with "-12") |
|||||||
Applicable standards | JIS B 0601:2001, JIS B 0601:1994, JIS B 0601:1982, VDA, ISO:1997, ANSI | |||||||
Assessed profiles | Primary profile, Roughness profile, DF profile, Roughness motif profile | |||||||
Parameters | Ra, Ry, Rz, Rq, Rt, Rmax*¹, Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max*², S, HSC, RzJIS*³, Rppi, RΔa, RΔq, Rlr, Rmr, Rmr(c), Rδc, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rpm, tp*4, Htp*4, R, Rx, AR, Possible Customize |
|||||||
Analysis graphs | Bearning area curve, Amplitude distribution curve | |||||||
Filters | Gaussian, 2CR75, PC75 | |||||||
Cut-off length | λc | 0.08, 0.25, 0.8, 2.5 mm | ||||||
λs*⁵ | 2.5, 8 μm | |||||||
Sampling length | 0.08, 0.25, 0.8, 2.5 mm | |||||||
Number of sampling lengths | ×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, arbitrary length (0.3 to 16.0 mm: 0.01 mm interval) |
×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, arbitrary length (0.3 to 5.6 mm: 0.01 mm interval) |
||||||
Functions GO/NG judgment*⁶ | By max value /16%/ Standard deviation |
*1 Calculation is available only when selecting the VDA, ANSI, or JIS '82 standard.
*2 Calculation is available only when selecting the ISO '97 standard.
*3 Calculation is available only when selecting the JIS '01 standard.
*4 Calculation is available only when selecting the ANSI standard.
*5 Not available when selecting the JIS '82 standard.
*6 Standard deviation only can be selected in ANSI. 16% rule cannot be selected in VDA.
แบรนด์สินค้า | MITUTOYO |
---|---|
Inch-Metric | Inch/Metric |
