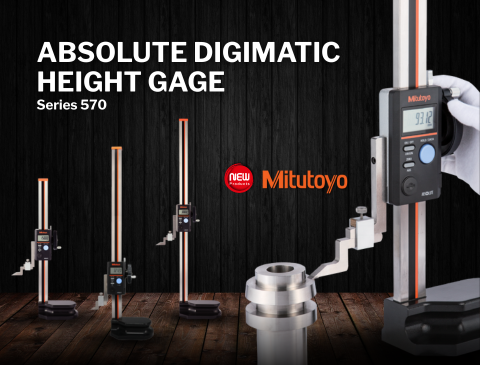

MITUTOYO - ABS Digimatic Height Gage

ABS Digimatic Height Gage Series 570

The New Standard in Smart and Reliable Height Measurement

Feature

Maximum permissible error EMPE :  ±0.03 mm, ±0.05 mm, ±0.0015 in/±0.03 mm,±0.0020 in/±0.05 mm

Measuring range :  0 to 300 mm,0 to 600 mm,0 to 12 in/0 to 300 mm, 0 to 18 in/0 to 450 mm, 0 to 24 in/0 to 600 mm

Resolution :  0.01 mm,0.0005 in/0.01 mm

Functions :  ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion*

Drive method :  Slider-feed wheel (manual)

Data output :  DIGIMATIC d1

Max. response speed : Unlimited

LCD character height :  12 mm

Helps transform manufacturing sites into smart factories

The design of the case allows for easy installation of U-WAVE (optional), which enables wireless transmission of measurement data, promoting smarter use of data in manufacturing sites.

Supports smooth and reliable measurement operations

The handle for moving the slider enables smooth vertical movement. In addition, the highly rigid pillars and large clamp levers provide smooth and reliable workability

Easy to operate for everyone

The LCD is larger to improve the visibility of numbers and other displays. In addition, the number of operation switches have been reduced to a three-button system and have enlarged the DATA/HOLD button to make it easier to press, ensuring more reliable operability.

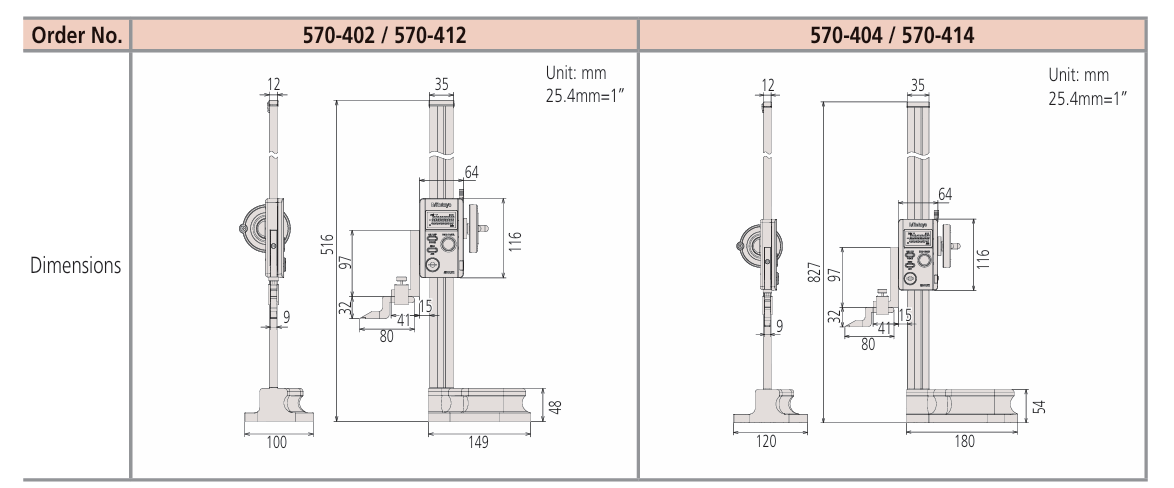

 Dimensions
