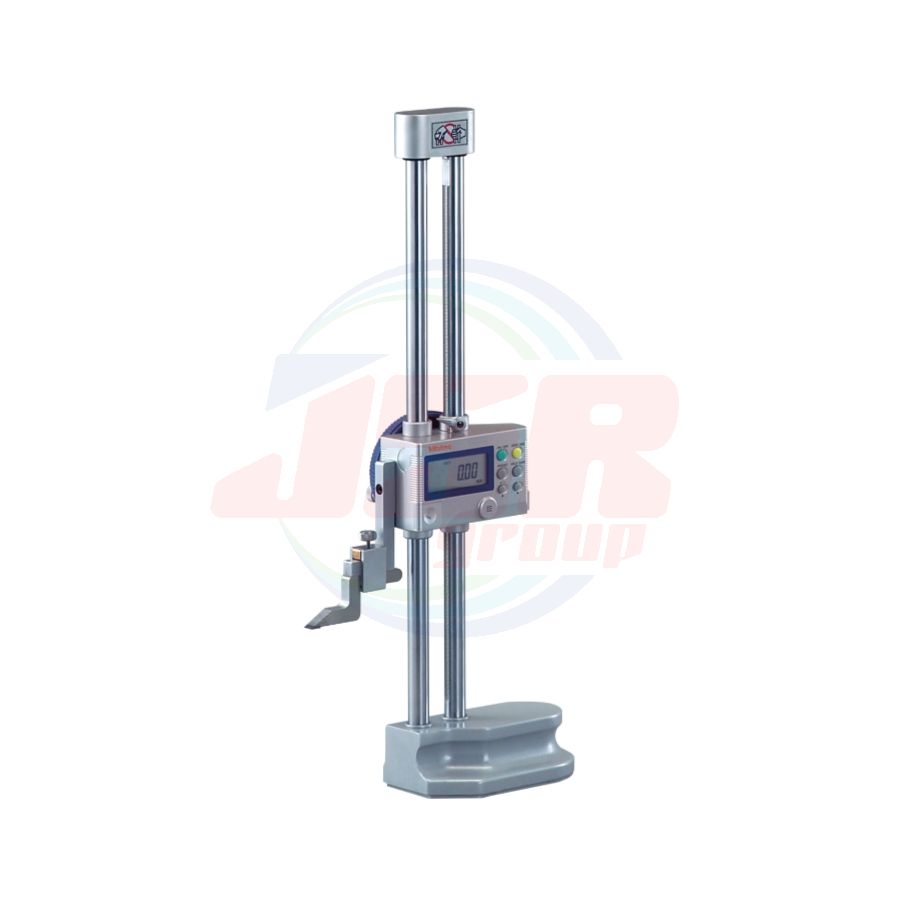

Digimatic Height Gage SERIES 192 — Multi-function Type with SPC Data Output | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 23,941.25
พร้อมส่ง
SKU
1MIT-HD-AX
• Double-column structure ensures stable measurements.
• Ergonomic base fits comfortably in the hand.
• Cannot be used with bidirectional touchtrigger probe.
Functions
• Origin-setting (ABS measurement mode): Any arbitrary value can be stored as the origin point.
• Zero-setting (INC measurement mode): Displayed value can be set to zero at any arbitrary position of the slider.
• Origin restoration: Previously set origin is restored when switching back to ABS mode.
• Presetting (ABS INC measurement mode): Displayed value can be set to any arbitrary value, including negative values.
• Measuring direction Measuring direction can be switched at the press of a button.
• Data hold Display value can be held. Reverts to ABS or INC mode when cancelled.
• Alarm: Error message is displayed when overflow or overspeed of displayed value arises and measurement is stopped.
• Data output: Allows integration into statistical process control and measurement systems. (Refer to page 09-3.)
• Fine and coarse height adjustment through knob and wheel combination. Slider height adjustment wheel allows fine and coarse height adjustment.
• Probe-tip diameter compensation: An adjustment is applied to the raw measurement data to compensate for the effect of the size of the spherical contact point used by the bidirectional touch-trigger probe.
• Presetting (2 positions): With two preset functions, two reference heights can be used relative to a surface plate.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error E MPE (mm)* |
Response speed (mm/s) |
Height (mm) | Mass (kg) |
| 192-613-10 | 0 - 300 | 0.01/0.005 (selectable) |
±0.02 | Approx. 500 | 475 | 4.7 |
| 192-614-10 | 0 - 600 | ±0.05 | 802 | 8.3 | ||
| 192-615-10 | 0 - 1000 | ±0.07 | 1228 | 15.7 |
Inch / Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error E MPE (mm)* |
Response speed (mm/s) |
Height (mm) | Mass (kg) |
| 192-630-10 | 0 - 12 | 0.01 mm/0.005 mm (selectable) 0.0005 in/0.0002 in (selectable) |
±0.001 | Approx. 500 | 475 | 4.7 |
| 192-631-10 | 0 - 18 | ±0.002 | 649 | 7.5 | ||
| 192-632-10 | 0 - 24 | ±0.002 | 802 | 8.3 | ||
| 192-633-10 | 0 - 40 | ±0.003 | 1228 | 15.7 |
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 3,500 hours in continuous use
* Maximum permissible error, E MPE is the term (notation) used in JIS B 7517: 2018, revised based on ISO/TR 14253-6: 2012.
