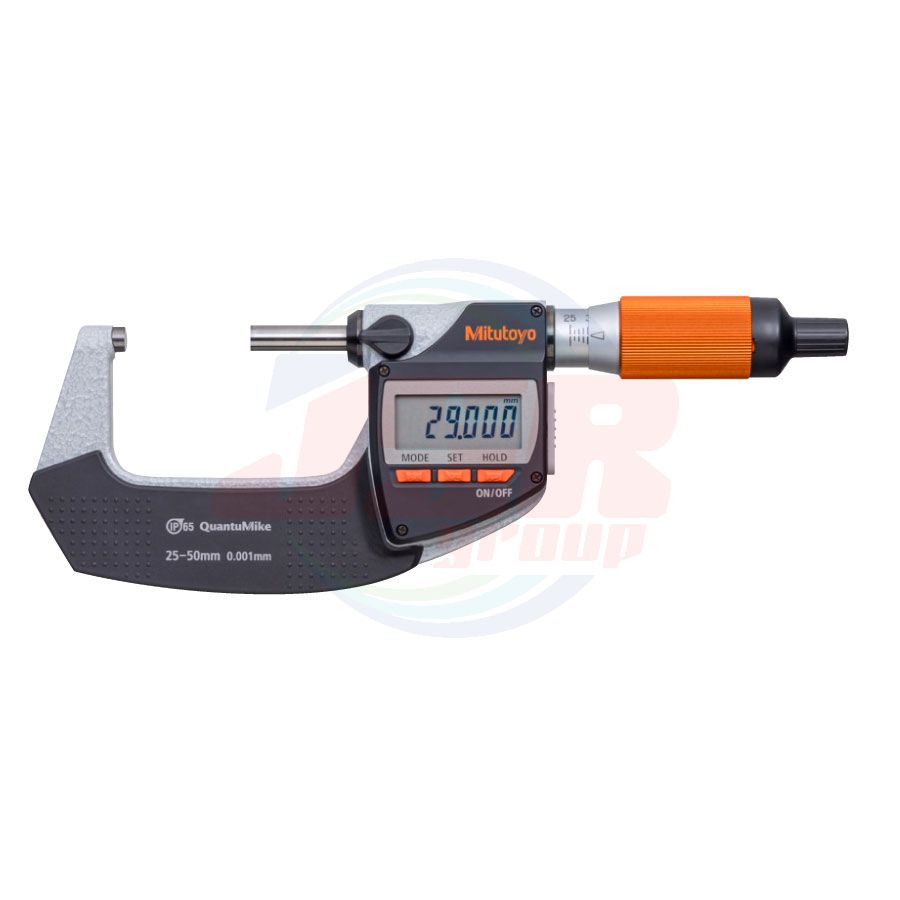

SERIES 293 | High-speed and High-accuracy Digimatic Micrometer QuantuMike - IP65 Micrometer with 2 mm/rev Spindle Feed | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
1MIT-QUANTUMIKE-293

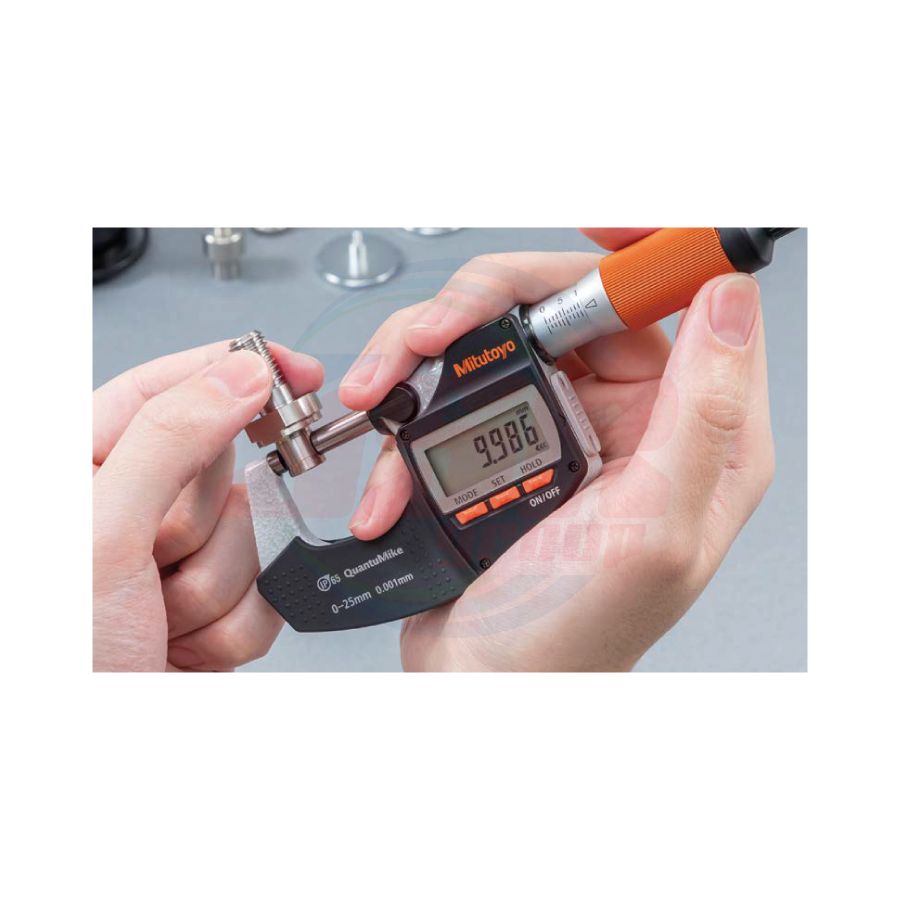

• The spindle moves four times faster than that of the standard micrometer, enabling faster, easier measurement even when it is repeated many times over.
• The approach speed warning function can detect collision with a workpiece at excessive speed, helping inexperienced users obtain reliable and accurate measurement results.
• The calculation function can calculate offsets added to measurement results before they are passed to a machine. This eliminates errors and the effort needed for calculation, helping reduce the number of rejected machined items.
• The Calibration alert function helps with effective measuring instrument management.
• Bidirectional serial communication supported.

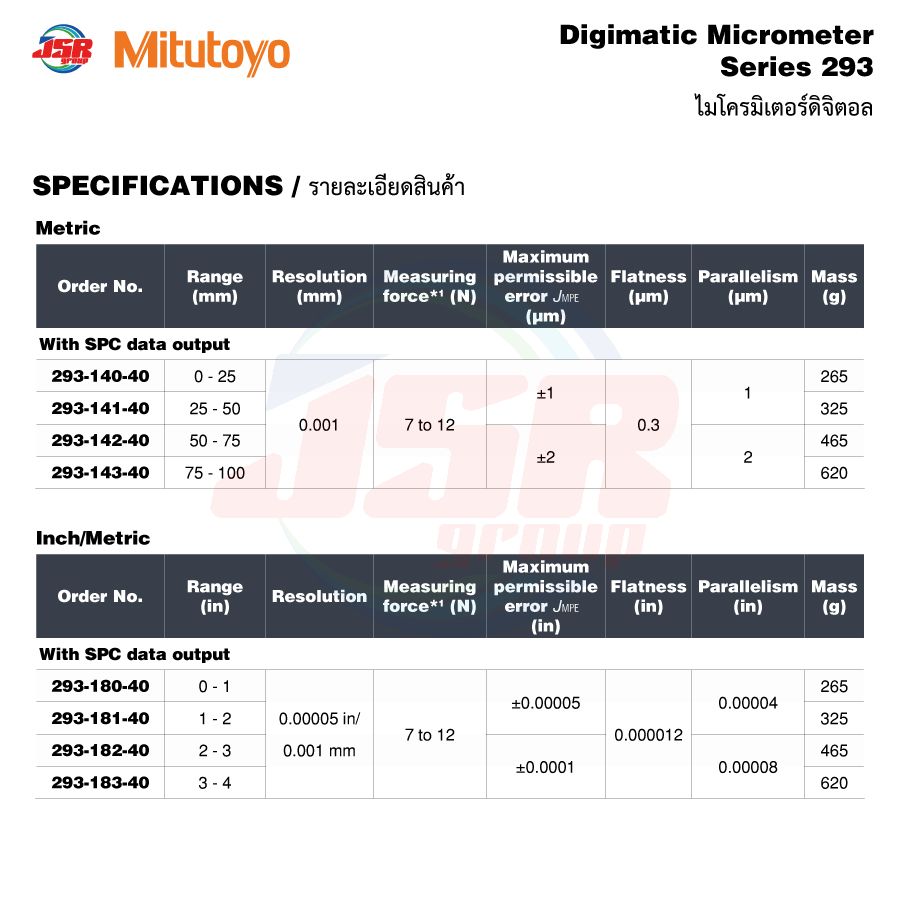

SPECIFICATIONS
Metric
| Order No. |
Range |
Resolution (mm) |
Measuring force*1 (N) |
Maximum permissible error J MPE (µm) |
Flatness (µm) |
Parallelism (µm) |
Mass (g) |
| With SPC data output | |||||||
| 293-140-40 | 0 - 25 | 0.001 | 7 to 12 | ±1 | 0.3 | 1 | 265 |
| 293-141-40 | 25 - 50 | 325 | |||||
| 293-142-40 | 50 - 75 | ±2 | 2 | 465 | |||
| 293-143-40 | 75 - 100 | 620 | |||||
Inch / Metric
| Order No. | Range (in) |
Resolution | Measuring force*1 (N) |
Maximum permissible error J MPE (in) |
Flatness (in) |
Parallelism (in) |
Mass (g) |
| With SPC data output | |||||||
| 293-180-40 | 0 - 1 | 0.00005 in/ 0.001 mm |
7 to 12 | ±0.00005 | 0.000012 | 0.00004 | 265 |
| 293-181-40 | 1 - 2 | 325 | |||||
| 193-182-40 | 2 - 3 | ±0.0001 | 0.00008 | 465 | |||
| 293-183-40 | 3 - 4 | 620 | |||||
• Dust / Water protection level: IP65 (IEC60529)*2
• Power source: CR2032 battery (1 pc.), included as standard
(for operational checks)
• Battery life: Approx. 2 years under normal use
• Position detection method:
Electromagnetic rotary sensor

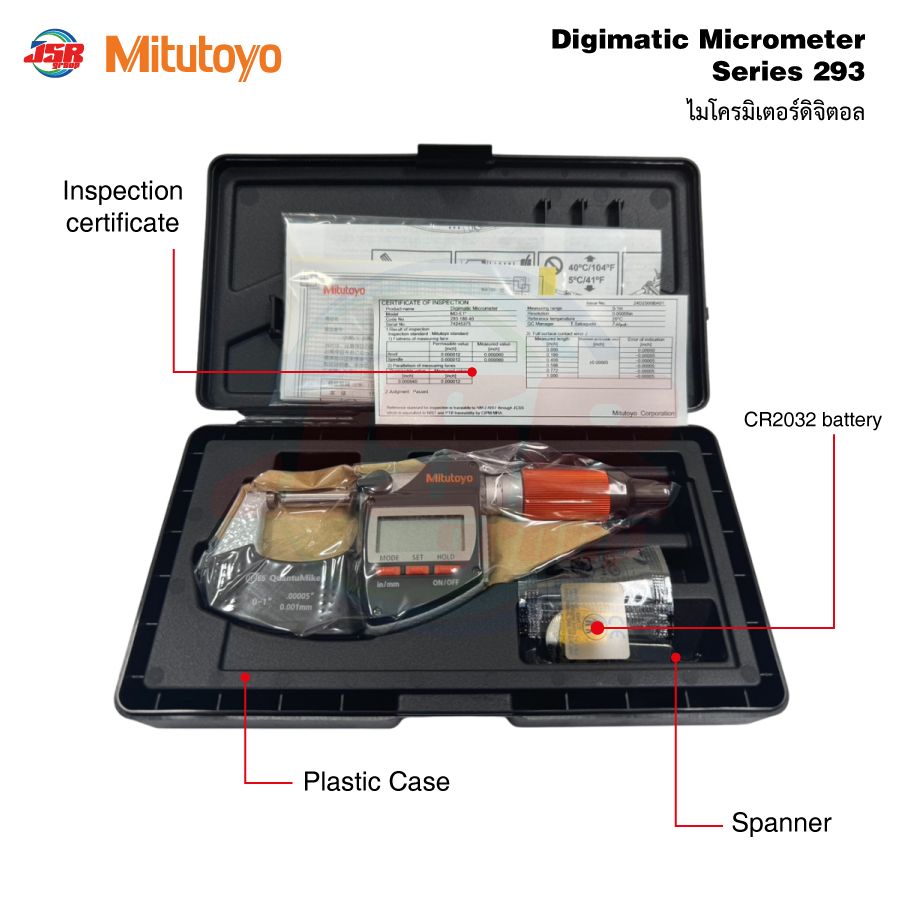

• Standard accessories: Setting standard, 1 pc. (except for 0 to 25 mm (0 to 1 in)
models), Spanner (301336), 1 pc.

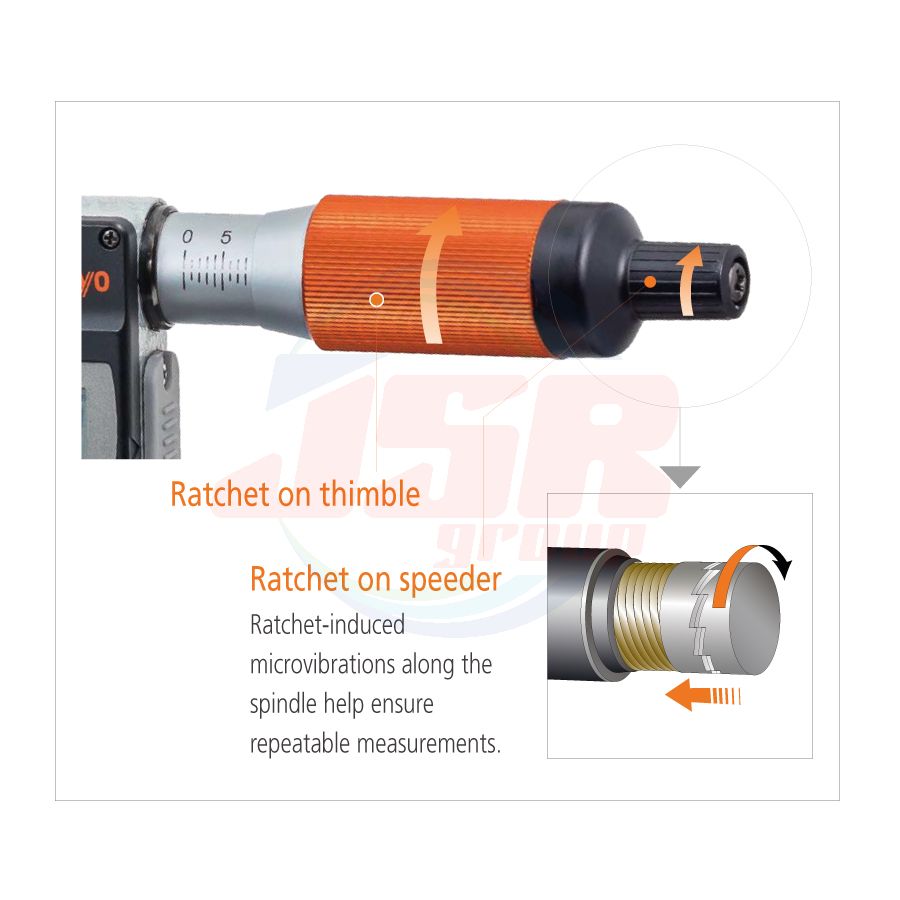

*1 Measuring force when using the speeder ratchet (Apply a measuring force in the same condition as for measurement
and then set the origin.)
*2 Rustproofing shall be applied after use.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

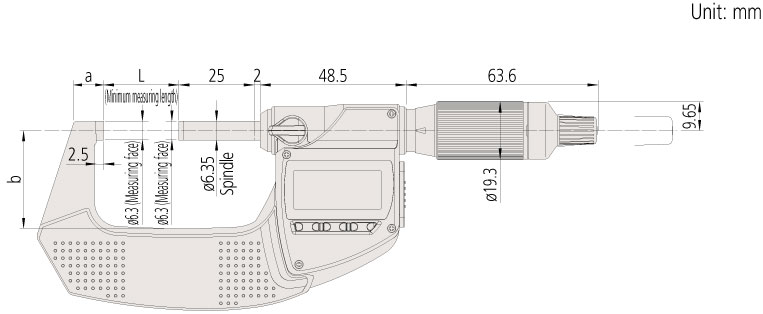

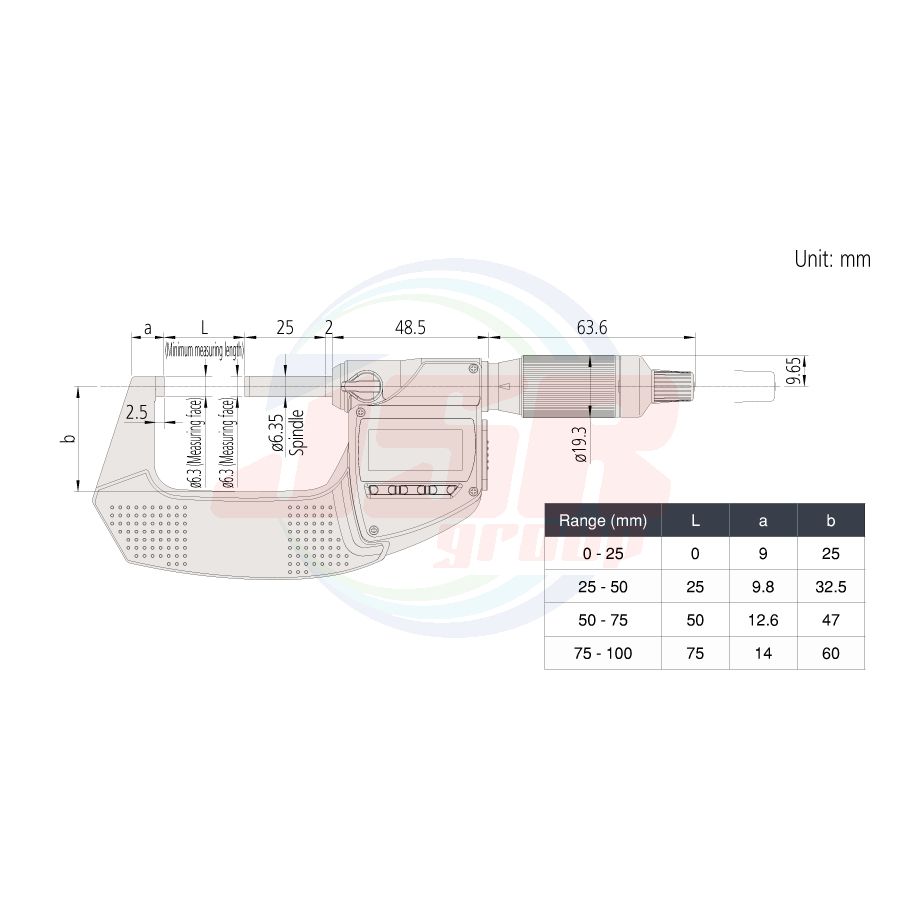

| Range (mm) | L | a | b |
| 0 - 25 | 0 | 9 | 25 |
| 25 - 50 | 25 | 9.8 | 32.5 |
| 50 - 75 | 50 | 12.6 | 47 |
| 75 - 100 | 75 | 14 | 60 |
