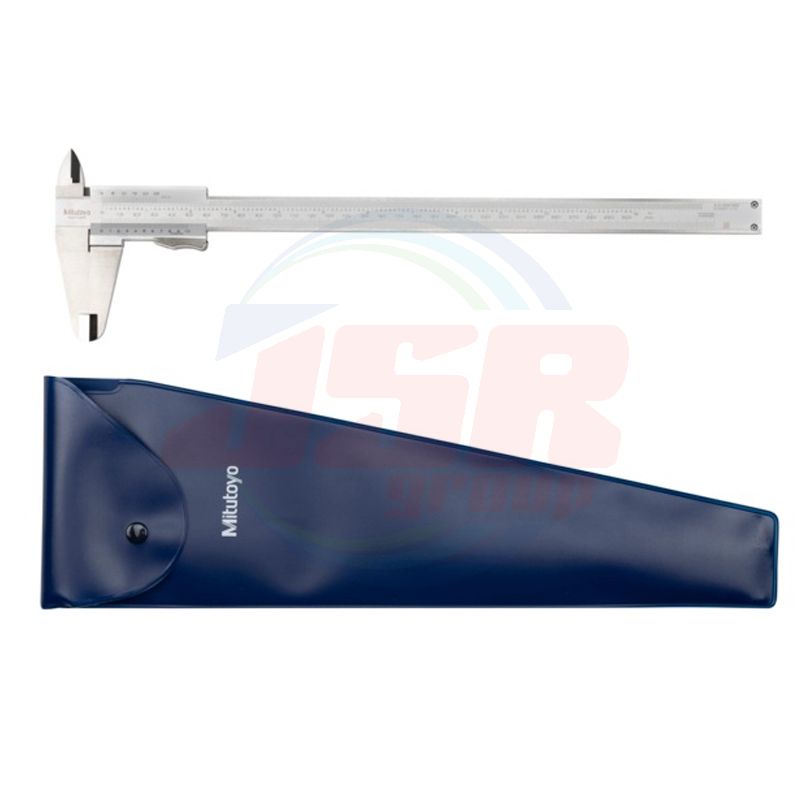

SERIES 531 | Vernier Caliper with Thumb Grip | Mitutoyo

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 1,915.30

พร้อมส่ง

SKU

1MIT-VCTG_S531

• The slider position is fixed by an automaticclamp, and the measured value can be kept after a workpiece is removed.

• This feature is helpful when measuring at an invisible point of a workpiece or reading a value without a workpiece.

SPECIFICATIONS

Metric

Code No.	Range (mm)	Graduation (mm)	Maximum permissible error (mm)*		Depth bar	Remarks
			E MPE	S MPE
531-101	0 - 150	0.05	±0.05	±0.07	Blade	—
531-102	0 - 200
531-103	0 - 300		±0.08	±0.10

Metric/Inch (with metric / inch double scale)

Code No.	Range (mm)	Graduation (mm)	Maximum permissible error (mm)*		Depth bar	Remarks
Code No.	Range (mm)	Graduation (mm)	E MPE	S MPE	Depth bar	Remarks
531-122	0 - 150 mm/0 - 6 in	0.05 mm (1/128 in)	±0.05 mm/±0.5/128 in	±0.07 mm/±0.5/128 in	Blade	with inch/mm conversion label
531-128	0 - 150 mm/0 - 6 in	0.02 mm (0.001 in)	±0.03 mm/0.001 in	±0.05 mm/0.002 in		High accuracy model
531-108	0 - 200 mm/0 - 8 in	0.05 mm (1/128 in)	±0.05 mm/±0.5/128 in	±0.07 mm/±0.5/128 in		—
531-129	0 - 200 mm/0 - 8 in	0.02 mm (0.001 in	±0.03 mm/0.001 in	±0.05 mm/0.002 in		High accuracy model
531-109	0 - 300 mm/0 - 12 in	0.05 mm (1/128 in)	±0.08 mm/±0.5/128 in	±0.10 mm/±0.5/128 in		—
531-112	0 - 300 mm/0 - 12 in	0.02 mm (0.001 in)	±0.04 mm/0.0015 in	±0.06 mm/0.0025 in		High accuracy model

* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
