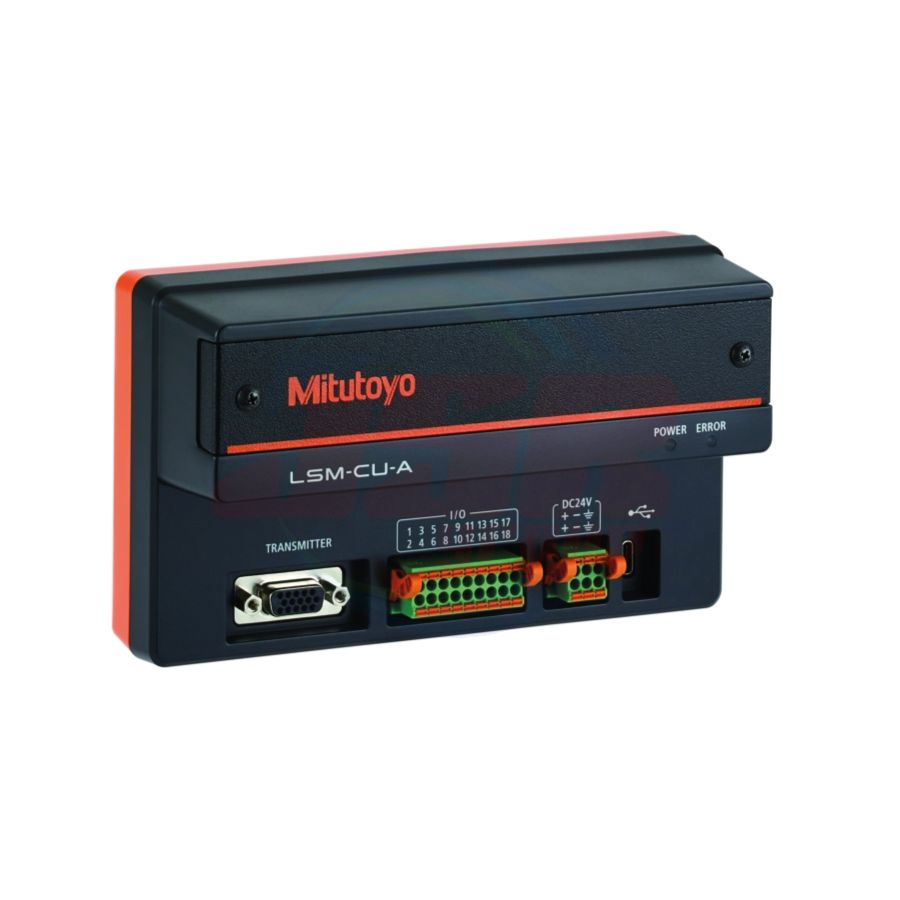

Controller for LSM Developed for In-line and Automated Equipment
LSM-CU-A
• Can be connected to LSM-02-A/LSM-30-A.
• Compact, thin design that fits in a distribution board or inside equipment.
• Easily mountable on a DIN rail without the need for tools.
• USB Type-C, I / O ports, and industrial interfaces (optional).
• Configuration software included as standard for easy configuration.
Specifications
| Order No. | 544-120 (metric) 544-121 (mm/inch switchable type) |
|
| Model | Model LSM-CU-A | |
| Measuring functions *1 | Segment mode | 1 to 7 (1 to 3, transparent) |
| Edge mode | 1 to 255 | |
| Averaging method | Arithmetic average: from 1 to 2048, Moving average: from 32 to 2048 | |
| Functions | Transparent object measurement, Ultra-fine wire mode (LSM-02-A only), Simultaneous measurement of two items, Automatic workpiece detection, Outlier elimination, Judgment (lower limit/upper limit, multi-limit tolerance zone, target value and tolerance value), Dirt detection for protective glass, Sample measurement, Analog output, Parameter setting (Measurement condition): 20, Workpiece position, Calibration, Presetting, Offset, Statistical analysis, Calculation of two or more sets, Sensor model identification |
|
| Standard I/F | Indicator | ［POWER］LED (green),［ ERROR］LED (red） |
| Signal cable connector | Mini D-Sub (15 pins) | |
| USB connector | Type-C | |
| I/O connector | Separate terminal block (18 pins) | |
| Power supply connector | Separate terminal block (6 pins) | |
| Power supply | DC+24 V ± 10%, 3.0 A or more *2 | |
| Operating temperature | Temperature: 0 °C to 50 °C, Humidity: 20%RH to 80%RH (non-condensing) Altitude: 2000 m or less |
|
| Storage temperature | Temperature: -10 °C to 60 °C, Humidity: 20%RH to 80%RH (non-condensing) | |
| Mass | Approx. 550 g | |
| CE Marking / UKCA Marking | EMC Directive: EN IEC 61326-1, Immunity test requirements: Clause 6.2 Table 2 Emission limit: Class A RoHS Directive: EN IEC 63000 |
|
| Standard accessory | Socket for I/O terminal block: D800-396, Socket for power supply terminal block: D827-827 Grounding wire (4 m): 02AGQ068 CD (LSMPAK installer, User's Manual): 02NGA070 |
|
*1 Each function has its combination limit.
*2 Use an AC adapter/switching power supply with output of at least +24 V/3.0 A.
Reference AC adapter: Signcomplex / AC adapter 24V / 3A DC Port diameter 5.5×2.1 mm, Power supply connector: KAUMO Co.,Ltd. / Power supply connector O.D. 5.5 mm I.D. 2.1 mm
Switching power supply: OMRON Corporation / OMRON S8VS-12024
