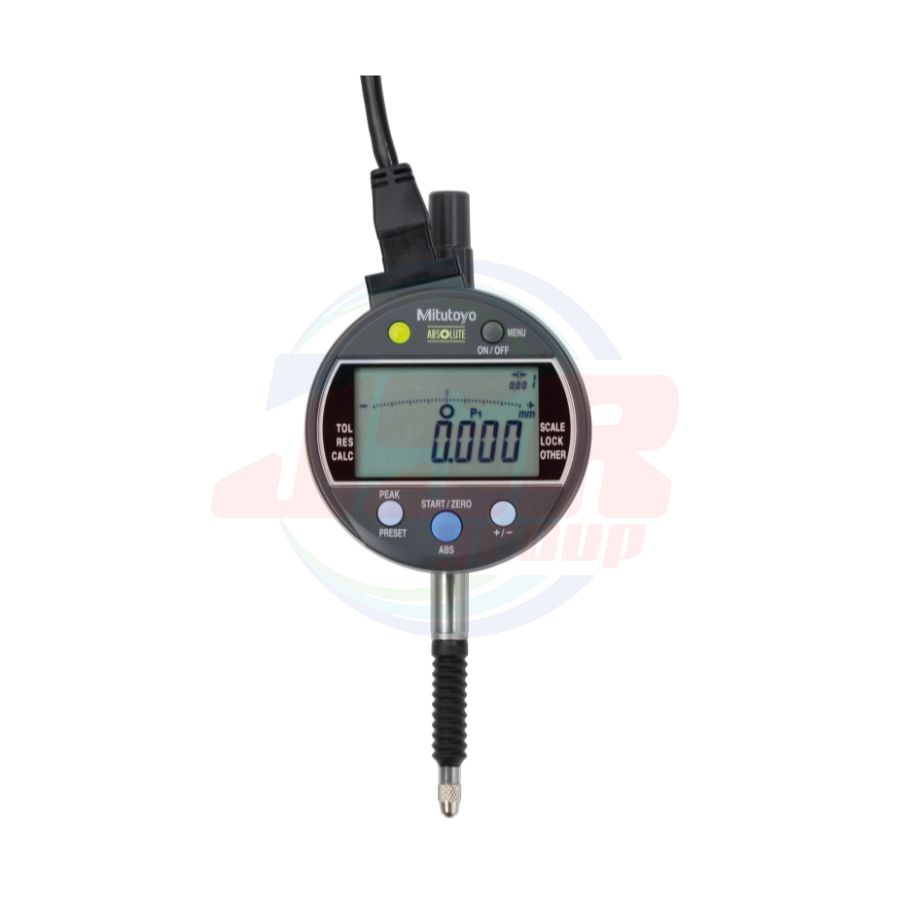

ABSOLUTE Digimatic Indicator ID-CJX SERIES 543 — Signal Output Function Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 19,542.48
พร้อมส่ง
SKU
ID-CJX
• Enables the GO/NG judgment result to be output to external equipment. Output is enabled by directly connecting to an external device such as a sequencer, contributing to automation of measurement processes. It also supports logical invert of signal output.
• The GO/NG judgment result is also indicated by the green/red LED and the signs on display.
• A peak detection function is equipped for measuring and judging peak values such as runout.
• The ABS (ABSOLUTE) scale restores the last origin position* automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.
SPECIFICATIONS
Metric --- ISO/JIS Type
| Order No. | Range (mm) |
Resolution (mm) |
Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
Mass (g) |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | ||||
| 543-350-10 | 12.7 | 0.001/0.01 (selectable) |
0.003 | 0.003 | 0.003 | 0.002 | 2.5 or less | 295 |
| 543-350B-10 (flat back) |
285 | |||||||
Inch / Metric --- ISO/JIS Type
| Order No. | Range | Resolution | Maximum permissible error (MPE)*1 (mm) | Maximum permissible limit (MPL) |
Mass (g) |
|||
| Partial measuring range P MPE |
Total measuring range E MPE |
Hysteresis H MPE |
Repeatability R MPE |
Measuring force (N) | ||||
| 543-351-10 | 0.5 in/ 12.7 mm |
0.00005/ 0.0001/ 0.0005 in, 0.001/ 0.01 mm (selectable) |
0.003 | 0.003 | 0.003 | 0.002 | 2.5 or less | 295 |
| 543-351B-10 (flat back) |
285 | |||||||
Inch / Metric --- ASME/ANSI /AGD type
| Order No. | Range | Resolution | Maximum permissible error (MPE)*1 (in) | Maximum permissible limit (MPL) |
Mass (g) |
||
| Overall*3 | Hysteresis | Repeatability | Measuring force (N) | ||||
| 543-352-10 | 0.5 in/ 12.7 mm |
0.00005/ 0.0001/ 0.0005 in, 0.001/ 0.01 mm (selectable) |
±0.00010 | 0.00010 | 0.00010 | 2.5 or less | 295 |
| 543-352B-10 (flat back) |
285 | ||||||
*1 These values apply to normal measurements at 20 °C.
*2 Overall magnification and linearity
Note 1: Display readout does not rotate.
Note 2: MAX/MIN holding: sample rate is 100 readings/s; max. rate of change of reading is 100 μm/s or less.
Note 3: Standard contact point: 901312 (ISO/JIS type), 21BZB005 (ANSI / AGD type)
| แบรนด์สินค้า | MITUTOYO |
|---|
