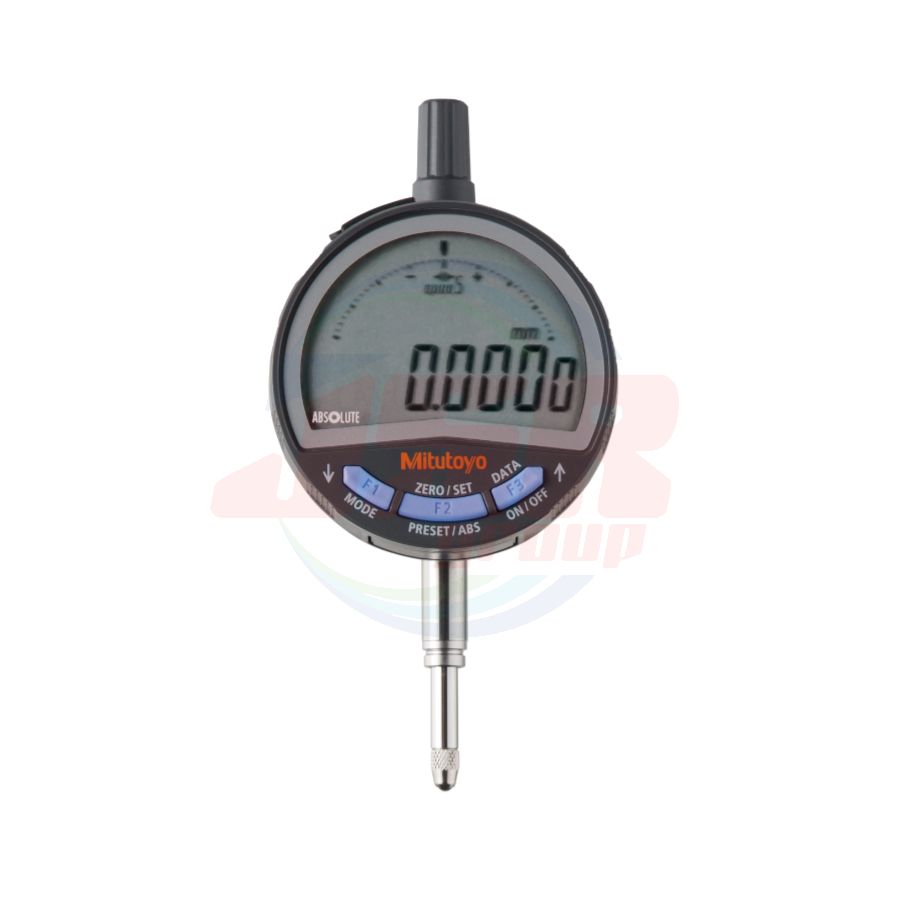

ABSOLUTE Digimatic Indicator ID-CNX (Digimatic S1 supported) SERIES 543 — Standard Type | MITUTOYO

• ID-C Series is a next-generation indicator with many new functions, supporting bidirectional communication. With the addition of the appropriate data cable and software, remote zero setting and gage setting can all be implemented from a connected PC, thereby improving your work efficiency.

• The digital display and analog bar indications help you to intuitively read the approach to the origin and tolerance values.

• The next calibration due date can be set with an alarm to improve instrument management.

• The ABS (ABSOLUTE) scale restores the last origin position* automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.

• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.

Functions
• Peak detection (MAX/MIN)
• Runout range measurement (MAX - MIN)
• Zero-setting (INC system)
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Resolution switching
  (For 0.0005 mm or 0.00002 inch resolution type)
• Simple calculation: f(x) =Ax
• Function Lock
• Calibration schedule warning
• Auto power OFF
• Data output
• Display value holding (when no external device is connected)
• 330° rotary display
• Low battery / voltage alarm display
• Error alarm display
