ABSOLUTE Snap Caliper SERIES 573 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 9,436.33
พร้อมส่ง
SKU
SNAP-CALIPER

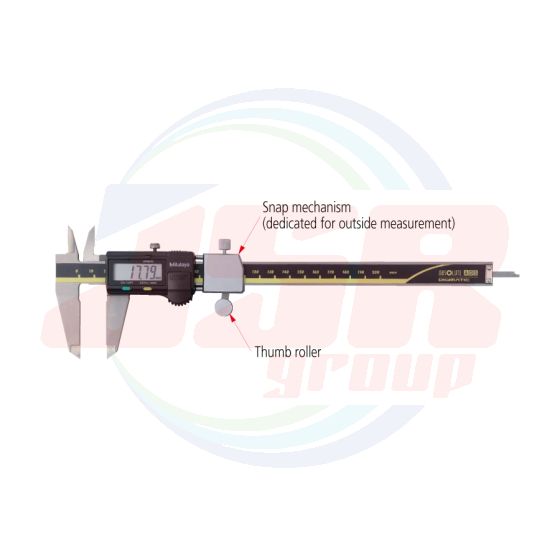

• Features a 'snap action' movement control of the slider via a spring-loaded mechanism attached to a movable clamp on the beam.
• Enables quick and efficient repetitive Go/ No-Go inspection of a specific dimension on mass-produced parts by just moving a lever.
• The slider can be retracted by up to 2 mm from the measuring position.
• Measuring force: 7 to 14 N
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 573-181-30 | 0 - 100 | 0.01 | ±0.02 | ±0.04 |
| 573-182-30 | 0 - 150 | |||
Inch / Metric
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)* | |
| E MPE | S MPE | |||
| 573-281-30 | 0 - 4 in/0 - 100 mm | 0.0005 in/0.01 mm | ±0.001 in/±0.02 mm | ±0.002 in/±0.04 mm |
| 573-282-30 | 0 - 6 in/0 - 150 mm | |||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: ABSOLUTE electromagnetic inductive linear encoder
• Response speed: Unlimited
* The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
| แบรนด์สินค้า | MITUTOYO |
|---|

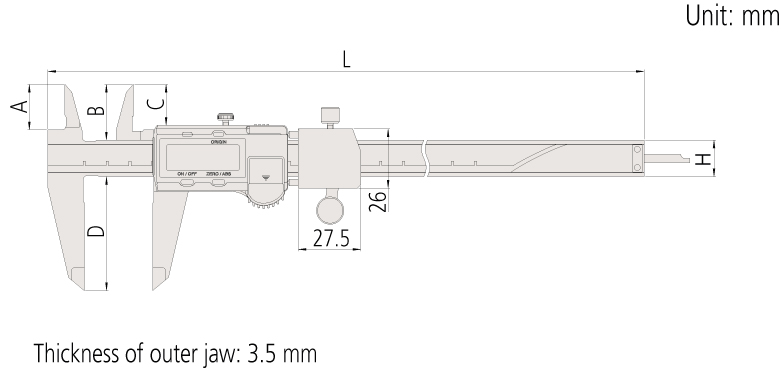

| Range | A | B | C | D | H | L |
| 0 - 100 mm/0 - 4 in | 16.5 | 21 | 14.5 | 40 | 16 | 233 |
| 0 - 150 mm/0 - 6 in | 20 | 24.5 | 18 | 50 | 290 |
