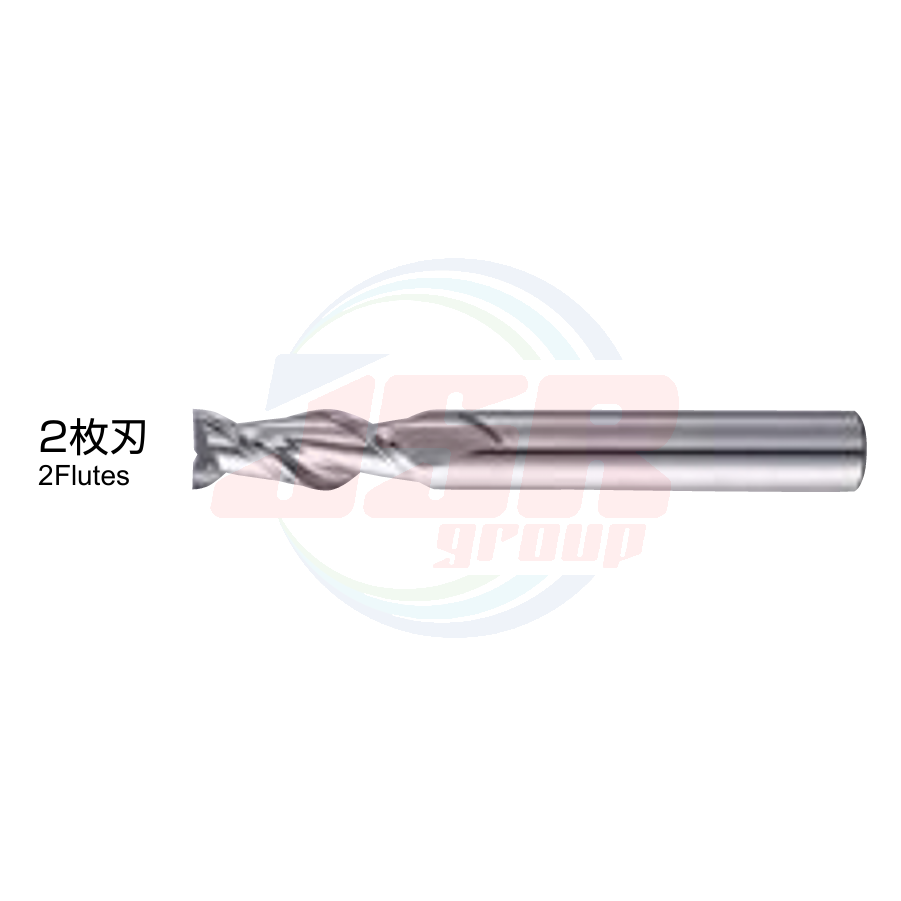

AES | CARBIDE SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,063.55
พร้อมส่ง
SKU
AES
End mill for machining of aluminum
| ０〜−0.02 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | AES |
| Order No. | AES |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
|||
|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首下長 Under neck length |
全長 Overall length |
||
| AES2010 | ● | 1 | 2.5 | 40 | 4 |
| AES2020 | ● | 2 | 6 | 40 | 4 |
| AES2030 | ● | 3 | 8 | 45 | 6 |
| AES2040 | ● | 4 | 11 | 45 | 6 |
| AES2050 | ● | 5 | 13 | 50 | 6 |
| AES2060 | ● | 6 | 13 | 50 | 6 |
| AES2070 | ● | 7 | 20 | 60 | 8 |
| AES2080 | ● | 8 | 20 | 60 | 8 |
| AES2090 | ● | 9 | 20 | 65 | 10 |
| AES2100 | ● | 10 | 25 | 70 | 10 |
| AES2110 | ● | 11 | 25 | 75 | 12 |
| AES2120 | ● | 12 | 25 | 75 | 12 |
| AES2130 | ● | 13 | 25 | 75 | 12 |
| AES2140 | ● | 14 | 35 | 90 | 12 |
| AES2150 | ● | 15 | 35 | 90 | 16 |
| AES2160 | ● | 16 | 35 | 90 | 16 |
| AES2180 | ● | 18 | 40 | 105 | 16 |
| AES2200 | ● | 20 | 40 | 105 | 20 |
