ASRTM | HIGH FEED RADIUS END MILLS | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ASRTM
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Order No. | ASRTM |
|
商品コード |
在庫 Stock |
刃数 No.of flutes |
寸 法 Size(mm) |
適用インサート Recommended inser |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

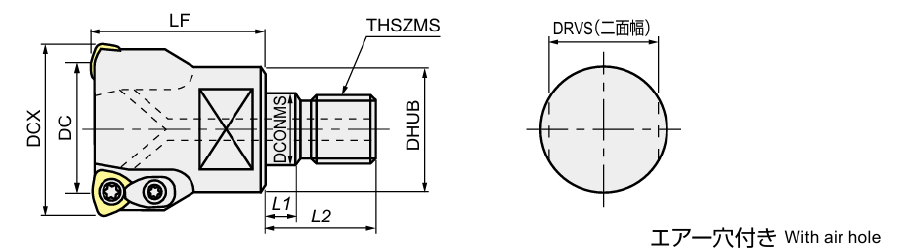

| DCX | DC | LF | DCONMS | THSZMS | DHUB | L1 | L2 | DRVS | ||||
| ASRTM3025R-2 | ● | 2 | 25 | 14 | 35 | 12.5 | M12 | 20.8 | 5.5 | 22 | 17 | WDNW09T320 WDNT09T320 WDNT09T320-B WDNT09T320ZH |
| ASRTM3028R-2 | ● | 2 | 28 | 17 | 35 | 12.5 | M12 | 23 | 5.5 | 22 | 17 | |
| ASRTM3030R-3 | ● | 3 | 30 | 19 | 40 | 17 | M16 | 28.8 | 6 | 23 | 22 | |
| ASRTM3032R-3 | ● | 3 | 32 | 21 | 40 | 17 | M16 | 28.8 | 6 | 23 | 22 | |
| ASRTM3035R-3 | ● | 3 | 35 | 24 | 40 | 17 | M16 | 28.8 | 6 | 23 | 22 | |
| ASRTM3040R-4 | ● | 4 | 40 | 29 | 40 | 17 | M16 | 28.8 | 6 | 23 | 22 | |
