Mass (including the control device and installation platform)
6150 kg
Air supply
Pressure
CMM: 0.4 MPa REVO: 0.5 MPa
Consumption
150 L/min under normal conditions (air source: 230 L/min or more), 0.6 MPa or more
Note: While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
Accuracy

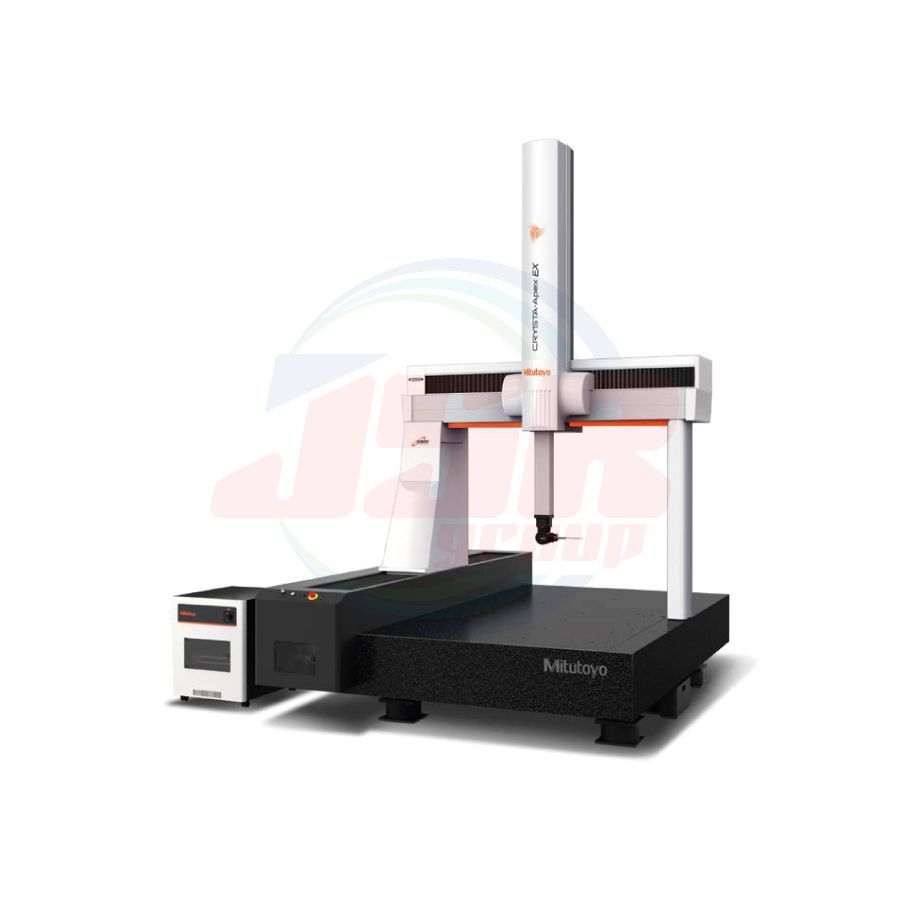

CRYSTA-Apex EX 121210R/122010R/123010R Series Accuracy
(Unit: μm)
Probe used
Temperature environment
Maximum permissible error of length measurement ISO 10360-2:2009 (JIS B 7440-2:2013)
REVO+RSP2+RSH250
1
E 0, MPE = 2.9+4L/1000 E 250, MPE = 2.9+4L/1000
2
E 0, MPE = 2.9+5L/1000 E 250, MPE = 2.9+5L/1000
REVO+RSP3-3+ RSH3
1
E 0, MPE = 2.5+3L/1000 E 250, MPE = 2.5+3L/1000
2
E 0, MPE = 2.5+4L/1000 E 250, MPE = 2.5+4L/1000
* L=Measuring length (unit: mm) * Table below defines temperature environments 1 and 2

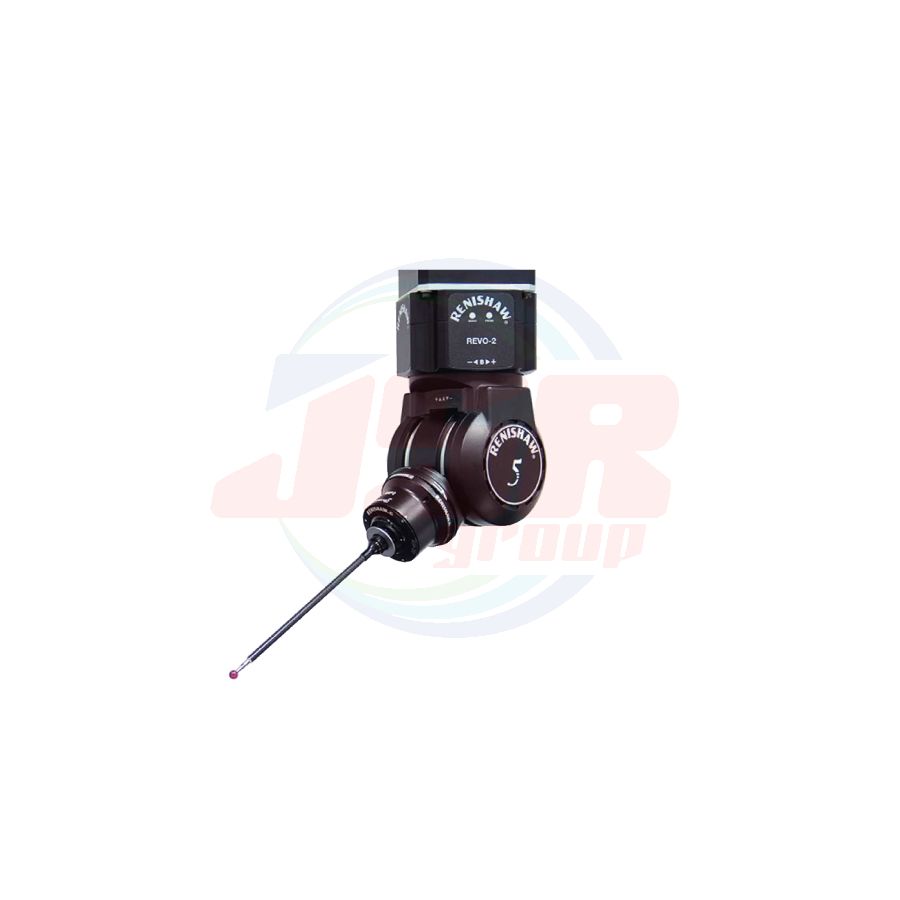

Specification of REVO-2 Scanning Probe
Rotation angle (Pitch angle)
(Pitch angle) Vertical (A-axis)
-5° to +120° (0.08 sec)
Horizontal (B-axis)
∞ (0.08 sec)
Maximum stylus length
500 mm (Distance from probe rotation center to stylus tip)
REVO-2 Probes
Automatic changeover of these probes is possible with an auto probe changer.
• RSP2 Optimal for 5-axis scanning and touch-trigger measurement Stylus holder supports 175 mm, 250 mm, 350 mm, 450 mm, and 500 mm effective stylus length
• RSP3-3 SP25 scanning probe, allowing the use of a cranked stylus
• SFP2 Surface roughness probe
Temperature environment
CRYSTA-Apex EX 121210R/122010R/123010R Series Installation Temperature
