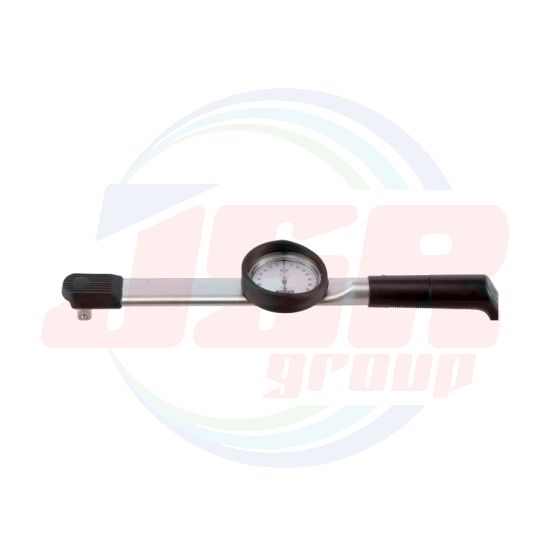

DB/DBE/DBR - DIAL INDICATING TORQUE WRENCH | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-DBSI
INSPECTION | DIAL INDICATING | DIRECT READING | ISO6789:2003,2017
● Memory pointer for easy torque reading
● Ideal for torque measuring and quality check applications
| S.I. Order No. | Torque Range [N•m/kN•m] | Metric Order No. | Torque Range [kgf•cm/ kgf•m] | American Order No. | Torque Range [lbf•in/lbf•in] | Overall Length [mm] | Square Drive [mm] | Weight | |||
| Min.- Max. | Grad. | Min.- Max. | Grad. | Min.- Max. | Grad. | kg | |||||
| N•m | N•m | kgf•cm | kgf•cm | lbf•in | lbf•in | ||||||
| DB1.5N4-S | 0.2-1.5 | 0.02 | 15DB4-S | 2-15 | 0.2 | DB13I-2AS | 0-13 | 0.2 | 205 | 6.35 | 0.4 |
| DB3N4-S | 0.3-3 | 0.05 | 30DB4-S | 3-30 | 0.5 | DB26I-2AS | 0-26 | 0.5 | 205 | 6.35 | 0.4 |
| DB6N5-S | 0.7-6 | 0.1 | DB60M5-S | 7-60 | 1 | DB40I-2AS | 0-40 | 0.5 | 205 | 6.35 | 0.4 |
| DB12N5-S | 1.4-12 | 0.2 | DB120M5-S | 14-120 | 2 | DB75I-2AS | 0-75 | 1 | 205 | 6.35 | 0.4 |
| DB25N-1/4-S | 3.5-25 | 0.5 | DB250M5-1/4-S | 35-250 | 5 | DB150I-2AS | 0-150 | 2 | 245 | 6.35 | 0.6 |
| DB25N5-S | 3.5-25 | 0.5 | DB250M5-S | 35-250 | 5 | DB150I-3AS | 0-150 | 2 | 245 | 9.5 | 0.6 |
| - | - | - | - | - | - | DB300I-3AS | 0-300 | 5 | 320 | 9.5 | 0.6 |
| DB50N-S | 5-50 | 0.5 | DB500M-S | 50-500 | - | - | - | - | 320 | 9.5 | 0.6 |
| lbf•ft | lbf•ft | ||||||||||
| DB25F-3AS | 0-25 | 0.5 | 320 | 9.5 | 0.6 | ||||||
| lbf•in | lbf•in | ||||||||||
| DB600I-3AS | 0-600 | 10 | 400 | 9.5 | 0.7 | ||||||
| DB100N-3/8-S | 10-100 | 1 | DB1000M-3/8-S | 100-1000 | 10 | 400 | 9.5 | 0.7 | |||
| lbf•ft | lbf•ft | ||||||||||
| DB50F-3AS | 0-50 | 0.5 | 400 | 9.5 | 0.7 | ||||||
| lbf•in | lbf•in | ||||||||||
| DB600I-4AS | 0-600 | 10 | 400 | 12.7 | 0.7 | ||||||
| DB100N-S | 10-100 | 1 | DB1000M-S | 100-1000 | 10 | 400 | 12.7 | 0.7 | |||
| lbf•ft | lbf•ft | ||||||||||
| DB50F-4AS | 0-50 | 0.5 | 400 | 12.7 | 0.7 | ||||||
| DB200N-S | 20-200 | 2 | DB2000M-S | 200-2000 | 20 | DB100F-4AS | 0-100 | 1 | 500 | 12.7 | 1.0 |
| kgf•m | kgf•m | ||||||||||
| - | - | - | - | - | - | DB175F-4AS | 0-175 | 2 | 580 | 12.7 | 1.0 |
| DB280N5-1/2-S | 35-280 | 5 | DB2800M5-1/2-S | 3.5-28 | 0.5 | - | - | - | 690 | 12.7 | 1.65 |
| DB280N5-S | 35-280 | 5 | DB28000M5-S | 3.5-28 | 0.5 | DB250F-6AS | 0-250 | 5 | 690 | 19.0 | 1.65 |
| DB420N-S | 40-420 | 5 | DB4200M-S | 4-42 | 0.5 | DB350F-6AS | 0-350 | 5 | 890 | 19.0 | 2.5 |
| DBE560N-S | 50-560 | 5 | DBE5600M-S | 5-56 | 0.5 | - | - | - | 1100 | 19.0 | 4.0 |
| DBE700N-S | 70-700 | 10 | DBE7000M-S | 7-70 | 1 | DB500F-6AS | 0-500 | 10 | 1260 | 19.0 | 5.5 |
| DBE850N-S | 100-850 | 10 | DBE8500M-S | 10-85 | 1 | - | - | - | 1360 | 25.4 | 6.1 |
| DBE1000N-S | 100-1000 | 10 | DBE10000M-S | 10-100 | 1 | DB800F-8AS | 0-800 | 10 | 1490 | 25.4 | 6.4 |
| DBE1400N-S | 200-1400 | 20 | DBE14000M-S | 20-140 | 2 | DB1000F-8AS | 0-1000 | 10 | 1740 | 25.4 | 8.6 |
| DBE2100N-S | 200-2100 | 20 | DBE21000M-S | 20-210 | 2 | DB1500F-8AS | 0-1500 | 20 | 2140 | 25.4 | 12.8 |
| DBE2800N5-S | 350-2800 | 50 | DBE28000M5-S | 35-280 | 5 | DB2000F-12AS | 0-2000 | 20 | 2380 | 38.1 | 16.8 |
| kN•m | kN•m | ||||||||||
| DBR4500N-S | 0.5-4.5 | 0.05 | 45000DBR-S | 50-450 | 5 | DB3000F-12AS | 0-3000 | 50 | 1285 | 38.1 | 26.5 |
| DBR6000N-S | 0.6-6 | 0.1 | 60000DBR-S | 60-600 | 5 | - | - | - | 1585 | 44.5 | 27.5 |
Note. 1. "Without memory pointer" models are available. Remove "-S" from the model name when ordering. EX. DB100N
2. DBR models require winch or mechanical loading device.
3. DBR Models are supplied upon request.
4. For models having over 25.4mm square drive, use with a through-hole socket.
5. Accuracy of American models is warranted from 20% of max. torque.
6. DB1.5N4, DB3N4 and the equivalent metric models, American unit models come with ISO6789-2003 certificate
Memory pointer, Red color point
■ DB Optional Accessories
Carrying case
| Part # | Applicable Model Dimension [mm] | Weight [kg] |
| 846 | DB100N-S, CDB100Nx15D-S or less H170xW500xD100 | 1.0 |
| 847 | DB280N-S, CDB280Nx22D-S or less H170xW740xD100 | 1.6 |
| แบรนด์สินค้า | TOHNICHI |
|---|
