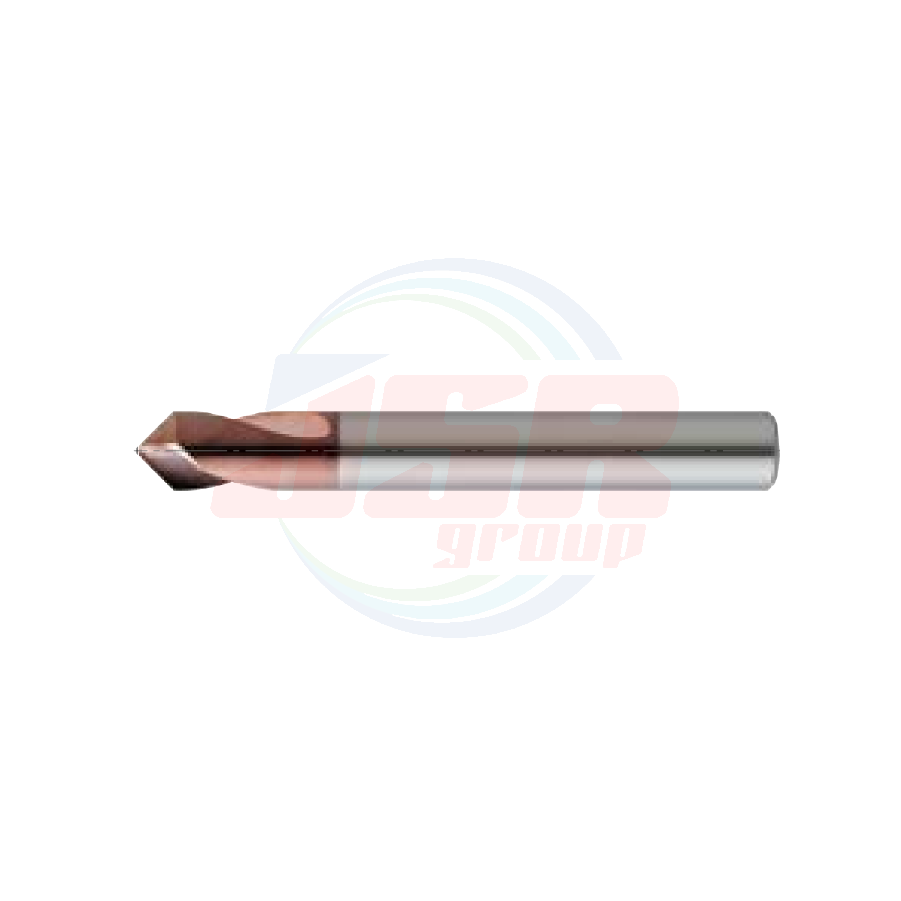

DN2HC-ATH | THREADING TOOLS | MOLDINO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,635.41
พร้อมส่ง
SKU
DN2HC-ATH
| แบรนด์สินค้า | MOLDINO |
|---|---|
| โมเดล | DN2HC-ATH |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
使用可能長さUsable length (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 直径 Tool dia. |
先端径 Tip dia. |
先端長 Tip length |
溝長 Flute length |
全長 Overall length |
シャンク径 Shank |
最大使用 可能深さ Max available depth |
Max C chamfering length |
C面取り 有効直径 C chamfering pitch diameter |
||
| DC | DCN | PL | LCF | OAL | DCONMS | LU | ||||
| DN2HC0300-ATH | ● | 3 | 0.7 | 1.3 | 9 | 45 | 3 | 1.2 | 1.1 | More than 0.75 but less than 3 |
| DN2HC0400-ATH | ● | 4 | 0.95 | 1.7 | 12 | 50 | 4 | 1.6 | 1.5 | More than 1 but less than 4 |
| DN2HC0600-ATH | ● | 6 | 1.4 | 2.6 | 15 | 66 | 6 | 2.4 | 2.2 | More than 1.5 but less than 6 |
| DN2HC0800-ATH | ● | 8 | 1.9 | 3.4 | 20 | 74 | 8 | 3.2 | 3 | More than 2 but less than 8 |
| DN2HC1000-ATH | ● | 10 | 2.4 | 4.3 | 24 | 84 | 10 | 4.1 | 3.7 | More than 2.5 but less than 10 |
| DN2HC1200-ATH | ● | 12 | 2.9 | 5.1 | 28 | 95 | 12 | 4.9 | 4.5 | More than 3 but less than 12 |
| DN2HC1600-ATH | ● | 16 | 3.9 | 6.8 | 35 | 113 | 16 | 6.6 | 6 | More than 4 but less than 16 |
