| ±0.02 | ||
| แบรนด์สินค้า | MOLDINO |
|---|---|

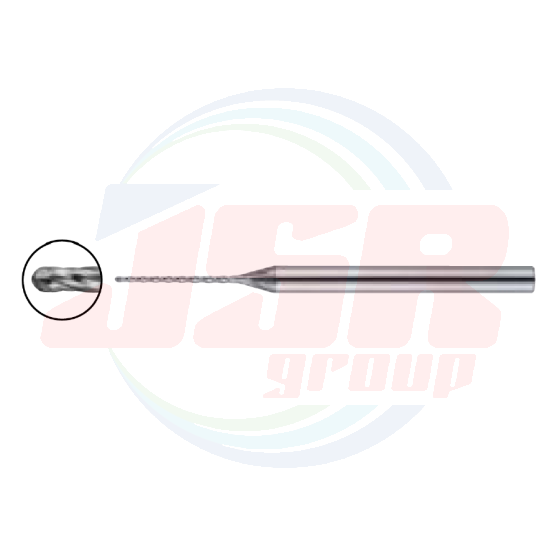

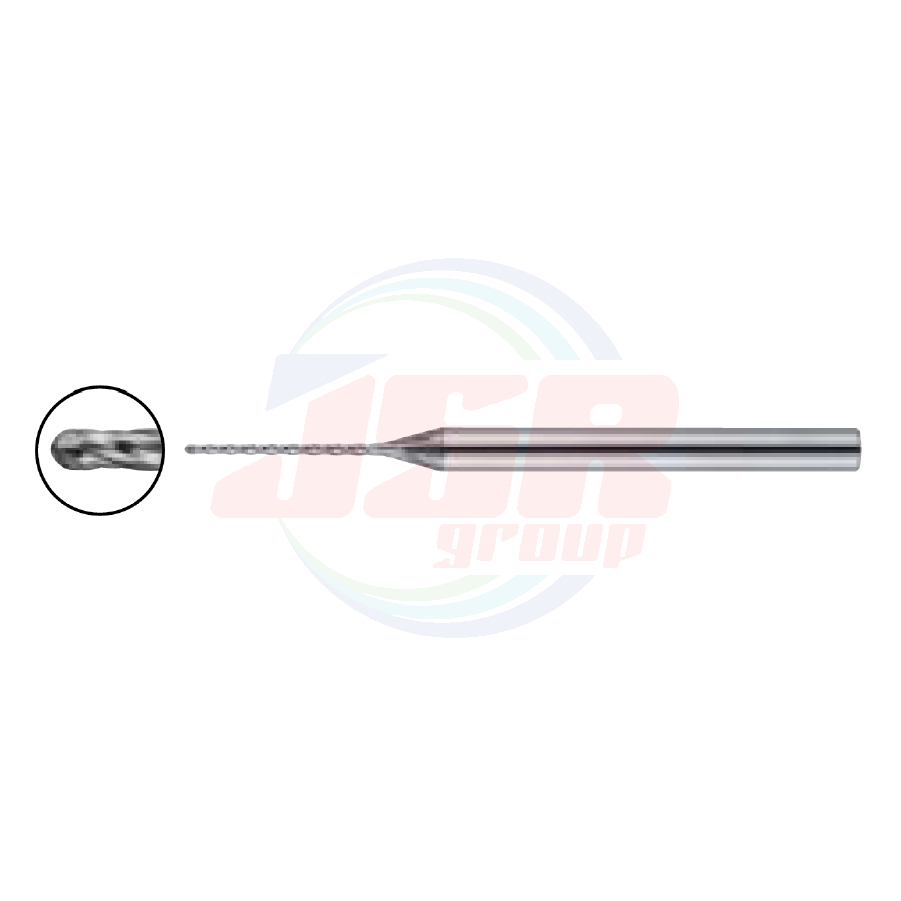

| โมเดล | ECRB-PN |
| Order No. | ECRB-PN |
|
商品コード |
在庫Stock |
寸 法 Size(mm) |
刃部テーパ半角 |
|||||
|---|---|---|---|---|---|---|---|---|
| ボール半径 Ball radius |
外径 Tool dai |
大端径 |
刃長 Flute length |
シャンク径 Shank dai |
シャンク径 Shank dai |
|||

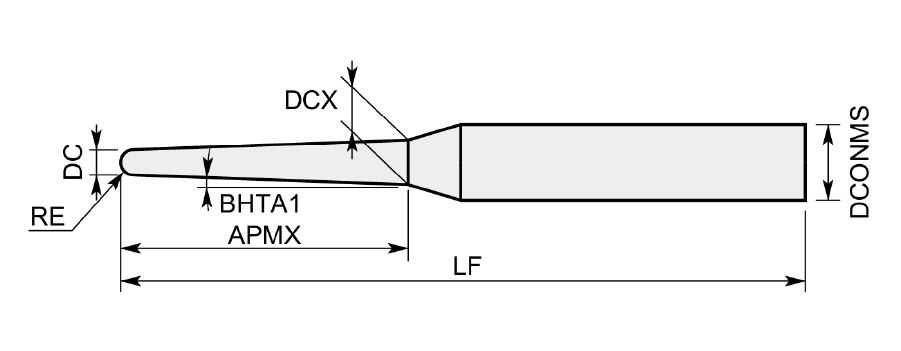

| RE | DC | DCX | APMX | DCONMS | DCONMS | |||
| ECRB0809-6-PN | ● | 0.4 | 0.8 | 0.9 | 6 | 4 | 60 | (0.51) |
| ECRB0809-8-PN | ● | 0.4 | 0.8 | 0.9 | 8 | 4 | 60 | (0.38) |
| ECRB0809-10-PN | ● | 0.4 | 0.8 | 0.9 | 10 | 4 | 60 | (0.30) |
| ECRB0809-12-PN | ● | 0.4 | 0.8 | 0.9 | 12 | 4 | 60 | (0.25) |
| ECRB0810-6-PN | ● | 0.4 | 0.8 | 1 | 6 | 4 | 60 | (1.02) |
| ECRB0810-8-PN | ● | 0.4 | 0.8 | 1 | 8 | 4 | 60 | (0.75) |
| ECRB0810-10-PN | ● | 0.4 | 0.8 | 1 | 10 | 4 | 60 | (0.60) |
| ECRB0810-12-PN | ● | 0.4 | 0.8 | 1 | 12 | 4 | 60 | (0.49) |
| ECRB1012-6-PN | ● | 0.5 | 1 | 1.2 | 6 | 4 | 60 | (1.04) |
| ECRB1012-8-PN | ● | 0.5 | 1 | 1.2 | 8 | 4 | 60 | (0.76) |
| ECRB1012-10-PN | ● | 0.5 | 1 | 1.2 | 10 | 4 | 60 | (0.60) |
| ECRB1012-12-PN | ● | 0.5 | 1 | 1.2 | 12 | 4 | 60 | (0.50) |
| ECRB1012-14-PN | ● | 0.5 | 1 | 1.2 | 14 | 4 | 60 | (0.42) |
| ECRB1012-16-PN | ● | 0.5 | 1 | 1.2 | 16 | 4 | 60 | (0.37) |
