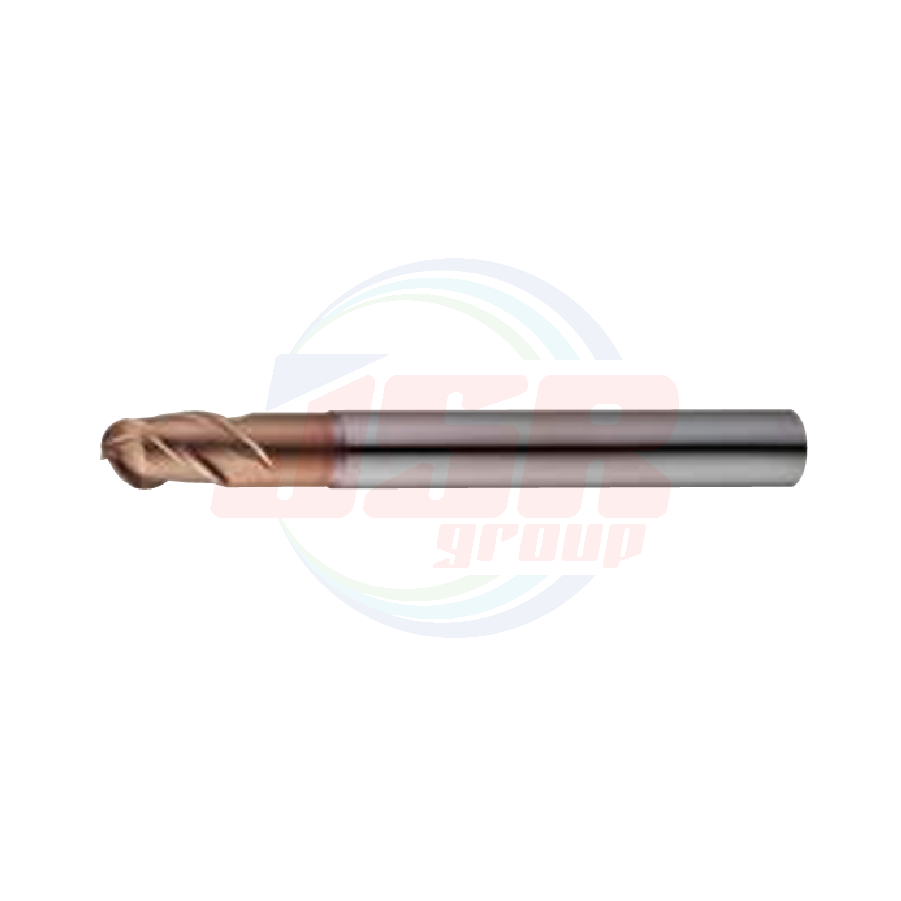

EMBE-ATH | CARBIDE BALL END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,975.67
พร้อมส่ง
SKU
HIT-EMBE-ATH
High helix ball flute shape that reduces cutting force and improves chip removal.
| RE0.5〜RE1.75 | : | ±0.005 |
| RE2〜RE3 | : | ±0.007 |
| RE4〜RE6 | : | ±0.010 |
| RE8〜RE10 | : | ±0.015 |
| RE0.5〜RE1.75 | : | 0〜−0.010 |
| RE2〜RE3 | : | 0〜−0.014 |
| RE4〜RE6 | : | 0〜−0.020 |
| RE8〜RE10 | : | 0〜−0.030 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| โมเดล | EMBE-ATH |
|
商品コード |
在庫Stock |
寸 法 Size(mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| ボール半径 Ball radius |
外径 Tool dai |
刃長 |
首下長 Under neck length |
首径 Neck dai |
全長 Overall length |
シャンク径 Shank dai |
形状 |
||
| RE | DC | APMX | LU | DN | LF | DCONMS | |||
| EMBE3010-S4-ATH | ● | 0.5 | 1 | 1.5 | 3 | 0.95 | 50 | 4 | A |
| EMBE3010-S6-ATH | ● | 1.5 | 3 | 0.95 | 50 | 6 | A | ||
| EMBE3015-S4-ATH | ● | 0.75 | 1.5 | 2.5 | 4.5 | 1.43 | 50 | 4 | A |
| EMBE3015-S6-ATH | ● | 2.5 | 4.5 | 1.43 | 50 | 6 | A | ||
| EMBE3020-S4-ATH | ● | 1 | 2 | 3 | 6 | 1.9 | 50 | 4 | A |
| EMBE3020-S6-ATH | ● | 3 | 6 | 1.9 | 50 | 6 | A | ||
| EMBE3025-S4-ATH | ● | 1.25 | 2.5 | 4 | 7.5 | 2.38 | 50 | 4 | A |
| EMBE3025-S6-ATH | ● | 4 | 7.5 | 2.38 | 50 | 6 | A | ||
| EMBE3030-S4-ATH | ● | 1.5 | 3 | 4.5 | 9 | 2.9 | 70 | 4 | A |
| EMBE3030-S6-ATH | ● | 4.5 | 9 | 2.9 | 70 | 6 | A | ||
| EMBE3035-S4-ATH | ● | 1.75 | 3.5 | 5.5 | 10.5 | 3.4 | 70 | 4 | A |
| EMBE3035-S6-ATH | ● | 5.5 | 10.5 | 3.4 | 70 | 6 | A | ||
| EMBE3040-S4-ATH | ● | 2 | 4 | 6 | 12 | 3.9 | 70 | 4 | B |
| EMBE3040-S6-ATH | ● | 6 | 12 | 3.9 | 70 | 6 | A | ||
| EMBE3050-ATH | ● | 2.5 | 5 | 7.5 | 15 | 4.7 | 80 | 6 | A |
| EMBE3060-ATH | ● | 3 | 6 | 9 | 18 | 5.7 | 90 | 6 | B |
| EMBE3080-ATH | ● | 4 | 8 | 12 | 24 | 7.6 | 100 | 8 | B |
| EMBE3100-ATH | ● | 5 | 10 | 15 | 30 | 9.5 | 100 | 10 | B |
| EMBE3120-ATH | ● | 6 | 12 | 18 | 36 | 11.5 | 110 | 12 | B |
| EMBE3160-ATH | ● | 8 | 16 | 24 | 48 | 15 | 140 | 16 | B |
| EMBE3200-ATH | ● | 10 | 20 | 30 | 60 | 19 | 160 | 20 | B |
