EMXN-TH | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,372.90
พร้อมส่ง
SKU
EMXN-TH
Achieves amazing machining efficiency with high cutting depth and high feed rate.
| 0~-0.03 |
  |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EMXN-TH |
| Order No. | EMXN-TH |
|
商品コード
|
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |
||||
|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
近似R※ Approx radius |
|||

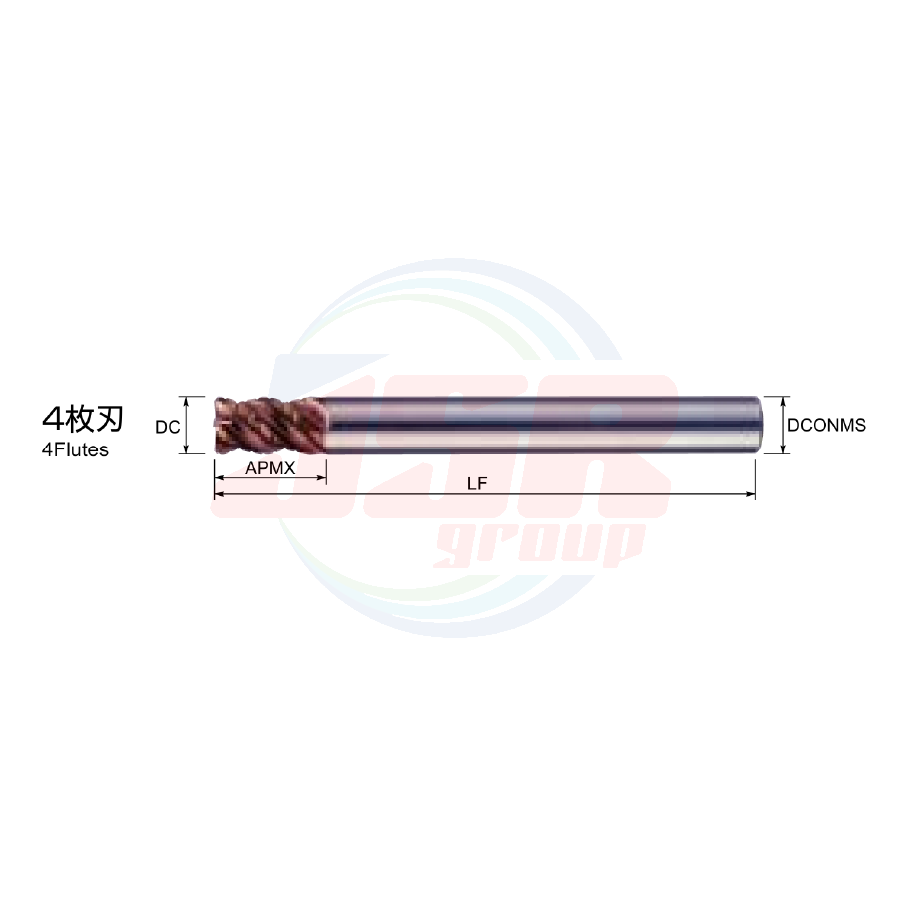

| DC | APMX | LF | DCONMS | ||||
| EMXN4060-TH | ● | 6 | 9 | 60 | 6 | 0.4 | 4 |
| EMXN4080-TH | ● | 8 | 12 | 75 | 8 | 0.5 | 4 |
| EMXN4100-TH | ● | 10 | 15 | 80 | 10 | 0.5 | 4 |
| EMXN4120-TH | ● | 12 | 18 | 100 | 12 | 0.5 | 4 |
| EMXN4160-TH | ● | 16 | 24 | 110 | 16 | 0.7 | 4 |
| EMXN4200-TH | ● | 20 | 30 | 125 | 20 | 0.7 | 4 |
※Special geometry is adopted on tip of square type, for chipping resistance. please set up tool corner R with approx R for both type.
