EPBPN | CARBIDE BALL END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,939.29
พร้อมส่ง
SKU
EPBPN
| ±0.01 | ||
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Order No. | EPBPN |
| โมเดล | EPBPN |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ボール半径 Ball radius |
外径 Tool dia. |
部首角度 Neck angle |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
首下長 Under neck length |
首下平行長 Under neck parallel length |
首元径 Neck dia. |
||

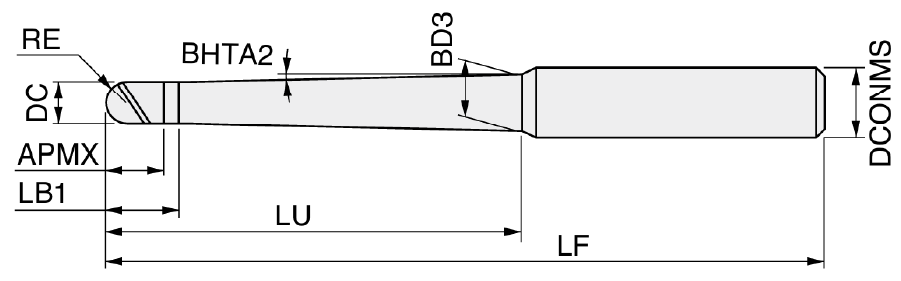

| RE | DC | BHTA2 | APMX | LF | DCONMS | LU | LB1 | BD3 | ||
| EPBPN2010-15 | ● | 0.5 | 1 | 1°30′ | 2.5 | 60 | 6 | 20 | 4 | 1.8 |
| EPBPN2010-30 | ● | 3° | 2.5 | 80 | 6 | 40 | 4 | 4.8 | ||
| EPBPN2010-50 | ● | 5° | 2.5 | 60 | 6 | 20 | 4 | 3.8 | ||
| EPBPN2020-15 | ● | 1 | 2 | 1°30′ | 5 | 60 | 6 | 20 | 7 | 2.7 |
| EPBPN2020-30 | ● | 3° | 5 | 80 | 6 | 40 | 7 | 5.5 | ||
| EPBPN2020-50 | ● | 5° | 5 | 60 | 6 | 20 | 7 | 4.3 | ||
| EPBPN2030-15 | ● | 1.5 | 3 | 1°30′ | 8 | 90 | 6 | 50 | 10 | 5.1 |
| EPBPN2030-30 | ● | 3° | 8 | 70 | 6 | 30 | 10 | 5.1 | ||
| EPBPN2040-15 | ● | 2 | 4 | 1°30′ | 8 | 90 | 6 | 48.2 | 10 | 6 |
| EPBPN2040-30 | ● | 3° | 8 | 70 | 6 | 29.1 | 10 | 6 | ||
| EPBPN2050-15 | ● | 2.5 | 5 | 1°30′ | 10 | 110 | 8 | 60 | 12 | 7.5 |
| EPBPN2050-30 | ● | 3° | 10 | 90 | 8 | 40.6 | 12 | 8 | ||
| EPBPN2060-15 | ● | 3 | 6 | 1°30′ | 12 | 110 | 8 | 52.2 | 14 | 8 |
| EPBPN2060-30 | ● | 3° | 12 | 90 | 8 | 33.1 | 14 | 8 | ||
| EPBPN2070-15 | ● | 3.5 | 7 | 1°30′ | 14 | 120 | 10 | 60 | 16 | 9.3 |
| EPBPN2070-30 | ● | 3° | 14 | 100 | 10 | 40 | 16 | 9.5 | ||
| EPBPN2080-15 | ● | 4 | 8 | 1°30′ | 14 | 120 | 10 | 54.2 | 16 | 10 |
| EPBPN2080-30 | ● | 3° | 14 | 100 | 10 | 35.1 | 16 | 10 | ||
| EPBPN2100-15 | ● | 5 | 10 | 1°30′ | 18 | 130 | 12 | 58.2 | 20 | 12 |
| EPBPN2100-30 | ● | 3° | 18 | 110 | 12 | 39.1 | 20 | 12 | ||
| EPBPN2120-15 | ● | 6 | 12 | 1°30′ | 22 | 160 | 16 | 80 | 25 | 14.9 |
| EPBPN2120-30 | ● | 3° | 22 | 140 | 16 | 63.2 | 25 | 16 | ||
