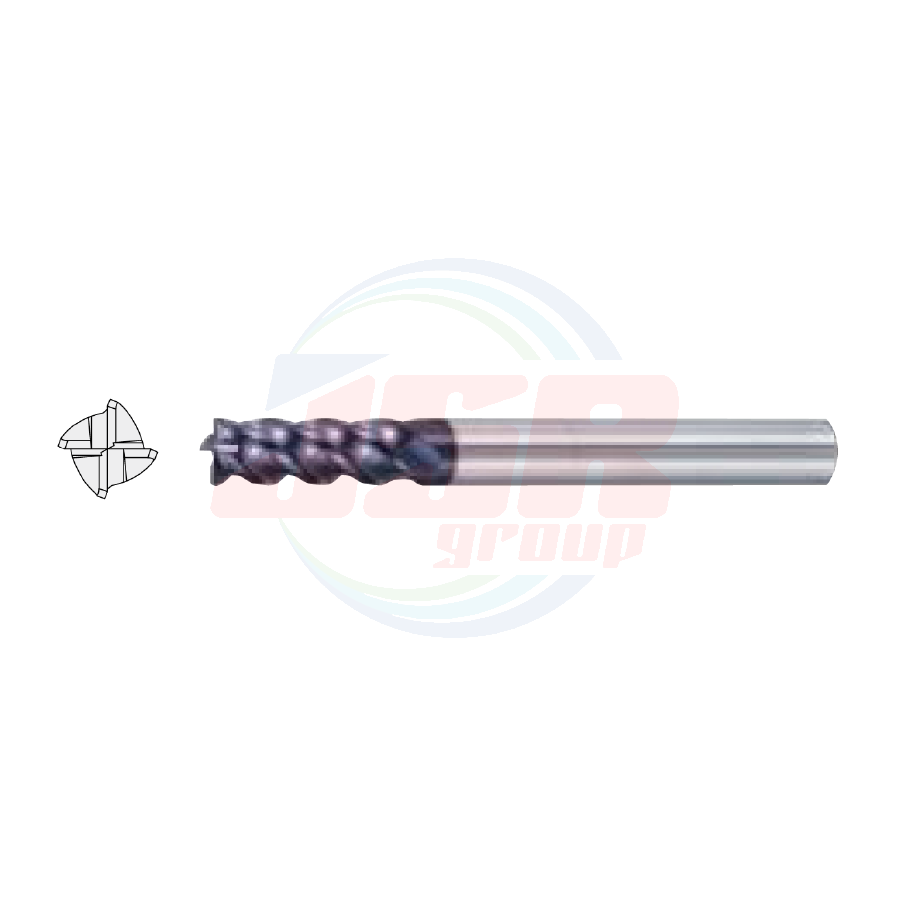

EPP | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 0.00
พร้อมส่ง
SKU
EPP
Excellent chip removal enables high efficiency.
| Ø2~Ø6 | : | 0~-0.015 |
| Ø6.5~Ø25 | : | 0~-0.02 |
 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EPP |
| Order No. | EPP |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
|||
|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
||
| EPP4020 | □ | 2 | 6 | 60 | 6 |
| EPP4025 | □ | 2.5 | 8 | 60 | 6 |
| EPP4030 | ● | 3 | 8 | 60 | 6 |
| EPP4035 | □ | 3.5 | 10 | 60 | 6 |
| EPP4040 | ● | 4 | 11 | 60 | 6 |
| EPP4045 | □ | 4.5 | 11 | 60 | 6 |
| EPP4050 | ● | 5 | 13 | 60 | 6 |
| EPP4055 | □ | 5.5 | 13 | 60 | 6 |
| EPP4060 | ● | 6 | 13 | 60 | 6 |
| EPP4065 | □ | 6.5 | 16 | 70 | 8 |
| EPP4070 | ● | 7 | 16 | 70 | 8 |
| EPP4075 | □ | 7.5 | 16 | 70 | 8 |
| EPP4080 | ● | 8 | 19 | 75 | 8 |
| EPP4085 | □ | 8.5 | 19 | 80 | 10 |
| EPP4090 | ● | 9 | 19 | 80 | 10 |
| EPP4095 | □ | 9.5 | 19 | 80 | 10 |
| EPP4100 | ● | 10 | 22 | 80 | 10 |
| EPP4110 | ● | 11 | 22 | 100 | 12 |
| EPP4120 | ● | 12 | 26 | 100 | 12 |
| EPP4130 | ● | 13 | 26 | 100 | 12 |
| EPP4140 | ● | 14 | 26 | 110 | 16 |
| EPP4150 | ● | 15 | 26 | 110 | 16 |
| EPP4160 | ● | 16 | 32 | 110 | 16 |
| EPP4170 | ● | 17 | 32 | 110 | 16 |
| EPP4180 | ● | 18 | 32 | 125 | 20 |
| EPP4190 | ● | 19 | 32 | 125 | 20 |
| EPP4200 | ● | 20 | 38 | 125 | 20 |
| EPP4210 | □ | 21 | 38 | 125 | 20 |
| EPP4220 | □ | 22 | 38 | 125 | 20 |
| EPP4230 | □ | 23 | 45 | 140 | 25 |
| EPP4240 | □ | 24 | 45 | 140 | 25 |
| EPP4250 | □ | 25 | 63 | 140 | 25 |
