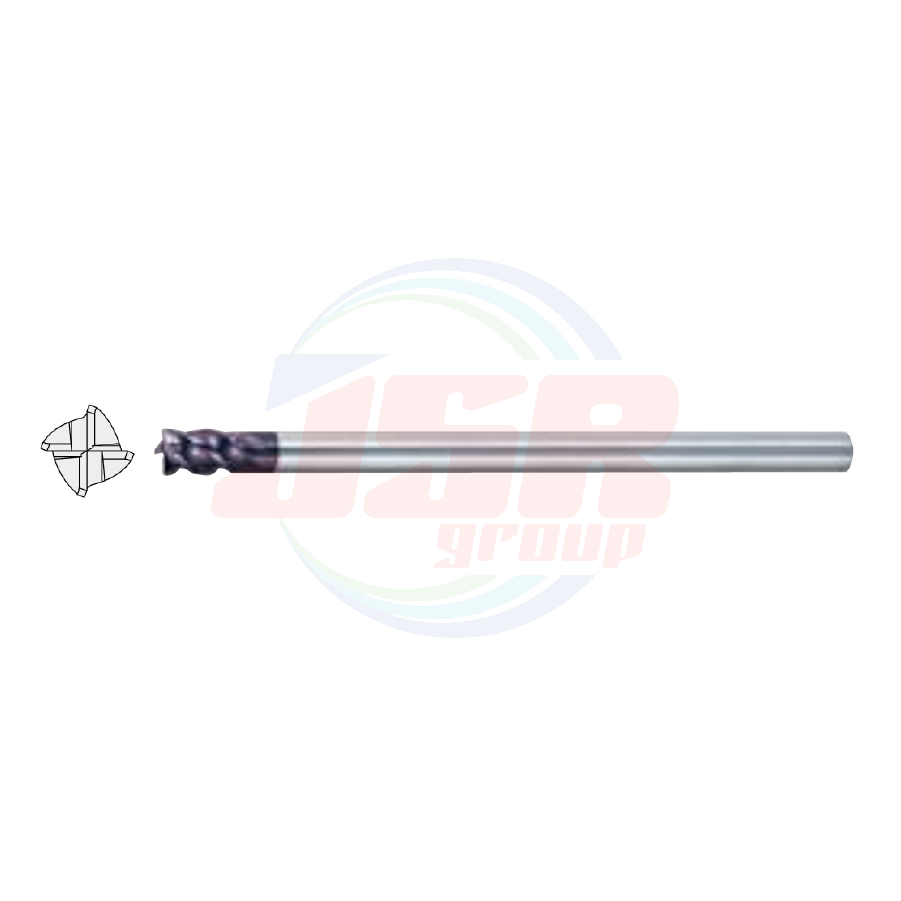

EPPLS-CR | CARBIDE BALL END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,917.76
พร้อมส่ง
SKU
EPPLS-CR
Excellent chip removal enables high efficiency.
| Ø3~Ø6 | : | 0~-0.015 |
| Ø7~Ø17 | : | 0~-0.02 |
 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| โมเดล | EPPLS-CR |
| Order No. | EPPLS-CR |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
形状 Shape |
||||||
|---|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
コーナ半径 Coner radius |
刃長 Flute length |
首径 Neck dia. |
首下長 Under neck length |
全長 Overall length |
シャンク径 Shank dia. |
|||

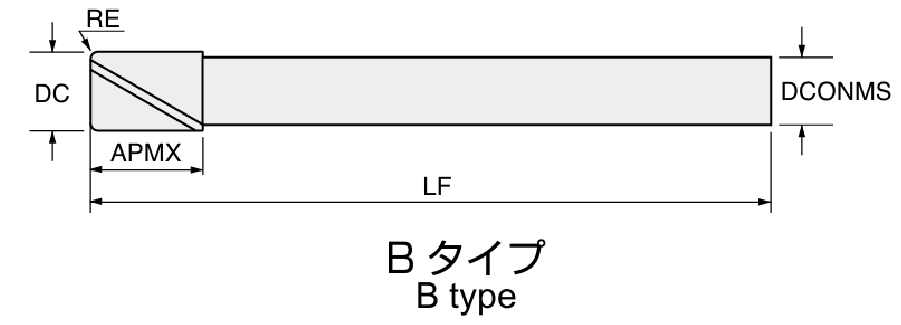

| DC | RE | APMX | DN | LU | LF | DCONMS | |||
| EPPLS4030-02 | ● | 0.2 | 4.5 | 2.9 | 10.5 | 80 | 6 | A | |
| EPPLS4030-05 | ● | 0.5 | 4.5 | 2.9 | 10.5 | 80 | 6 | A | |
| EPPLS4040-02 | ● | 0.2 | 6 | 3.8 | 14 | 80 | 6 | A | |
| EPPLS4040-05 | ● | 0.5 | 6 | 3.8 | 14 | 80 | 6 | A | |
| EPPLS4050-02 | ● | 0.2 | 7.5 | 4.8 | 17.5 | 100 | 6 | A | |
| EPPLS4050-05 | ● | 0.5 | 7.5 | 4.8 | 17.5 | 100 | 6 | A | |
| EPPLS4060-03 | ● | 0.3 | 9 | - | - | 120 | 5 | B | |
| EPPLS4060-05 | ● | 0.5 | 9 | - | - | 120 | 5 | B | |
| EPPLS4060-10 | ● | 1 | 9 | - | - | 120 | 5 | B | |
| EPPLS4070-03 | ● | 0.3 | 9 | - | - | 120 | 6 | B | |
| EPPLS4070-05 | ● | 0.5 | 9 | - | - | 120 | 6 | B | |
| EPPLS4070-10 | ● | 1 | 9 | - | - | 120 | 6 | B | |
| EPPLS4080-05 | ● | 0.5 | 12 | - | - | 135 | 7 | B | |
| EPPLS4080-10 | ● | 1 | 12 | - | - | 135 | 7 | B | |
| EPPLS4080-15 | ● | 1.5 | 12 | - | - | 135 | 7 | B | |
| EPPLS4090-05 | ● | 0.5 | 12 | - | - | 135 | 8 | B | |
| EPPLS4090-10 | ● | 1 | 12 | - | - | 135 | 8 | B | |
| EPPLS4090-15 | ● | 1.5 | 12 | - | - | 135 | 8 | B | |
| EPPLS4100-05 | ● | 0.5 | 15 | - | - | 150 | 9 | B | |
| EPPLS4100-10 | ● | 1 | 15 | - | - | 150 | 9 | B | |
| EPPLS4100-15 | ● | 1.5 | 15 | - | - | 150 | 9 | B | |
| EPPLS4110-05 | ● | 0.5 | 15 | - | - | 150 | 10 | B | |
| EPPLS4110-10 | ● | 1 | 15 | - | - | 150 | 10 | B | |
| EPPLS4110-15 | ● | 1.5 | 15 | - | - | 150 | 10 | B | |
| EPPLS4120-05 | ● | 0.5 | 18 | - | - | 160 | 11 | B | |
| EPPLS4120-10 | ● | 1 | 18 | - | - | 160 | 11 | B | |
| EPPLS4120-15 | ● | 1.5 | 18 | - | - | 160 | 11 | B | |
| EPPLS4120-20 | ● | 2 | 18 | - | - | 160 | 11 | B | |
| EPPLS4130-05 | ● | 0.5 | 18 | - | - | 160 | 12 | B | |
| EPPLS4130-10 | ● | 1 | 18 | - | - | 160 | 12 | B | |
| EPPLS4130-15 | ● | 1.5 | 18 | - | - | 160 | 12 | B | |
| EPPLS4130-20 | ● | 2 | 18 | - | - | 160 | 12 | B | |
| EPPLS4160-10 | ● | 1 | 24 | - | - | 180 | 15 | B | |
| EPPLS4160-15 | ● | 1.5 | 24 | - | - | 180 | 15 | B | |
| EPPLS4160-20 | ● | 2 | 24 | - | - | 180 | 15 | B | |
| EPPLS4170-10 | ● | 1 | 24 | - | - | 180 | 16 | B | |
| EPPLS4170-15 | ● | 1.5 | 24 | - | - | 180 | 16 | B | |
| EPPLS4170-20 | ● | 2 | 24 | - | - | 180 | 16 | B | |
