EPPLS | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,004.67
พร้อมส่ง
SKU
EPPLS
Excellent chip removal enables high efficiency.
| Ø3~Ø6 | : | 0~-0.015 |
| Ø7~Ø20 | : | 0~-0.02 |
 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EPPLS |
| Order No. | EPPLS |
|
商品コード
|
在庫 Stock |
寸 法 Size(mm) |

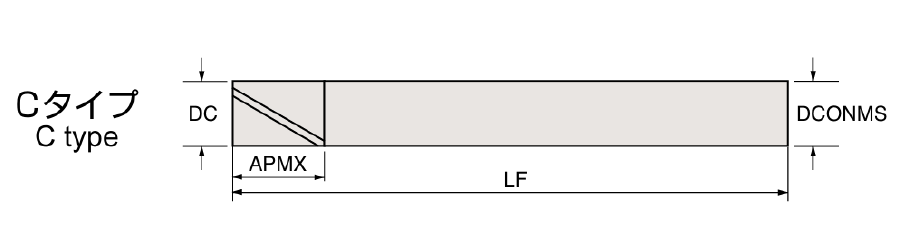

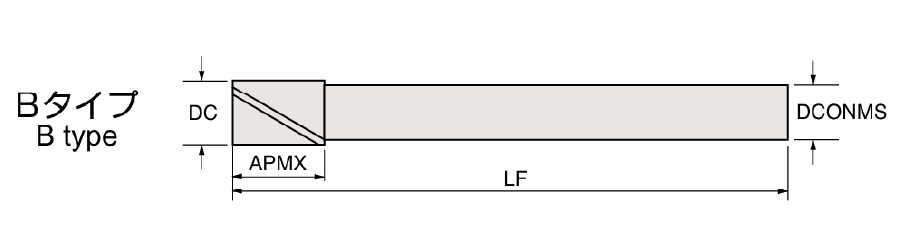

形状 Shape |
|||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首径 Neck dia. |
首下長 Under neck length. |
全長 Overall length |
シャンク径 Shank dia. |
|||
| DC | APMX | DN | LU | LF | DCONMS | |||
| EPPLS4030 | ● | 3 | 4.5 | 2.9 | 10.5 | 80 | 6 | A |
| EPPLS4040 | ● | 4 | 6 | 3.8 | 14 | 80 | 6 | A |
| EPPLS4050 | ● | 5 | 7.5 | 4.8 | 17.5 | 100 | 6 | A |
| EPPLS4060 | ● | 6 | 9 | - | - | 120 | 5 | B |
| EPPLS4070 | ● | 7 | 9 | - | - | 120 | 6 | B |
| EPPLS4080 | ● | 8 | 12 | - | - | 135 | 7 | B |
| EPPLS4090 | ● | 9 | 12 | - | - | 135 | 8 | B |
| EPPLS4100 | ● | 10 | 15 | - | - | 150 | 9 | B |
| EPPLS4110 | ● | 11 | 15 | - | - | 150 | 10 | B |
| EPPLS4120 | ● | 12 | 18 | - | - | 160 | 11 | B |
| EPPLS4130 | ● | 13 | 18 | - | - | 160 | 12 | B |
| EPPLS4140 | □ | 14 | 18 | - | - | 160 | 13 | B |
| EPPLS4150 | □ | 15 | 22 | - | - | 180 | 14 | B |
| EPPLS4160 | ● | 16 | 24 | - | - | 180 | 15 | B |
| EPPLS4170 | ● | 17 | 24 | - | - | 180 | 16 | B |
| EPPLS4180 | □ | 18 | 27 | - | - | 180 | 16 | B |
| EPPLS4190 | □ | 19 | 30 | - | - | 200 | 18 | B |
| EPPLS4200 | □ | 20 | 30 | - | - | 200 | 20 | C |
