EPSM-5DC-CR-PN | CARBIDE BALL END MILL | MOLDINO

MOLDINO
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 2,609.35
พร้อมส่ง
SKU
EPSM-5DC-CR-PN
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ
Multi-purpose for roughing to finishing of stainless steel, carbon steel, alloy steel, etc.
EPSM-5DC-CR-PN | CARBIDE BALL END MILL | MOLDINO
EPSM-5DC-CR-PN | CARBIDE BALL END MILL | MOLDINO




Ø1~Ø6 : 0~-0.015
Ø7~Ø20 : 0~-0.02











More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MOLDINO
โมเดล EPSM-5DC-CR-PN
Order No. EPSM-5DC-CR-PN
Dimension




商品コード
Item Code

 在庫

Stock

 寸　法 Size(mm)
 刃数
No. of
flutes		 首形状
Shape
外径
Tool
 dia.		 コーナ半径
Coner
 radius		 刃長
Flute length		 首下長
Under neck length		 首径
Neck dia.		 全長
Overall
 length		 シャンク径
Shank
 dia.

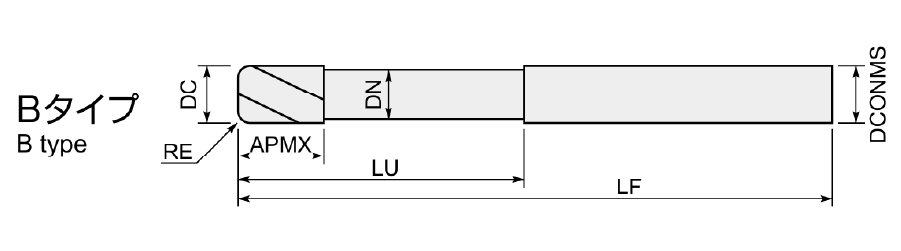

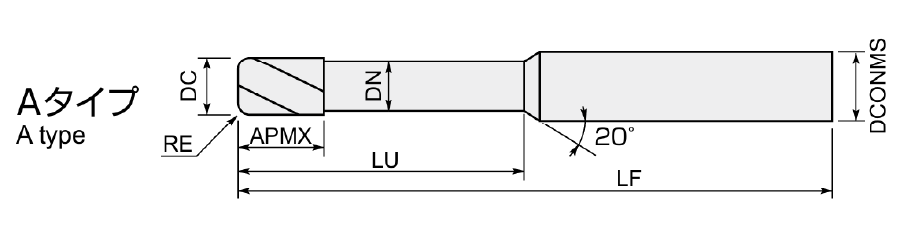

DC RE APMX LU DN LF DCONMS
EPSM4010-5-R0.1-PN ● 1 0.1 1.5 5 0.96 68 6 4 A
EPSM4020-10-R0.1-PN ● 2 0.1 3 10 1.92 68 6 4 A
EPSM4020-10-R0.2-PN ●   0.2 3 10 1.92 68 6 4 A
EPSM4030-15-R0.2-PN ● 3 0.2 4.5 15 2.88 68 6 4 A
EPSM4030-15-R0.5-PN ●   0.5 4.5 15 2.88 68 6 4 A
EPSM4040-20-R0.2-PN ● 4 0.2 6 20 3.7 68 6 4 A
EPSM4040-20-R0.5-PN ●   0.5 6 20 3.7 68 6 4 A
EPSM4040-20-R1.0-PN ●   1 6 20 3.7 68 6 4 A
EPSM4050-25-R0.2-PN ● 5 0.2 7.5 25 4.6 68 6 4 A
EPSM4050-25-R0.5-PN ●   0.5 7.5 25 4.6 68 6 4 A
EPSM4050-25-R1.0-PN ●   1 7.5 25 4.6 68 6 4 A
EPSM4060-30-R0.3-PN ● 6 0.3 9 30 5.5 68 6 4 B
EPSM4060-30-R0.5-PN ●   0.5 9 30 5.5 68 6 4 B
EPSM4060-30-R1.0-PN ●   1 9 30 5.5 68 6 4 B
EPSM4060-30-R1.5-PN ●   1.5 9 30 5.5 68 6 4 B
EPSM4070-35-R0.3-PN ● 7 0.3 10.5 35 6.4 80 8 4 A
EPSM4070-35-R0.5-PN ●   0.5 10.5 35 6.4 80 8 4 A
EPSM4070-35-R1.0-PN ●   1 10.5 35 6.4 80 8 4 A
EPSM4080-40-R0.3-PN ● 8 0.3 12 40 7.3 80 8 4 B
EPSM4080-40-R0.5-PN ●   0.5 12 40 7.3 80 8 4 B
EPSM4080-40-R1.0-PN ●   1 12 40 7.3 80 8 4 B
EPSM4080-40-R1.5-PN ●   1.5 12 40 7.3 80 8 4 B
EPSM4080-40-R2.0-PN ●   2 12 40 7.3 80 8 4 B
EPSM4090-45-R0.3-PN ● 9 0.3 13.5 45 8.3 94 10 4 A
EPSM4090-45-R0.5-PN ●   0.5 13.5 45 8.3 94 10 4 A
EPSM4090-45-R1.0-PN ●   1 13.5 45 8.3 94 10 4 A
EPSM4100-50-R0.3-PN ● 10 0.3 15 50 9.1 94 10 4 B
EPSM4100-50-R0.5-PN ●   0.5 15 50 9.1 94 10 4 B
EPSM4100-50-R1.0-PN ●   1 15 50 9.1 94 10 4 B
EPSM4100-50-R1.5-PN ●   1.5 15 50 9.1 94 10 4 B
EPSM4100-50-R2.0-PN ●   2 15 50 9.1 94 10 4 B
EPSM4110-55-R0.3-PN ● 11 0.3 16.5 55 10.2 110 12 4 A
EPSM4110-55-R0.5-PN ●   0.5 16.5 55 10.2 110 12 4 A
EPSM4110-55-R1.0-PN ●   1 16.5 55 10.2 110 12 4 A
EPSM4120-60-R0.3-PN ● 12 0.3 18 60 11 110 12 4 B
EPSM4120-60-R0.5-PN ●   0.5 18 60 11 110 12 4 B
EPSM4120-60-R1.0-PN ●   1 18 60 11 110 12 4 B
EPSM4120-60-R1.5-PN ●   1.5 18 60 11 110 12 4 B
EPSM4120-60-R2.0-PN ●   2 18 60 11 110 12 4 B
EPSM4120-60-R2.5-PN ●   2.5 18 60 11 110 12 4 B
EPSM4120-60-R3.0-PN ●   3 18 60 11 110 12 4 B
EPSM4130-65-R0.5-PN ● 13 0.5 19.5 65 11.7 125 16 4 A
EPSM4130-65-R1.0-PN ●   1 19.5 65 11.7 125 16 4 A
EPSM4130-65-R1.5-PN ●   1.5 19.5 65 11.7 125 16 4 A
EPSM4130-65-R2.0-PN ●   2 19.5 65 11.7 125 16 4 A
EPSM4130-65-R3.0-PN ●   3 19.5 65 11.7 125 16 4 A
EPSM4140-70-R0.5-PN ● 14 0.5 21 70 12.7 125 16 4 A
EPSM4140-70-R1.0-PN ●   1 21 70 12.7 125 16 4 A
EPSM4140-70-R1.5-PN ●   1.5 21 70 12.7 125 16 4 A
EPSM4140-70-R2.0-PN ●   2 21 70 12.7 125 16 4 A
EPSM4140-70-R3.0-PN ●   3 21 70 12.7 125 16 4 A
EPSM4150-75-R0.5-PN ● 15 0.5 22.5 75 13.6 135 16 4 A
EPSM4150-75-R1.0-PN ●   1 22.5 75 13.6 135 16 4 A
EPSM4150-75-R1.5-PN ●   1.5 22.5 75 13.6 135 16 4 A
EPSM4150-75-R2.0-PN ●   2 22.5 75 13.6 135 16 4 A
EPSM4150-75-R3.0-PN ●   3 22.5 75 13.6 135 16 4 A
EPSM4160-80-R0.5-PN ● 16 0.5 24 80 14.5 135 16 4 B
EPSM4160-80-R1.0-PN ●   1 24 80 14.5 135 16 4 B
EPSM4160-80-R1.5-PN ●   1.5 24 80 14.5 135 16 4 B
EPSM4160-80-R2.0-PN ●   2 24 80 14.5 135 16 4 B
EPSM4160-80-R3.0-PN ●   3 24 80 14.5 135 16 4 B
EPSM4170-85-R0.5-PN ● 17 0.5 25.5 85 15.4 145 20 4 A
EPSM4170-85-R1.0-PN ●   1 25.5 85 15.4 145 20 4 A
EPSM4170-85-R1.5-PN ●   1.5 25.5 85 15.4 145 20 4 A
EPSM4170-85-R2.0-PN ●   2 25.5 85 15.4 145 20 4 A
EPSM4170-85-R3.0-PN ●   3 25.5 85 15.4 145 20 4 A
EPSM4180-90-R0.5-PN ● 18 0.5 27 90 16.3 145 20 4 A
EPSM4180-90-R1.0-PN ●   1 27 90 16.3 145 20 4 A
EPSM4180-90-R1.5-PN ●   1.5 27 90 16.3 145 20 4 A
EPSM4180-90-R2.0-PN ●   2 27 90 16.3 145 20 4 A
EPSM4180-90-R3.0-PN ●   3 27 90 16.3 145 20 4 A
EPSM4190-95-R0.5-PN ● 19 0.5 28.5 95 17.3 155 20 4 A
EPSM4190-95-R1.0-PN ●   1 28.5 95 17.3 155 20 4 A
EPSM4190-95-R1.5-PN ●   1.5 28.5 95 17.3 155 20 4 A
EPSM4190-95-R2.0-PN ●   2 28.5 95 17.3 155 20 4 A
EPSM4190-95-R3.0-PN ●   3 28.5 95 17.3 155 20 4 A
EPSM4200-100-R0.5-PN ● 20 0.5 30 100 18.2 155 20 4 B
EPSM4200-100-R1.0-PN ●   1 30 100 18.2 155 20 4 B
EPSM4200-100-R1.5-PN ●   1.5 30 100 18.2 155 20 4 B
EPSM4200-100-R2.0-PN ●   2 30 100 18.2 155 20 4 B
EPSM4200-100-R3.0-PN ●   3 30 100 18.2 155 20 4 B
EPSM4200-100-R5.0-PN ●   5 30 100 18.2 155 20 4 B
