EPSM-5DC-PN | SQUARE END MILL | MOLDINO

ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 1,810.28

พร้อมส่ง

SKU

EPSM-5DC-PN

Multi-purpose for roughing to finishing of stainless steel, carbon steel, alloy steel, etc.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	MOLDINO
Model Moldino Carbide Square	EPSM-5DC-PN
Order No.	EPSM-5DC-PN

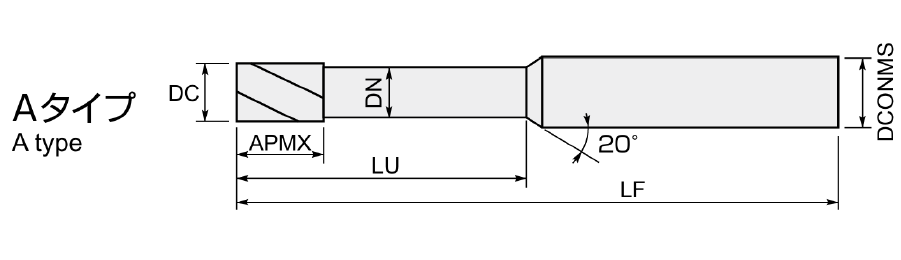

商品コード Item Code	在庫 Stock	寸　法 Size(mm)						刃数 No. of flutes	形状 Shape
		外径 Tool dia.	刃長 Flute length	首下長 Under neck length	首径 Neck dia.	全長 Overall length	シャンク径 Shank dia.
		DC	APMX	LU	DN	LF	DCONMS
EPSM4010-5-PN	●	1	1.5	5	0.96	68	6	4	A
EPSM4015-7.5-PN	□	1.5	2.3	7.5	1.44	68	6	4	A
EPSM4020-10-PN	●	2	3	10	1.92	68	6	4	A
EPSM4025-12.5-PN	□	2.5	3.8	12.5	2.4	68	6	4	A
EPSM4030-15-PN	●	3	4.5	15	2.88	68	6	4	A
EPSM4035-17.5-PN	□	3.5	5.3	17.5	3.35	68	6	4	A
EPSM4040-20-PN	●	4	6	20	3.7	68	6	4	A
EPSM4045-22.5-PN	□	4.5	6.8	22.5	4.15	68	6	4	A
EPSM4050-25-PN	●	5	7.5	25	4.6	68	6	4	A
EPSM4055-27.5-PN	□	5.5	8.3	27.5	5.05	68	6	4	A
EPSM4060-30-PN	●	6	9	30	5.5	68	6	4	B
EPSM4065-32.5-PN	□	6.5	9.8	32.5	5.95	80	8	4	A
EPSM4070-35-PN	●	7	10.5	35	6.4	80	8	4	A
EPSM4075-37.5-PN	□	7.5	11.3	37.5	6.85	80	8	4	A
EPSM4080-40-PN	●	8	12	40	7.3	80	8	4	B
EPSM4085-42.5-PN	□	8.5	12.8	42.5	7.8	94	10	4	A
EPSM4090-45-PN	●	9	13.5	45	8.3	94	10	4	A
EPSM4095-47.5-PN	□	9.5	14.3	47.5	8.7	94	10	4	A
EPSM4100-50-PN	●	10	15	50	9.1	94	10	4	B
EPSM4105-52.5-PN	□	10.5	15.8	52.5	9.65	110	12	4	A
EPSM4110-55-PN	●	11	16.5	55	10.2	110	12	4	A
EPSM4115-57.5-PN	□	11.5	17.3	57.5	10.6	110	12	4	A
EPSM4120-60-PN	●	12	18	60	11	110	12	4	B
EPSM4130-65-PN	□	13	19.5	65	11.7	125	16	4	A
EPSM4140-70-PN	□	14	21	70	12.7	125	16	4	A
EPSM4150-75-PN	□	15	22.5	75	13.6	135	16	4	A
EPSM4160-80-PN	●	16	24	80	14.5	135	16	4	B
EPSM4170-85-PN	□	17	25.5	85	15.4	145	20	4	A
EPSM4180-90-PN	□	18	27	90	16.3	145	20	4	A
EPSM4190-95-PN	□	19	28.5	95	17.3	155	20	4	A
EPSM4200-100-PN	●	20	30	100	18.2	155	20	4	B
