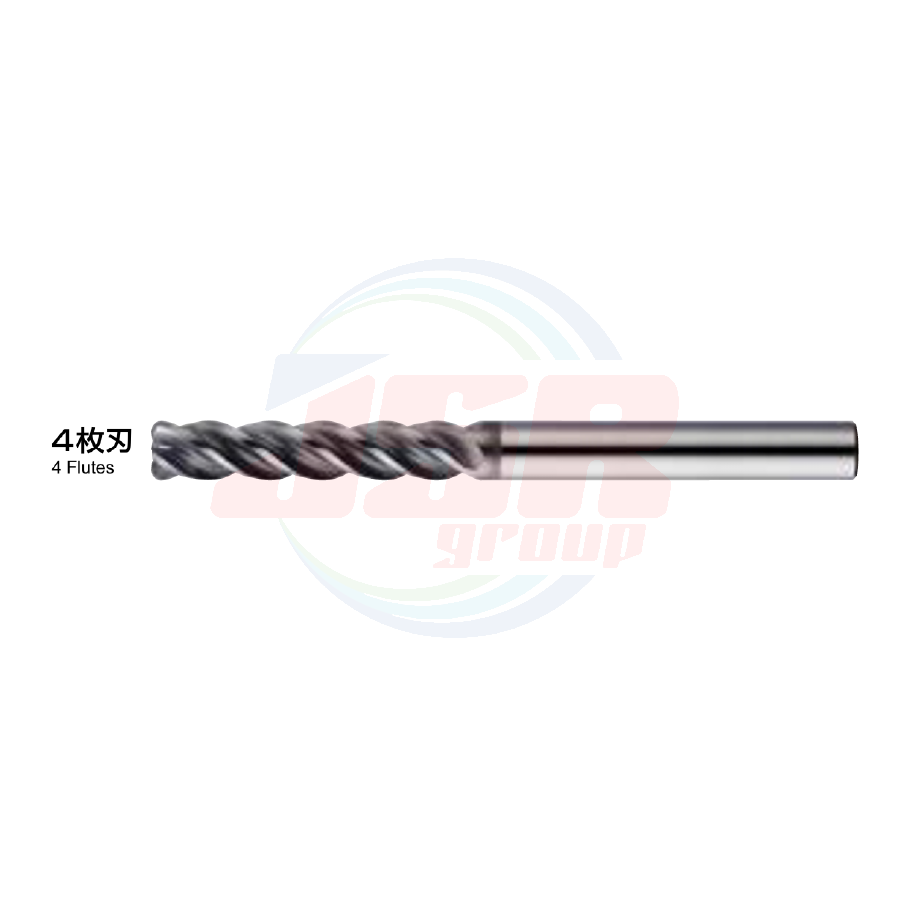

EPSML-CR-PN | CARBIDE BALL END MILL | MOLDINO

ราคาต่ำสุด THB 0.00

พร้อมส่ง

SKU

EPSML-CR-PN

Multi-purpose for roughing to finishing of stainless steel, carbon steel, alloy steel, etc.

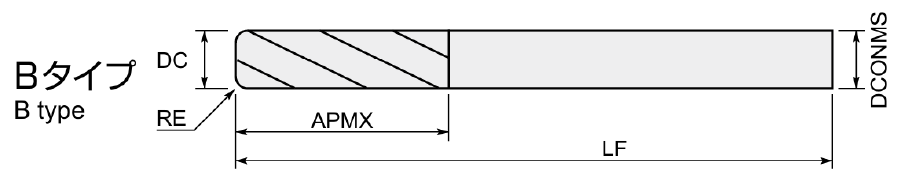

商品コード Item Code	在庫 Stock	寸　法 Size(mm)					刃数 No. of flutes	首形状 Shape
		外径 Tool dia.	コーナ半径 Coner radius	刃長 Flute length	全長 Overall length	シャンク径 Shank dia.
		DC	RE	APMX	LF	DCONMS
EPSML4060-R0.3-PN	□	6	0.3	30	70	6	4	B
EPSML4060-R0.5-PN	□		0.5	30	70	6	4	B
EPSML4060-R1.0-PN	□		1	30	70	6	4	B
EPSML4060-R1.5-PN	□		1.5	30	70	6	4	B
EPSML4080-R0.3-PN	□	8	0.3	40	80	8	4	B
EPSML4080-R0.5-PN	□		0.5	40	80	8	4	B
EPSML4080-R1.0-PN	□		1	40	80	8	4	B
EPSML4080-R1.5-PN	□		1.5	40	80	8	4	B
EPSML4080-R2.0-PN	□		2	40	80	8	4	B
EPSML4100-R0.3-PN	□	10	0.3	50	100	10	4	B
EPSML4100-R0.5-PN	□		0.5	50	100	10	4	B
EPSML4100-R1.0-PN	□		1	50	100	10	4	B
EPSML4100-R1.5-PN	□		1.5	50	100	10	4	B
EPSML4100-R2.0-PN	□		2	50	100	10	4	B
EPSML4120-R0.3-PN	□	12	0.3	60	120	12	4	B
EPSML4120-R0.5-PN	□		0.5	60	120	12	4	B
EPSML4120-R1.0-PN	□		1	60	120	12	4	B
EPSML4120-R1.5-PN	□		1.5	60	120	12	4	B
EPSML4120-R2.0-PN	□		2	60	120	12	4	B
EPSML4120-R2.5-PN	□		2.5	60	120	12	4	B
EPSML4120-R3.0-PN	□		3	60	120	12	4	B
EPSML4160-R0.5-PN	□	16	0.5	80	135	16	4	B
EPSML4160-R1.0-PN	□		1	80	135	16	4	B
EPSML4160-R1.5-PN	□		1.5	80	135	16	4	B
EPSML4160-R2.0-PN	□		2	80	135	16	4	B
EPSML4160-R3.0-PN	□		3	80	135	16	4	B
EPSML4200-R0.5-PN	□	20	0.5	100	155	20	4	B
EPSML4200-R1.0-PN	□		1	100	155	20	4	B
EPSML4200-R1.5-PN	□		1.5	100	155	20	4	B
EPSML4200-R2.0-PN	□		2	100	155	20	4	B
EPSML4200-R3.0-PN	□		3	100	155	20	4	B
EPSML4200-R5.0-PN	□		5	100	155	20	4	B
