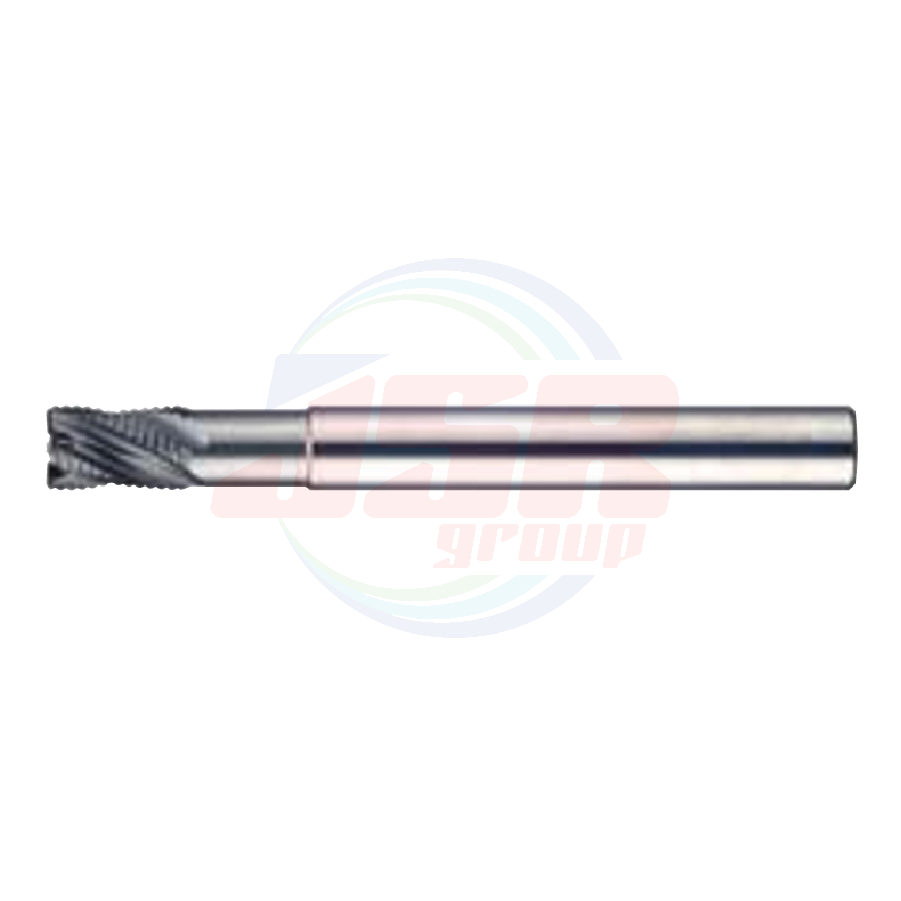

EPSWL-3DC-PN | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 2,349.53
พร้อมส่ง
SKU
EPSWL-3DC-PN
For stable cutting of stainless steel in environments using low-rigidity machines and weak clamps.
| 0~-0.05 |
  |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EPSW-3DC-PN |
| Order No. | EPSWL-3DC-PN |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |
形状 Shape |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首下長 Under neck length |
首径 Neck dia. |
全長 Overall length |
シャンク径 Shank dia. |
コーナ 面取り幅 Corner chamfering width |
||||

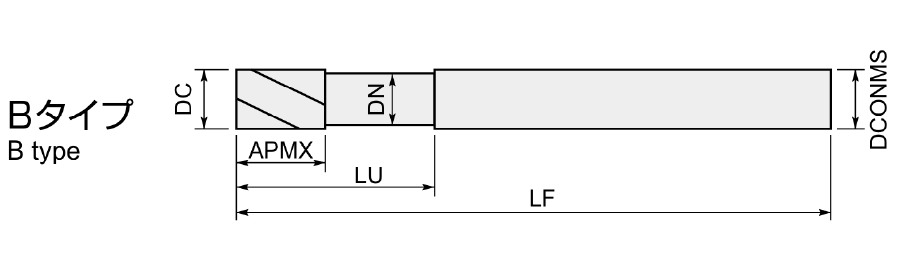

| DC | APMX | LU | DN | LF | DCONMS | |||||
| EPSW3040-12-PN | ● | 4 | 6 | 12 | 3.7 | 56 | 6 | 0.3 | 3 | A |
| EPSW3050-15-PN | ● | 5 | 7.5 | 15 | 4.6 | 56 | 6 | 0.3 | 3 | A |
| EPSW4060-18-PN | ● | 6 | 9 | 18 | 5.5 | 56 | 6 | 0.4 | 4 | B |
| EPSW4070-21-PN | ● | 7 | 10.5 | 21 | 6.4 | 63 | 8 | 0.4 | 4 | A |
| EPSW4080-24-PN | ● | 8 | 12 | 24 | 7.3 | 63 | 8 | 0.5 | 4 | B |
| EPSW4090-27-PN | ● | 9 | 13.5 | 27 | 8.3 | 74 | 10 | 0.5 | 4 | A |
| EPSW4100-30-PN | ● | 10 | 15 | 30 | 9.1 | 74 | 10 | 0.5 | 4 | B |
| EPSW4110-33-PN | ● | 11 | 16.5 | 33 | 10.2 | 86 | 12 | 0.5 | 4 | A |
| EPSW4120-36-PN | ● | 12 | 18 | 36 | 11 | 86 | 12 | 0.5 | 4 | B |
| EPSW4160-48-PN | ● | 16 | 24 | 48 | 14.5 | 110 | 16 | 0.7 | 4 | B |
| EPSW4200-60-PN | ● | 20 | 30 | 60 | 18.2 | 125 | 20 | 0.7 | 4 | B |
