EPSWL-5DC-PN | SQUARE END MILL | MOLDINO
สินค้าหมด
SKU
EPSWL-5DC-PN
For stable cutting of stainless steel in environments using low-rigidity machines and weak clamps.
| 0~-0.05 |
  |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EPSW-5DC-PN |
| Order No. | EPSWL-5DC-PN |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |
形状 Shape |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首下長 Under neck length |
首径 Neck dia. |
全長 Overall length |
シャンク径 Shank dia. |
コーナ 面取り幅 Corner chamfering width |
||||

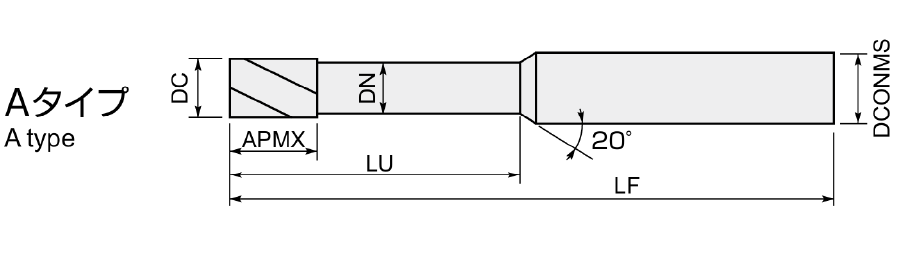

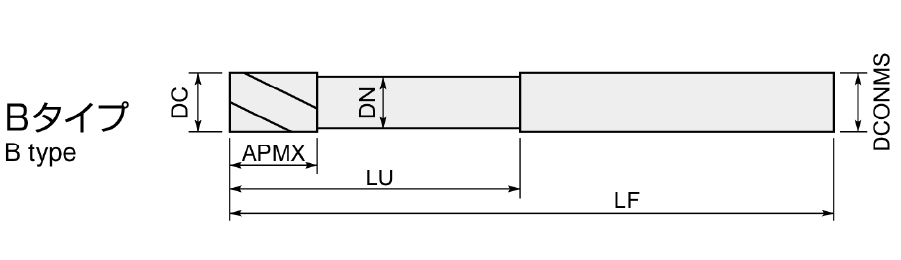

| DC | APMX | LU | DN | LF | DCONMS | |||||
| EPSW3040-20-PN | ● | 4 | 6 | 20 | 3.7 | 68 | 6 | 0.3 | 3 | A |
| EPSW3050-25-PN | ● | 5 | 7.5 | 25 | 4.6 | 68 | 6 | 0.3 | 3 | A |
| EPSW4060-30-PN | ● | 6 | 9 | 30 | 5.5 | 68 | 6 | 0.4 | 4 | B |
| EPSW4070-35-PN | ● | 7 | 10.5 | 35 | 6.4 | 80 | 8 | 0.4 | 4 | A |
| EPSW4080-40-PN | ● | 8 | 12 | 40 | 7.3 | 80 | 8 | 0.5 | 4 | B |
| EPSW4090-45-PN | ● | 9 | 13.5 | 45 | 8.3 | 94 | 10 | 0.5 | 4 | A |
| EPSW4100-50-PN | ● | 10 | 15 | 50 | 9.1 | 94 | 10 | 0.5 | 4 | B |
| EPSW4110-55-PN | ● | 11 | 16.5 | 55 | 10.2 | 110 | 12 | 0.5 | 4 | A |
| EPSW4120-60-PN | ● | 12 | 18 | 60 | 11 | 110 | 12 | 0.5 | 4 | B |
| EPSW4160-80-PN | ● | 16 | 24 | 80 | 14.5 | 135 | 16 | 0.7 | 4 | B |
| EPSW4200-100-PN | ● | 20 | 30 | 100 | 18.2 | 155 | 20 | 0.7 | 4 | B |
