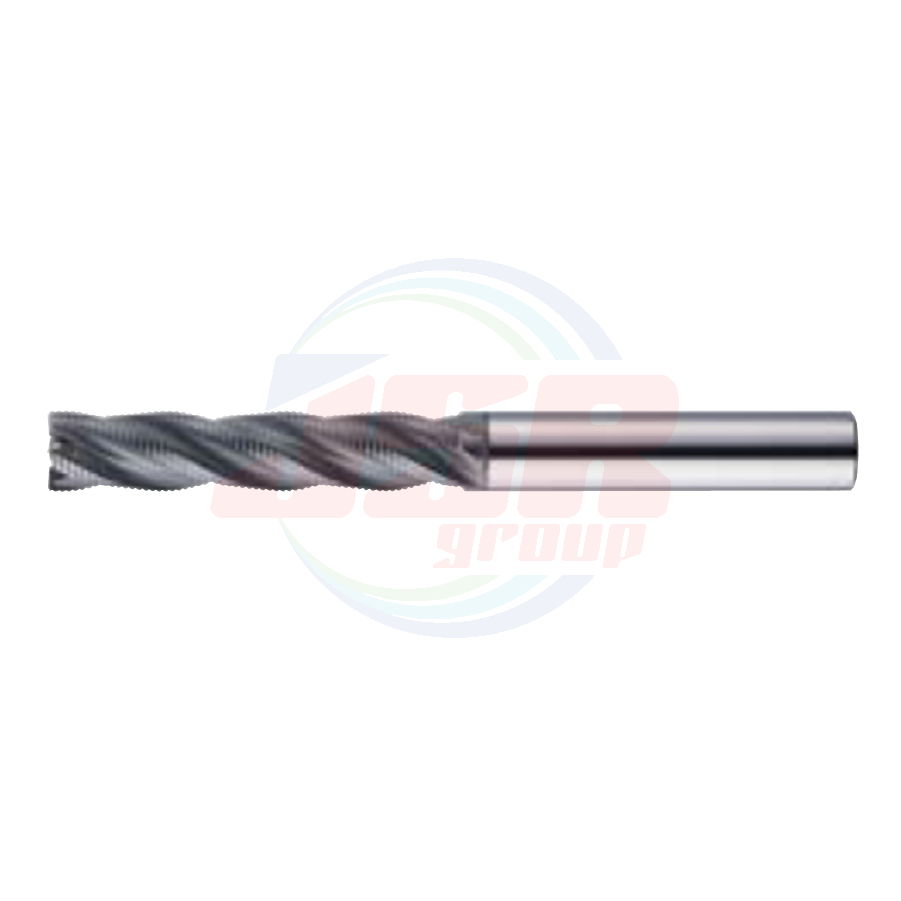

EPSWL-PN | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 4,630.84
พร้อมส่ง
SKU
EPSWL-PN
For stable cutting of stainless steel in environments using low-rigidity machines and weak clamps.
| 0~-0.05 |
  |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | EPSWL-PN |
| Order No. | EPSWL-PN |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |
形状 Shape |
||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
コーナ 面取り幅 Corner chamfering width |
||||

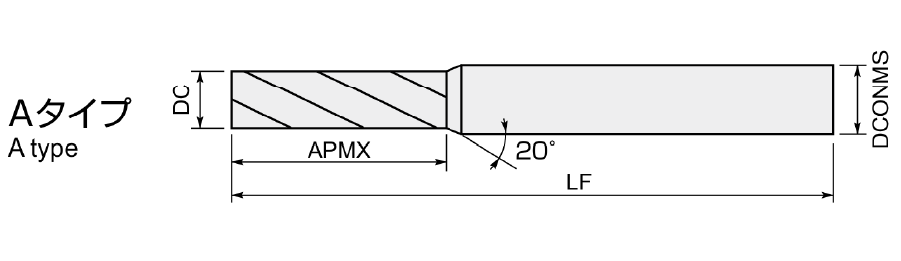

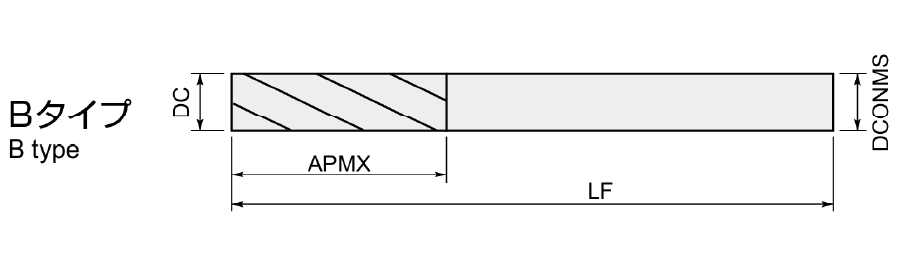

| DC | APMX | LF | DCONMS | |||||
| EPSWL4060-PN | ● | 6 | 30 | 70 | 6 | 0.4 | 4 | B |
| EPSWL4070-PN | □ | 7 | 35 | 80 | 8 | 0.4 | 4 | A |
| EPSWL4080-PN | ● | 8 | 40 | 80 | 8 | 0.5 | 4 | B |
| EPSWL4090-PN | □ | 9 | 45 | 100 | 10 | 0.5 | 4 | A |
| EPSWL4100-PN | ● | 10 | 50 | 100 | 10 | 0.5 | 4 | B |
| EPSWL4110-PN | □ | 11 | 55 | 120 | 12 | 0.5 | 4 | A |
| EPSWL4120-PN | ● | 12 | 60 | 120 | 12 | 0.5 | 4 | B |
| EPSWL4130-PN | □ | 13 | 65 | 130 | 16 | 0.7 | 4 | A |
| EPSWL4140-PN | □ | 14 | 70 | 130 | 16 | 0.7 | 4 | A |
| EPSWL4150-PN | □ | 15 | 75 | 130 | 16 | 0.7 | 4 | A |
| EPSWL4160-PN | ● | 16 | 80 | 135 | 16 | 0.7 | 4 | B |
| EPSWL4170-PN | □ | 17 | 85 | 135 | 20 | 0.7 | 4 | A |
| EPSWL4180-PN | □ | 18 | 90 | 145 | 20 | 0.7 | 4 | A |
| EPSWL4190-PN | □ | 19 | 95 | 145 | 20 | 0.7 | 4 | A |
| EPSWL4200-PN | ● | 20 | 100 | 155 | 20 | 0.7 | 4 | B |
