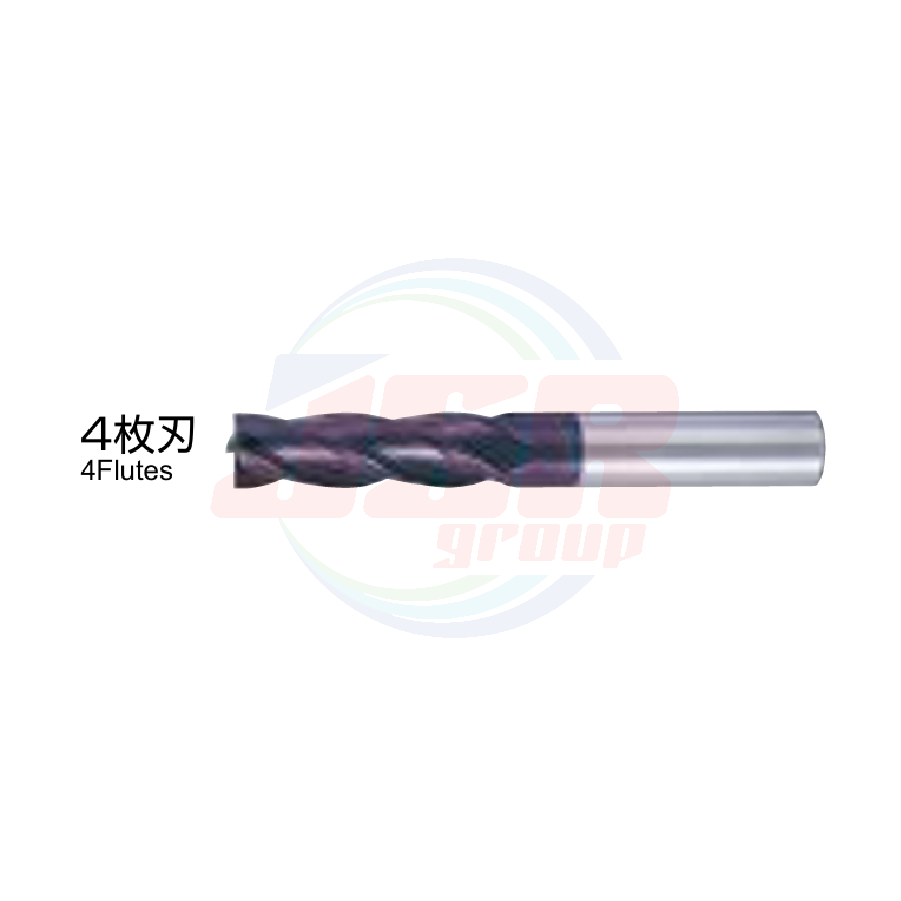

HESM4-C | CARBIDE SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,373.83
พร้อมส่ง
SKU
HESM4-C
| Ø3~Ø6 | : | 0~-0.02 |
| Ø7~Ø30 | : | 0~-0.025 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | HESM4-C |
| Order No. | HESM4-C |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
|||
|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
||
| HESM4030-C | ● | 3 | 15 | 50 | 6 |
| HESM4040-C | ● | 4 | 17 | 50 | 6 |
| HESM4050-C | ● | 5 | 20 | 53 | 6 |
| HESM4060-C | ● | 6 | 20 | 60 | 6 |
| HESM4070-C | ● | 7 | 25 | 63 | 8 |
| HESM4080-C | ● | 8 | 25 | 75 | 8 |
| HESM4090-C | ● | 9 | 28 | 75 | 10 |
| HESM4100-C | ● | 10 | 33 | 80 | 10 |
| HESM4120-C | ● | 12 | 37 | 90 | 12 |
| HESM4130-C | □ | 13 | 37 | 100 | 12 |
| HESM4140-C | □ | 14 | 42 | 100 | 16 |
| HESM4150-C | □ | 15 | 42 | 110 | 16 |
| HESM4160-C | ● | 16 | 47 | 110 | 16 |
| HESM4180-C | □ | 18 | 50 | 120 | 20 |
| HESM4190-C | □ | 19 | 50 | 120 | 20 |
| HESM4200-C | ● | 20 | 55 | 120 | 20 |
| HESM4250-C | □ | 25 | 65 | 140 | 25 |
| HESM4300-C | □ | 30 | 70 | 145 | 32 |
