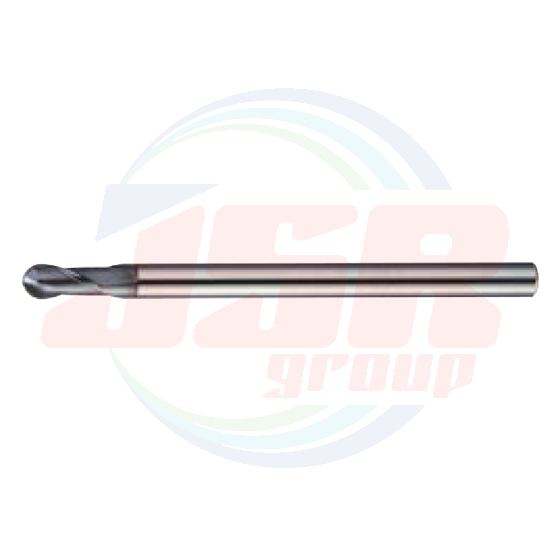

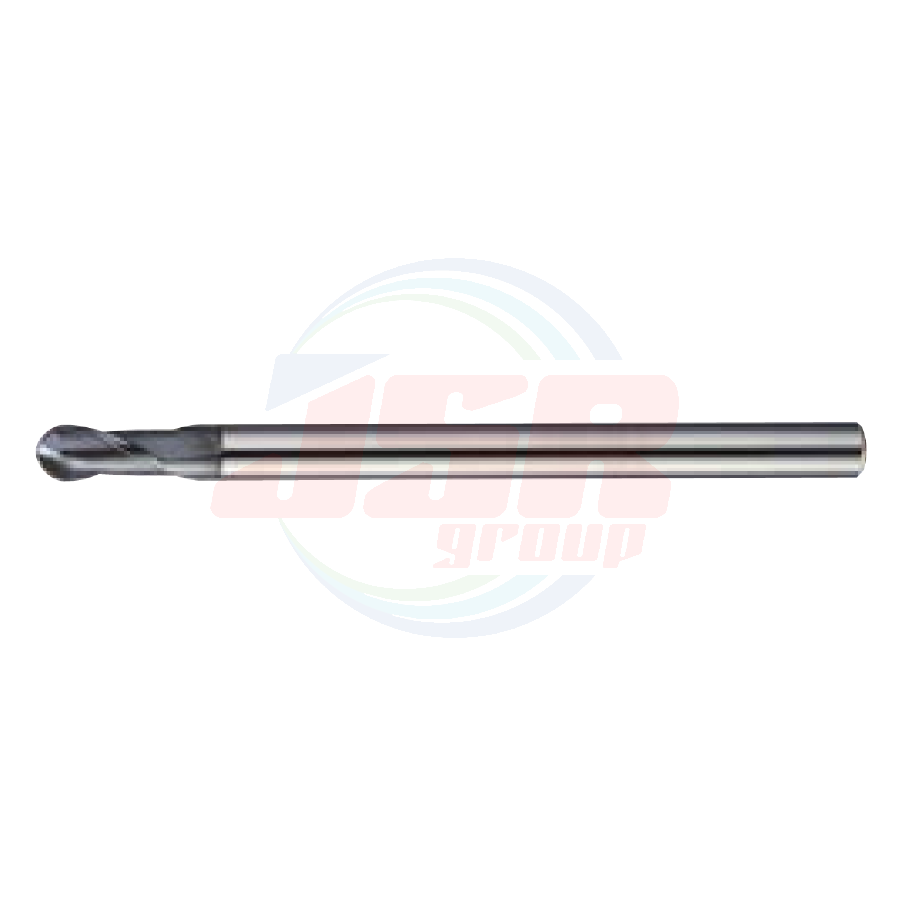

HGOB2-PN | CARBIDE BALL END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,419.63
พร้อมส่ง
SKU
HIT-HGOB2-PN
Provides good machined surface finish for rough machining with high cutting depth. Enables machining of a wide variety of subject materials.
| RE0.15〜RE6 | : | ±0.005 |
| RE8〜RE10 | : | ±0.01 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| โมเดล | HGOB-PN |
|
商品コード |
在庫Stock |
寸 法 Size(mm) |
刃数 |
形状 Shape |
|||||
| ボール半径 Ball radius |
外径 Tool dai |
刃長 |
首下長 Under neck length |
全長 Overall length |
シャンク径 Shank dia. |
||||
| RE | DC | APMX | LB2 | LF | DCONMS | ||||
| HGOB2003-PN | ● | 0.15 | 0.3 | 0.6 | 0.9 | 50 | 4 | 2 | A |
| HGOB2004-PN | ● | 0.2 | 0.4 | 0.8 | 1.1 | 50 | 4 | 2 | A |
| HGOB2005-PN | ● | 0.25 | 0.5 | 1 | 1.3 | 50 | 4 | 2 | A |
| HGOB2006-PN | ● | 0.3 | 0.6 | 1.2 | 1.5 | 50 | 4 | 2 | A |
| HGOB2008-PN | ● | 0.4 | 0.8 | 1.6 | 1.9 | 50 | 4 | 2 | A |
| HGOB2010-PN | ● | 0.5 | 1 | 2.5 | 3.5 | 50 | 4 | 2 | A |
| HGOB2015-PN | ● | 0.75 | 1.5 | 4 | 5 | 50 | 4 | 2 | A |
| HGOB2020-PN | ● | 1 | 2 | 5 | 6 | 50 | 6 | 2 | A |
| HGOB2025-PN | ● | 1.25 | 2.5 | 7 | 8 | 50 | 6 | 2 | A |
| HGOB2030-PN | ● | 1.5 | 3 | 8 | 9 | 70 | 6 | 2 | A |
| HGOB2040-4-PN | ● | 2 | 4 | 8 | - | 70 | 4 | 2 | B |
| HGOB2040-PN | ● | 2 | 4 | 8 | 9 | 70 | 6 | 2 | A |
| HGOB2050-PN | ● | 2.5 | 5 | 10 | 11 | 80 | 6 | 2 | A |
| HGOB2060-PN | ● | 3 | 6 | 12 | - | 90 | 6 | 2 | B |
| HGOB2080-PN | ● | 4 | 8 | 14 | - | 100 | 8 | 2 | B |
| HGOB2100-PN | ● | 5 | 10 | 18 | - | 100 | 10 | 2 | B |
| HGOB2120-PN | ● | 6 | 12 | 22 | - | 110 | 12 | 2 | B |
| HGOB2160-PN | ● | 8 | 16 | 30 | - | 140 | 16 | 2 | B |
| HGOB2200-PN | ● | 10 | 20 | 38 | - | 160 | 20 | 2 | B |
