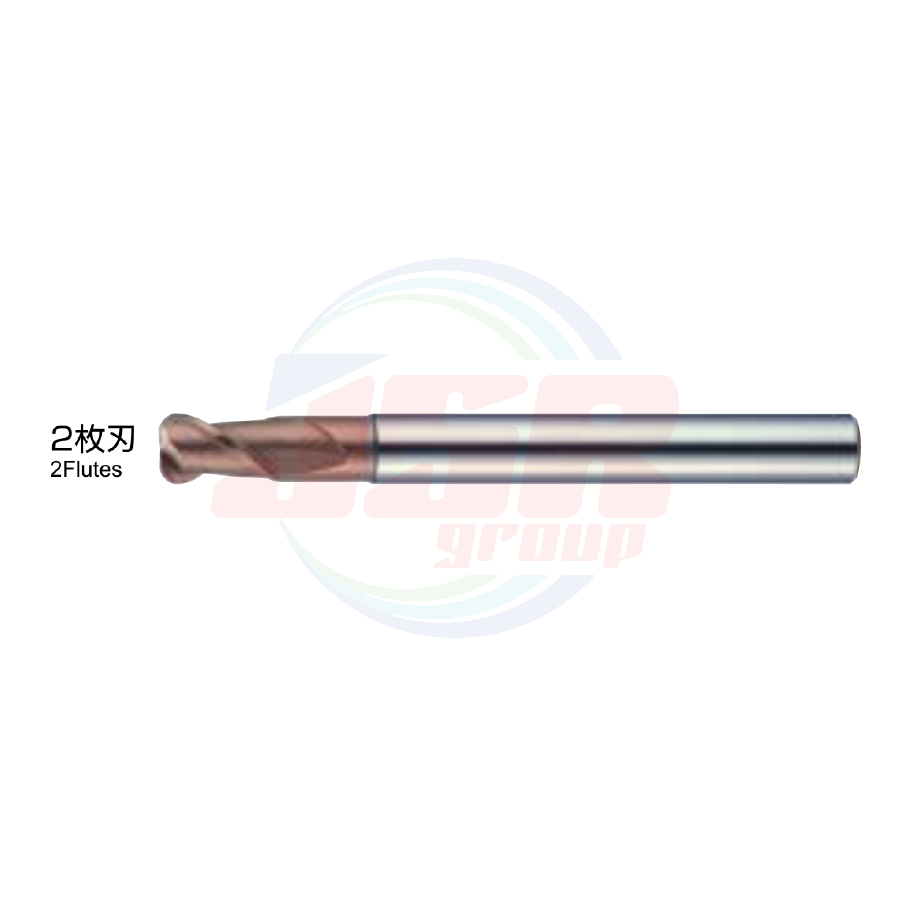

HGOF2-TH | CARBIDE BALL END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,694.39
พร้อมส่ง
SKU
HGOF2-TH
Employs low-resistance flute shape to enable high-efficiency machining of high hardness materials. Focus on general-purpose characteristics.
| 0~-0.03 |
| ±0.01 |
 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| โมเดล | HGOF2-TH |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |
首形状 Shape |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
コーナ半径 Coner radius |
刃長 Flute length |
首下長 Under neck length |
首径 Neck dia. |
全長 Overall length |
シャンク径 Shank dia. |
||||

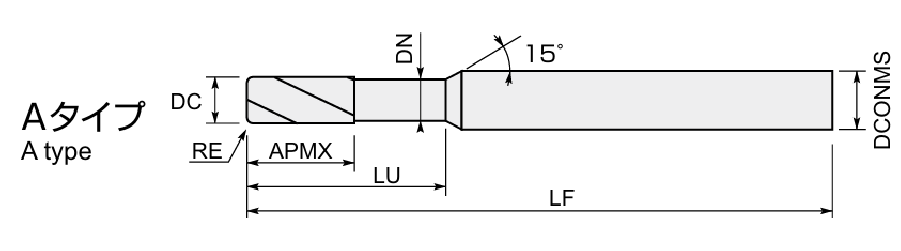

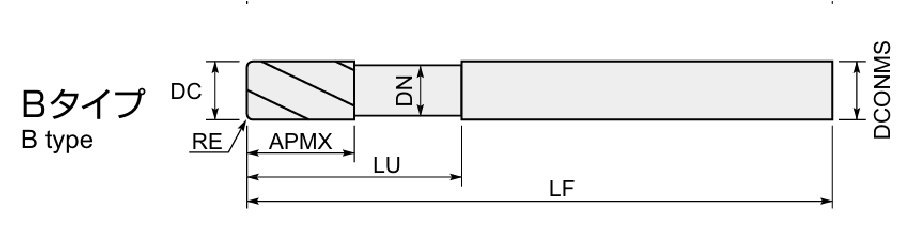

| DC | RE | APMX | LU | DN | LF | DCONMS | ||||
| HGOF2020-05-TH | ● | 2 | 0.5 | 3 | 6 | 1.9 | 60 | 6 | 2 | A |
| HGOF2030-08-TH | ● | 3 | 0.8 | 4.5 | 9 | 2.9 | 60 | 6 | 2 | A |
| HGOF2040-10-TH | ● | 4 | 1 | 6 | 12 | 3.8 | 60 | 6 | 2 | A |
| HGOF2050-12-TH | ● | 5 | 1.2 | 7.5 | 15 | 4.7 | 60 | 6 | 2 | A |
| HGOF2060-15-TH | ● | 6 | 1.5 | 9 | 18 | 5.7 | 60 | 6 | 2 | B |
| HGOF2080-20-TH | ● | 8 | 2 | 12 | 24 | 7.6 | 75 | 8 | 2 | B |
| HGOF2100-20-TH | ● | 10 | 2 | 15 | 30 | 9.5 | 80 | 10 | 2 | B |
| HGOF2120-20-TH | ● | 12 | 2 | 18 | 36 | 11.5 | 100 | 12 | 2 | B |
