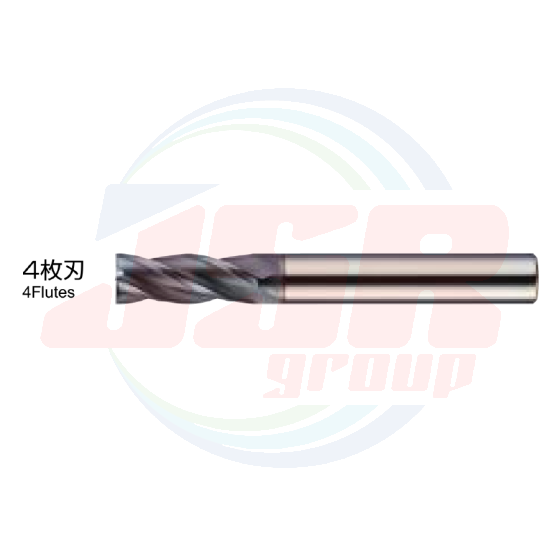

HGOS4-PN | SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 946.73
พร้อมส่ง
SKU
HGOS4-PN
PN Coating for amazing seizure resistance and wear resistance. Enables machining of a wide variety of materials.
| 0~-0.02 | ||
 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | HGOS4-PN |
| Order No. | HGOS4-PN |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
刃数 No. of flutes |

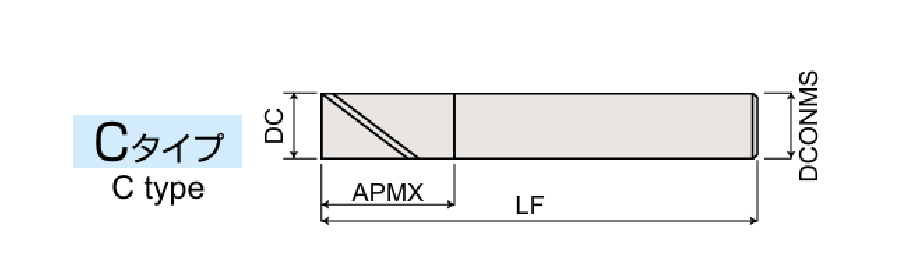

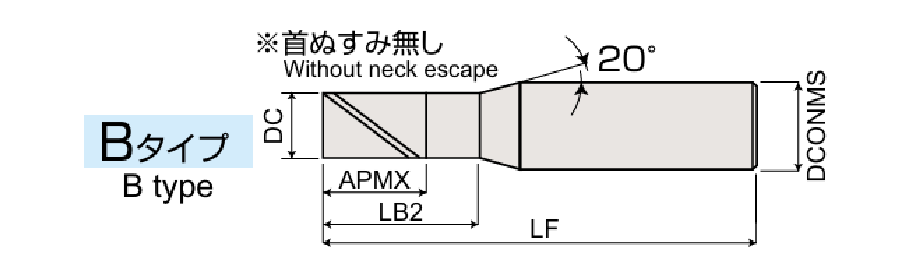

タイプ Type |
||||
|---|---|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首下長 Under neck length |
全長 Overall length |
シャンク径 Shank dia. |
||||
| DC | APMX | LB2 | LF | DCONMS | ||||
| HGOS4010-PN | ● | 1 | 2.5 | 3 | 40 | 4 | 4 | A |
| HGOS4015-PN | ● | 1.5 | 4 | 4.5 | 40 | 4 | 4 | A |
| HGOS4020-PN | ● | 2 | 6 | 7 | 40 | 4 | 4 | A |
| HGOS4025-PN | ● | 2.5 | 8 | 9 | 40 | 4 | 4 | A |
| HGOS4030-PN | ● | 3 | 10 | 11 | 45 | 6 | 4 | A |
| HGOS4040-PN | ● | 4 | 12 | 13 | 45 | 6 | 4 | B |
| HGOS4050-PN | ● | 5 | 15 | 16 | 60 | 6 | 4 | B |
| HGOS4060-PN | ● | 6 | 15 | - | 60 | 6 | 4 | C |
| HGOS4080-PN | ● | 8 | 20 | - | 75 | 8 | 4 | C |
| HGOS4100-PN | ● | 10 | 25 | - | 80 | 10 | 4 | C |
| HGOS4120-PN | ● | 12 | 30 | - | 100 | 12 | 4 | C |
| HGOS4160-PN | ● | 16 | 35 | - | 110 | 16 | 4 | C |
| HGOS4200-PN | ● | 20 | 4 | - | 125 | 20 | 4 | C |
