HM-200 Series - Micro Vickers hardness testing machines (All-in-one model with simple touch-panel operation) | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00
พร้อมส่ง
SKU
HM-200-All in one

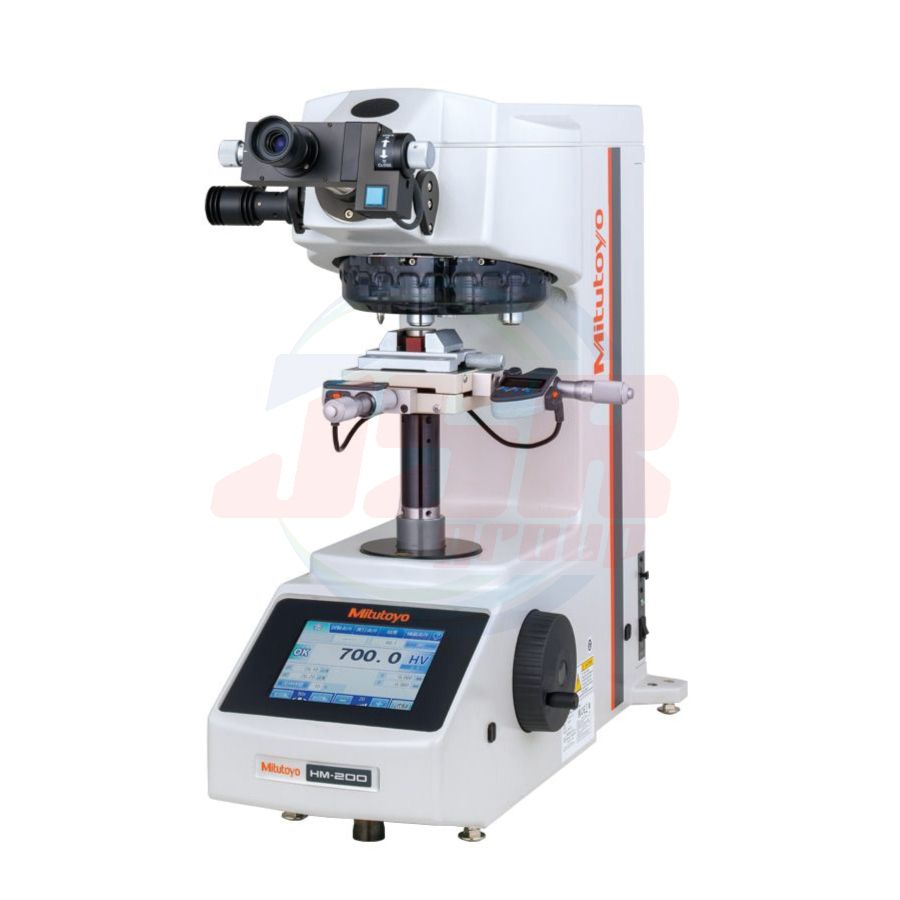

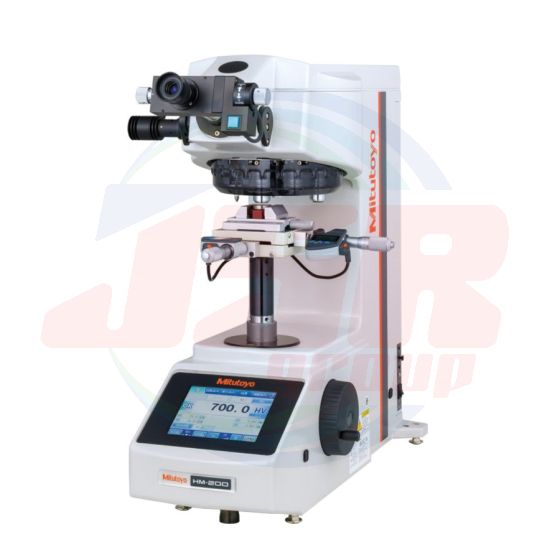

Micro Vickers Hardness Testing Machine

HM-210A / 220A

All-in-one model with simple touch-panel operation


Features
• Touch-panel operation (Including test force conversion)
• Measurement of indentation dimensions using a measuring microscope
• Positioning using a manual XY stage

Applicable standards: JIS B7725 / ISO 6507-2
Test force: 98.07 - 9,807 mN (10 - 1,000 gf), 0.4903 - 19,610 mN (0.05 - 2,000 gf)

HM-200 Series - Micro Vickers hardness testing machines (All-in-one model with simple touch-panel operation) | MITUTOYO
HM-200 Series - Micro Vickers hardness testing machines (All-in-one model with simple touch-panel operation) | MITUTOYO
System configuration System A
Functions Testing action Single point
Measuring indentations Measuring microscope
Camera
(for observing and measuring indentations)
CMOS,
1,230,000 pixels*¹
Test-point positioning Manual XY stage*²
Focusing Manual
Remote box ̶
Operating the main unit Touch panel

*1 When a TV camera unit is used (pixel count of the camera itself: 1,280,000)
*2 Manual XY stage (optional) can be supplied.



Touch-panel display for System A

Easy-to-understand graphic display enables intuitive operation. Functions for converting values and compensating for curved surfaces, as well as a
test condition guiding function are all provided as standard features. (Installed in the System A main unit)



Specifications: TV camera unit

System A

Item Specification
Order No. 810-456-20*¹
810-454-20*²
Camera Imaging device: 1/3.2-inch CMOS (1,230,000 pixels)
Color LED screen magnification When using a 10X objective lens: Approx. 200X
When using a 50X objective lens: Approx. 1000X
When using a 100X objective lens: Approx. 2000X
Color LED monitor Power supply: 100-230 V AC, 50/60 Hz
Power consumption: DC12 V / 1.0 A: 9 W
Screen size: 8 inch
External dimensions: 202 (W) ×29.2 (D) ×175.8 (H) mm
Mass: 1.7 kg

*1 Factory-installed options
*2 Units separately available. They need to be assembled and adjusted by field service engineers.



Specifications: Manual stage unit

Systems A and B

Item Specification
Order No. 810-420 810-423
Type Manual XY
25×25
Manual XY
50×50
XY range 25×25 mm 50×50 mm
Table size 100×100 mm 130×130 mm
Minimum display unit 0.001 mm
Dimensions 221 (W) ×221 (D) ×37 (H) mm 305 (W) ×305 (D) ×49 (H) mm
Mass 2.5 kg 6.6 kg



Specifications

Model HM-210 HM-220
Display unit metric inch/mm metric metric inch/mm metric
Operation Manual Manual System Manual Manual System
Applicable standards JIS B7725/ISO 6507-2
Testable hardness Vickers hardness (HV)/Knoop hardness (HK)/Fracture toughness (Kc)
Test force
mN (gf) mN (gf)
98.07 (10) 1961 (200)
196.1 (20) 2942 (300)
294.2 (30) 4903 (500)
490.3 (50) 9807 (1000)
980.7 (100)
mN (gf) mN (gf) mN (gf) mN (gf)
0.4903 (0.05) 9.807 (1) 196.1 (20) 2942 (300)
0.9807 (0.1) 19.61 (2) 294.2 (30) 4903 (500)
1.961 (0.2) 29.24 (3) 490.3 (50) 9807 (1000)
2.942 (0.3) 49.03 (5) 980.7 (100) 19610 (2000)
4.903 (0.5) 98.07 (10) 1961 (200)
Variable test force, setting of one model can be saved (Initial setting: HV0.025).
Indenter approach speed Fixed at 60 μm/s HV0.03 or less: Variable between 2 and 60 μm/s. Can be set in 1 μm/s increments.
HV0.031 or greater: Fixed at 60 μm/s
Specimen Maximum dimensions Depth: 160 mm Height: 133 mm (Manual XY stage unit 25 mm)/72 mm (Motorized XY stage unit 100 mm+AF stage)
Max. loading capacity System A, B: 3 kg System C: 7 kg System D: 4 kg
Optical section Optical system Infinitely corrected optical system, 4-port objective lens switching method
Illumination Light source White LED
Aperture diaphragm Variable
Standard
objective
lens
Lens MH Plan 10X MH Plan 50X
Working distance 11.8 mm 2.5 mm
Real field of view and imaging range System A: Real field of view: ø0.28 mm (maximum range: 0.14 mm) System B, C, D: Imaging range: 0.118 (H) mm×0.089 (V) mm
Measuring microscope (Ocular) System A: Length-measuring microscope with integrated encoder and eyepiece (10X) System B, C, D: Factory-installed options
Mechanism Test time Test force loading time 1 to 99 s Can be set in 1 s increments.
Test force duration time 0 to 999 s Can be set in 1 s increments.
Test force unloading time 1 to 99 s Can be set in 1 s increments.
Loading
device
Test force control Electromagnetic (voice coil)
Test force switching System A: Can be selected from touch panel System B, C, D: Can be selected by AVPAK-10/20
Turret Drive method Motor drive (Can be operated by manual)
Operation method System A: Touch panel System B: AVPAK-10/20 System C/D: AVPAK-10/20 and Remote Control Box
Number of turret ports Indenter shaft unit: Up to two can be installed (including the standard Vickers indenter shaft unit already installed);
Objective lens unit: Up to four can be installed (including the standard 10X, 50X objective lens already installed)
Data output RS-232C, Digimatic (can be used in only System A), USB2.0/Type A (only mounted in System A for USB memory), USB2.0/Type B (for PC communication)
Power supply/Power consumption AC100 V 50/60 Hz 31 W (for HM-210 manual model main unit)
44 W (for HM-220 manual model main unit)
30 W (for HM-210 system model main unit)
43 W (for HM-220 system model main unit)
Maximum specimen
dimensions/Maximum
load capacity
System A Approx. 315 (W) ×671 (D) ×595 (H) mm
System B, C, D Approx. 315 (W) ×586 (D) ×741 (H) mm
Mass Common for all system 38.5 kg (Manual model main unit)
37.4 kg (System model main unit)

Note: The AVPAK-20 software package is not for use within, or export to, the United States of America. The AVPAK-10 software package is for the United States of America.
