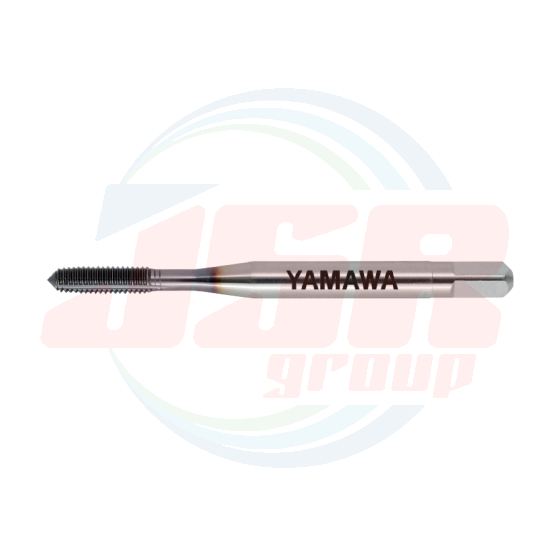

HP+RZ | High Performance Roll Taps, Coated | YAMAWA

YAMAWA
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 981.31
พร้อมส่ง
SKU
HP+RZ
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

・The product symbol is divided by nominal sizes.

HP＋RZ 〜M6
HP-RZ M8〜, all U



Product Features

  •  The HP+RZ/HP-RZ roll taps are suitable for processing steel materials with a hardness of 35 HRC or less
    and light alloys. These roll taps are recommended for high speed machining 20 to 50 m/min.
  • Roll form processing of stainless steel and thermal refined materials up to 40 HRC are now possible.
  • The roll form tapping torque has been reduced by 20% or more, making it possible to significantly
    improve tool life compared with conventional roll form tap products.
  • The HP+RZ/HP-RZ taps make it possible to use a water soluble cutting fluid.



Tapping Data

Processing conditions [M2 × 0.4 G4 B]

Tap Type HP+RZ, conventional product
Workpiece Material SS400
Bored Hole Size φ1.83
Tapping Length 3mm blind hole
Tapping Speed 50m/min
Machinery Type Vertical MC (synchronous feed)
Tapping Fluid Water soluble cutting fluid
(chlorine-free 10 to 1 dilution)



The HP+RZ/HP-RZ roll taps utilize a design to reduce machine tapping torque in difficult to cut materials.
(Patent No. 3822572).

Roll form processing conditions [M6 × 1 G7 B]

Tap Type HP+RZ, conventional product
Worlpiece Material SUS304
Bored Hole Size φ5.5
Tapping Length 8mm blind hole
Tapping Speed 15m/min
Machinery Type Vertical MC (synchronous feed)
Tapping Fluid Insoluble cutting fluid

Using an optimal design on the chamfer portion, the
HP+RZ forms the internal thread from the first chamfer
portion, reducing the processing burden on each thread
while producing a smooth screw thread.

HP+RZ | High Performance Roll Taps, Coated | YAMAWA
HP+RZ | High Performance Roll Taps, Coated | YAMAWA

Specification



Tapping Speeds depending on Materials



                                                                     25〜35HRC

HP+RZ　High Performance Roll Taps, Coated

Recommended class

Segment：1J

Size

Class

Code

Chamfer

L

(mm)

ℓ

(mm)

ℓn

(mm)

ℓs

(mm)

Ds

(mm)

K

(mm)

ℓk

(mm)

Lobe

TYPE

For Metric Threads

M1×0.25

G4

HRZP41.0BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1.2×0.25

G4

HRZP41.2BB

2P

36

4.5

-

24

3

2.5

5

4

1

M1.4×0.3

G4

HRZP41.4CB

2P

36

5.4

-

24

3

2.5

5

4

1

M1.6×0.35

G4

HRZP41.6DB

2P

36

6.3

-

24

3

2.5

5

4

2

M1.7×0.35

G4

HRZP41.7DB

2P

36

6.3

-

24

3

2.5

5

4

2

M2×0.4

G4

HRZP42.0EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2×0.4

G5

HRZP52.0EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G4

HRZP42.3EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.3×0.4

G5

HRZP52.3EB

2P

42

7.2

-

27

3

2.5

5

4

3

M2.5×0.45

G5

HRZP52.5FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.5×0.45

G6

HRZP62.5FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G5

HRZP52.6FB

2P

46

8.1

14

29

3

2.5

5

4

4

M2.6×0.45

G6

HRZP62.6FB

2P

46

8.1

14

29

3

2.5

5

4

4

M3×0.5

G5

HRZP53.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G5

HRZP53.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G6

HRZP63.0GP

4P

46

9

14

26

4

3.2

6

4

4

M3×0.5

G6

HRZP63.0GB

2P

46

9

14

26

4

3.2

6

4

4

M3.5×0.6

G5

HRZP53.5HP

4P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G5

HRZP53.5HB

2P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G6

HRZP63.5HP

4P

52

11

16

29

5

4

7

4

4

M3.5×0.6

G6

HRZP63.5HB

2P

52

11

16

29

5

4

7

4

4

M4×0.7

G6

HRZP64.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G6

HRZP64.0IB

2P

52

11

17

29

5

4

7

4

4

M4×0.7

G7

HRZP74.0IP

4P

52

11

17

29

5

4

7

4

4

M4×0.7

G7

HRZP74.0IB

2P

52

11

17

29

5

4

7

4

4

M5×0.8

G6

HRZP65.0KP

4P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G6

HRZP65.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G7

HRZP75.0KP

4P

60

13

22

33

5.5

4.5

7

4

4

M5×0.8

G7

HRZP75.0KB

2P

60

13

22

33

5.5

4.5

7

4

4

M6×1

G6

HRZP66.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G6

HRZP66.0MB

2P

62

15

26

33

6

4.5

7

4

4

M6×1

G7

HRZP76.0MP

4P

62

15

26

33

6

4.5

7

4

4

M6×1

G7

HRZP76.0MB

2P

62

15

26

33

6

4.5

7

4

4



Number of oil grooves : Metric thread : M2.6 and smaller=non, M3〜M6=2, M8=3, M10 and larger=4
Unified thread : No.4 and smaller=non, No.5 and larger=2
For M6 and smaller, external centers of 2 thread chamfer taps are removed.
