HR-530 Series
Rockwell Hardness Testing Machine

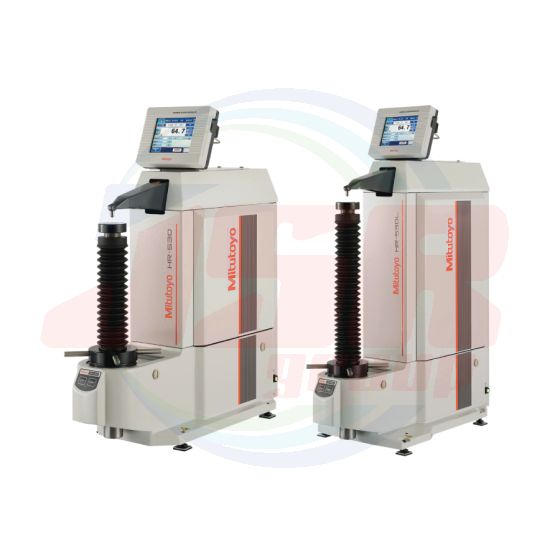

HR-530/530L
Rockwell hardness-testing machines with a unique structure that allows for testing the hardness of the inner surface of a workpiece without cutting it into pieces.
Applicable standards: JIS B7726 /ISO 6508-2, ASTM E18-20
Test force: 588.4 - 1,471
Specifications
| Model | HR-530 | HR-530L | |||
| Display unit | metric | inch/mm | metric | inch/mm | |
| Applicable standards | JIS B7726/ISO 6508-2, ASTM E18-20 | ||||
| Testable hardness | Rockwell hardness/Rockwell Superficial hardness/Brinell hardness/Indentation Brinell hardness/Plastics hardness | ||||
| Initial test force N (kgf) | 29.42 (3) 98.07 (10) | ||||
| Test force N (kgf) |
Rockwell | 588.4 (60) 980.7 (100) 1471 (150) | |||
| Rockwell Superficial | 147.1 (15) 294.2 (30) 441.3 (45) | ||||
| Brinell | 61.29 (6.25) 98.07 (10) 153.2 (15.625) 245.2 (25) 294.2 (30) 306.5 (31.25) 612.9 (62.5) 980.7 (100) 1226 (125) 1839 (187.5) |
||||
| Test force control | Auto (load, duration, unload) | ||||
| Table up/down mechanism | Manual (automatic brake for the preliminary test force) | ||||
| Operation unit | Color Touch-panel | ||||
| Test force switching | Via display unit | ||||
| Test force duration time | 1 to 120 s (Can be set to any value in units of 1 s.) | ||||
| Maximum specimen dimensions | Height: 250 mm Depth: 150 mm |
Height: 395 mm Depth: 150 mm |
|||
| Allowable inner diameter of pipe specimen |
Minimum hole diameter: 35 mm (When the special specification indenter is used: 22 mm) | ||||
| Max. loading capacity | 20 kg | ||||
| Display | Hardness value, Test condition, OK/NG judgment result, Statistical calculation result, X-R control chart, Hardness conversion value |
||||
| Conversion function [HV, HK, HR (Rockwell hardness A, B, C, D, F, G/Rockwell Superficial 15T, 30T, 45T, 15N, 30N, 45N), HS, HB, Tensile strength] | |||||
| Minimum hardness value: 0.1, Hardness value indicator: max. 6 digits (including decimal point and minus sign) | |||||
| OK/NG judgment function, Continuous measurement function (for specimens of the same thickness) | |||||
| Cylindrical correction, Spherical correction, Offset correction, Multi-point correction functions | |||||
| Statistical calculation function (Maximum value, minimum value, mean value, standard deviation, upper and lower limit values, OK count, range, NG count) |
|||||
| Graph generation function (X-R control charts) | |||||
| Languages | 15 languages are supported: Japanese, English, German, French, Italian, Spanish, Korean, Chinese (simplified/traditional), Turkish, Portuguese, Hungarian, Polish, Dutch and Czech |
||||
| External connection interface | RS-232C, Digimatic, USB Type A (for external USB memory), USB Type B (for PC communication) | ||||
| Power supply | AC100 to 240 V 50/60 kHz | ||||
| External dimensions |
Body | 250 (W) ×667 (D) ×621 (H) mm | 300 (W) ×667 (D) ×766 (H) mm | ||
| Touch-panel display unit | 191 (W) ×147 (D) ×71 (H) mm | ||||
| Mass | 61 kg | 70 kg | |||
Note 1: Plastic tests may not be supported depending on the plastic material.
Note 2: For Brinell hardness testing, an indenter (optional) and a measurement microscope are required. A measurement microscope should be prepared by customer.
Note 3: No indenter and hardness standard block is supplied with the unit. These items (conform to the applicable standard) must be purchased separately.
