HYPS-C | CARBIDE SQUARE END MILL | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 1,596.26
พร้อมส่ง
SKU
HYPS-C

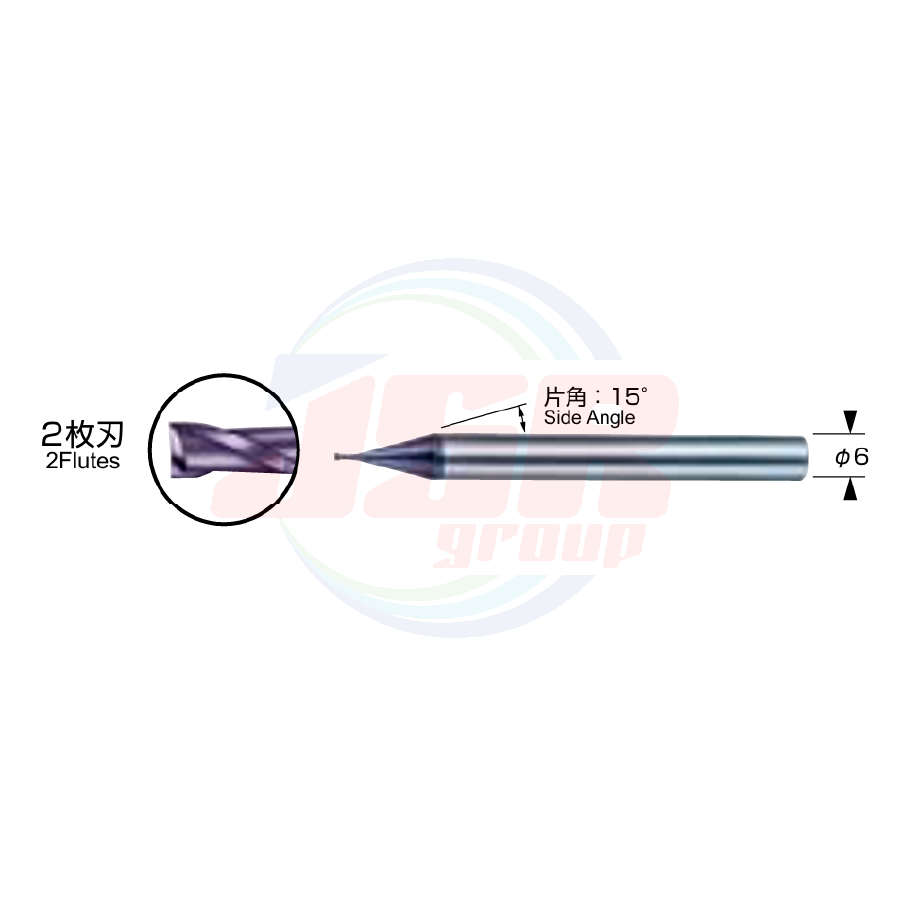

Square end mill for small-diameter high-precision machining.
| ０〜−0.015 |
| ０〜−0.005 |
| แบรนด์สินค้า | MOLDINO |
|---|---|
| Model Moldino Carbide Square | HYPS-C |
| Order No. | HYPS-C |
|
商品コード |
在庫 Stock |
寸 法 Size(mm) |
||||
|---|---|---|---|---|---|---|
| 外径 Tool dia. |
刃長 Flute length |
首径 Neck dia. |
首下長 Under neck length |
全長 Overall length |
||
| HYPS2002-C | ● | 0.2 | 0.3 | - | 首ぬすみ 無し Without neck escape |
50 |
| HYPS2003-C | ● | 0.3 | 0.4 | - | 50 | |
| HYPS2004-C | ● | 0.4 | 0.5 | - | 50 | |
| HYPS2005-C | ● | 0.5 | 0.6 | 0.45 | 1.6 | 50 |
| HYPS2006-C | ● | 0.6 | 0.7 | 0.55 | 1.7 | 50 |
| HYPS2008-C | ● | 0.8 | 1 | 0.75 | 2.5 | 50 |
| HYPS2010-C | ● | 1 | 1.3 | 0.95 | 3.3 | 50 |
| HYPS2012-C | ● | 1.2 | 1.5 | 1.15 | 3.5 | 50 |
| HYPS2014-C | ● | 1.4 | 1.8 | 1.35 | 3.8 | 50 |
| HYPS2015-C | ● | 1.5 | 1.9 | 1.45 | 4.9 | 50 |
| HYPS2016-C | ● | 1.6 | 2 | 1.55 | 5 | 50 |
| HYPS2018-C | ● | 1.8 | 2.3 | 1.75 | 5.3 | 50 |
| HYPS2020-C | ● | 2 | 2.5 | 1.95 | 5.5 | 50 |
| HYPS2025-C | ● | 2.5 | 3 | 2.4 | 6 | 50 |
| HYPS2030-C | ● | 3 | 4 | 2.9 | 8 | 50 |
| HYPS2035-C | ● | 3.5 | 4.5 | 3.4 | 8.5 | 50 |
| HYPS2040-C | ● | 4 | 5 | 3.9 | 10 | 50 |
| HYPS2050-C | ● | 5 | 6 | 4.9 | 11 | 50 |
| HYPS2060-C | ● | 6 | 7.5 | 5.9 | 12.5 | 50 |
