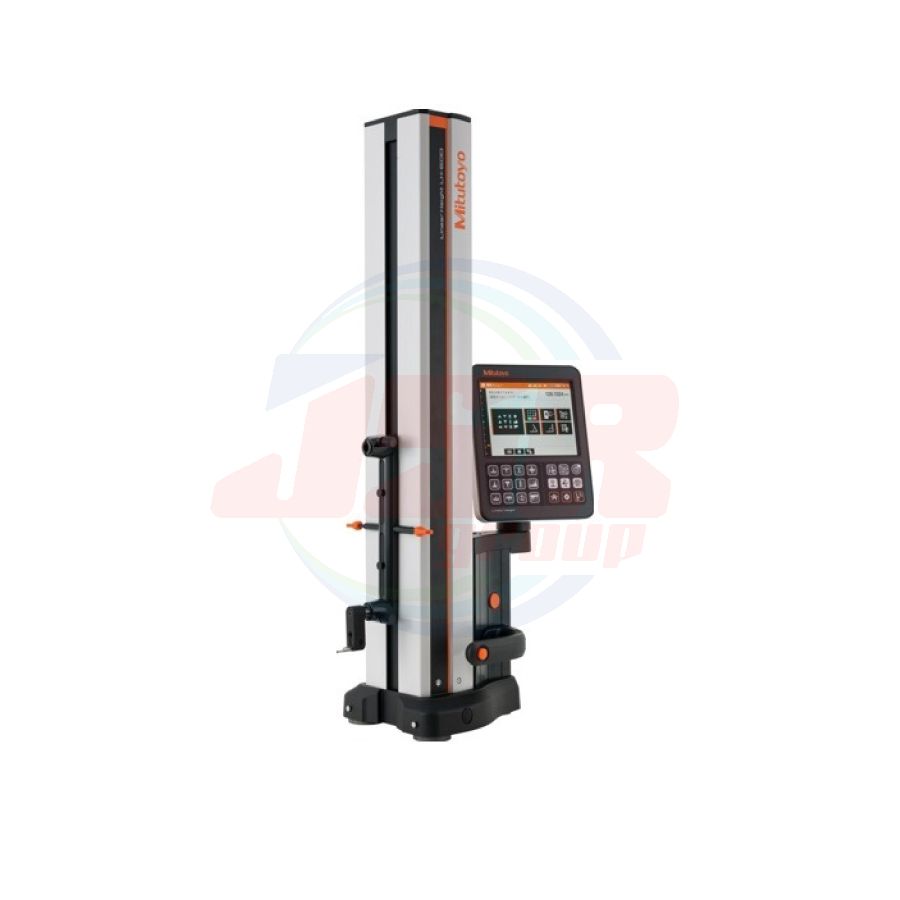

Linear Height SERIES 518 — High-performance 2D Measurement System | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
1MIT-LH
• This is a precision height gage featuring high accuracy and outstanding ease of use. It is useful not only in height measurement but also in a wide range of applications such as inspection of moulds and precision parts.
• Easy operation using keypad and touch screen navigation allows intuitive operation that is suitable even for beginners.
• The built-in scale is dirt-resistant and can be reliably used on shop floors.
• Various interfaces are available, including connection to a printer, a PC, and our wired or wireless communication system.
• Pneumatic full/semi-floating suspension system allows adjustment of air-cushion height.
• It is easily expandable to support various types of optional probes to meet your different measurement needs.
| Model | LH-600F | LH-600FG | |
| Order No. | mm | 518-360-11 | 518-361-11 |
| inch / mm | 518-360-13 | 518-361-13 | |
| Power grip | Without power grip | With power grip | |
| Measuring range (Stroke) | 0 to 977 mm (600 mm) 0 to 38 in (24 in) |
||
| Resolution | 0.0001/0.001/ 0.01 / 0.1 mm (selectable) 0.000001/0.00001/0.0001/ 0.001 in (selectable) |
||
| Accuracy | Indication accuracy*1 | ± (1.1 + 0.6L/600) μm, L= Arbitrary measuring height (mm) | |
| Repeatability*1 | Plane: 0.4 μm (2σ), Hole: 0.9 μm (2σ) | ||
| Perpendicularity (forward and backward)*2 |
5 µm | ||
| Straightness (forward and backward)*2 |
4 µm | ||
| Driving method (speed) | Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps) /Manual | ||
| Scale unit | Photoelectric incrermental encoder STVC-20Z | ||
| Measuring force | 1 N (automatic constant-force function) | ||
| Main unit moving mode | Full-floating (moving) / Semi-floating (measuring) Air bearing (built-in compressor) | ||
| Display unit | 8.4 inch touch-screen, LCD | ||
| Adjustment of display unit | Stepless tilt adjustment: 0 to 40° Stepless swivel adustment: -30 to 180° |
||
| Preventive maintenance | Scale status notification, calibration schedule notification | ||
| Probe diameter compensation | Semi-automatic compensation using the probe diameter calibration block (standard accessory) Compensation by inputting the probe diameeter |
||
| Power source | AC adapter 100-240 V±10% 50/60 Hz/ Battery (NiMH) | ||
| Battery operation time*3 | Battery powered (standard): 4 hours*4, Powered by 2 batteries: 8 hour | ||
| Battery charging time*5 | Approx. 3.5 hours (can be used while charging) | ||

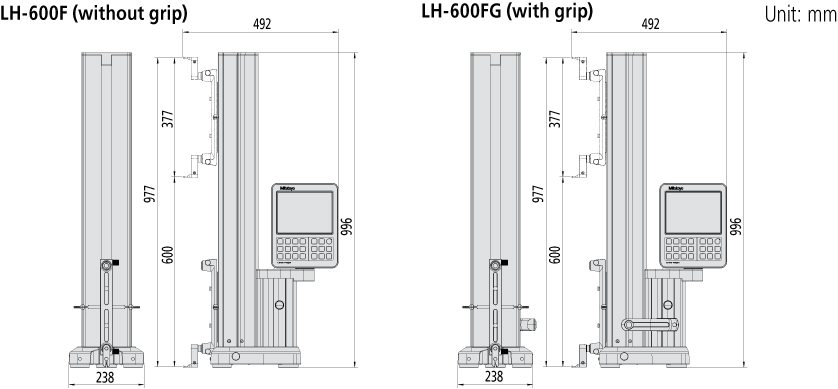

| Dimensions (W×D×H) | 238×492×996 mm | ||
| Mass | 26.1 kg | 26.6 kg | |
| Operating temperature/ humidity ranges | 5 to 40 °C / 20 to 80% RH (non-condensing) | ||
| Data output | Digimatic D1 /D2/ S1 (bi-directional communication) | ||
• Use in an environment that is as close as possible to 20 ˚C, and subject to minimal temperature change over time.
*1: Indication accuracy and repeatability represent the values obtained when the standard ø5 stepped prove is used.
*2: Guaranteed when using the Lever Head (519-521) and Mu-Checker (519-561).
*3: 25% operation of vertical movement by suspension and motor
*4: One battery pack (12AAF712) is provided as standard.
*5: When ambient temperature is 30 °C or higher, the battery may not charge sufficiently.
