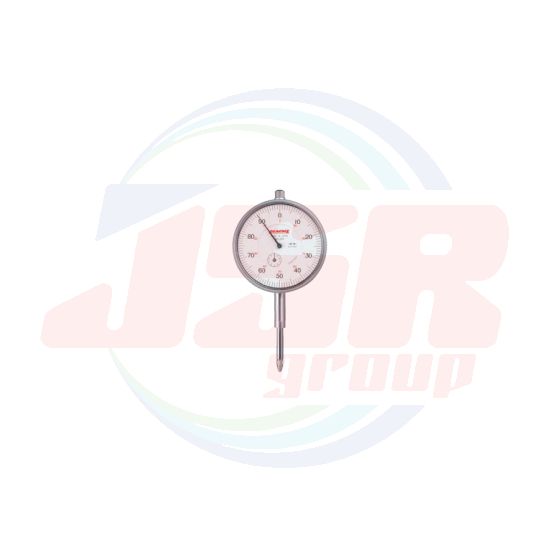

Long Travel Dial Gauges - 0.01mm, 0.05mm and 0.1mm
Dial Gauges are widely used manufacturing plants.
● The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
● The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly pushing up the spindle.
● The turning section of the outer frame sealed by the O-ring and the back inside sealed by the packing are water-proof and dust-proof in construction.
● The back is increased in strength by four screws, and the lug can be turned 90 degrees in the installation way.
● Jeweled bearing is installed to our general Dial Gauges.
Specifications
(unit: μm)
Order No. | Graduation (mm) |
Range (mm) | Reading | Indication error (MPE) | Hysteresis error |
Repeatability | Measuring force less than (N) |
|||
1/10 revolution | 1/2 revolution | One revolution | Whole measuring range |
|||||||
207 | 0.01 | 20 | ±0 - 50 - 100 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207F-PL | 0.01 | 20 | ±0 - 50 - 100 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207F-T | 0.01 | 20 | ±100 - 50 - 0 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207S-LL | 0.01 | 20 | ±0 - 50 - 100 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207S | 0.01 | 20 | ±0 - 50 - 100 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207W | 0.01 | 20 | ±0 - 50 - 100 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
207WF-T | 0.01 | 20 | ±100 - 50 - 0 | 8 | 10 | 15 | 25 | 5 | 4 | 2.0 |
307S | 0.01 | 30 | ±0 - 50 - 100 | 10 | 12 | 15 | 30 | 7 | 5 | 2.2 |
307 | 0.01 | 30 | ±0 - 50 - 100 | 10 | 12 | 15 | 30 | 7 | 5 | 2.2 |
507 | 0.01 | 50 | ±0 - 50 - 100 | 10 | 12 | 15 | 40 | 8 | 5 | 2.5 |
509 | 0.05 | 50 | ±0 - 5 - 10 | 30 | 60 | 100 | 100 | 10 | 20 | 2.5 |
809 | 0.1 | 80 | ±0 - 5 - 10 | 50 | - | - | 100 | - | 35 | 2.5 |
แบรนด์สินค้า | PEACOCK |
---|
Long Travel 0.01mm 0.005mm 0.1mm
mm
Order No. | A | B | C | D | E | F | G | H | I | J | |
207 | 90 | 41 | 25 | 66.5 | 14.5 | 20 | 5 | 7.5 | 62.5 | 8.0 | 0 –0.03 |
207F-PL | 90 | 41 | 25 | 66.5 | 14.5 | - | 5 | 7.5 | 62.5 | 8.0 | 0 –0.03 |
207F-T | 90 | 41 | 25 | 66.5 | 14.5 | - | 5 | 7.5 | 62.5 | 8.0 | 0 –0.03 |
207S-LL | 75 | 50.5 | 18.5 | 53 | 14.5 | 20 | 4 | 6.5 | 49 | 8.0 | 0 –0.03 |
207S | 75 | 50.5 | 18.5 | 53 | 14.5 | 20 | 4 | 6.5 | 49 | 8.0 | 0 –0.03 |
207W | 75 | 50.5 | 17.5 | 55 | 17 | 20 | 4 | 6.5 | 49 | 8.0 | 0 –0.03 |
207WF-T | 75 | 50.5 | 17.5 | 55 | 17 | - | 4 | 6.5 | 49 | 8.0 | 0 –0.03 |
307S | 107 | 89 | 22 | 57 | 17.5 | 20 | 5 | 7 | 52 | 8.0 | 0 –0.03 |
307 | 102 | 46 | 22.8 | 75.5 | 17.5 | 21 | 5 | 8 | 72.5 | 8.0 | 0 –0.03 |
507 | 128 | 81.5 | 26.7 | 81.5 | 17.5 | 21.5 | 5.5 | 8.5 | 78.5 | 10.0 | 0 –0.03 |
509 | 128 | 81.5 | 26.7 | 81.5 | 17.5 | 21.5 | 5.5 | 8.5 | 78.5 | 10.0 | 0 –0.03 |
809 | 201.5 | 86.5 | 54 | 112 | 24 | 22.5 | 6 | 10 | 108 | 14.0 | 0 –0.03 |
