MACH-3A 653 | In-line CNC Coordinate Measuring System - MACH Series | MITUTOYO

MITUTOYO
เป็นคนแรกที่รีวิวสินค้านี้
THB 0.00 THB 0.00
พร้อมส่ง
SKU
MACH-3A 653
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

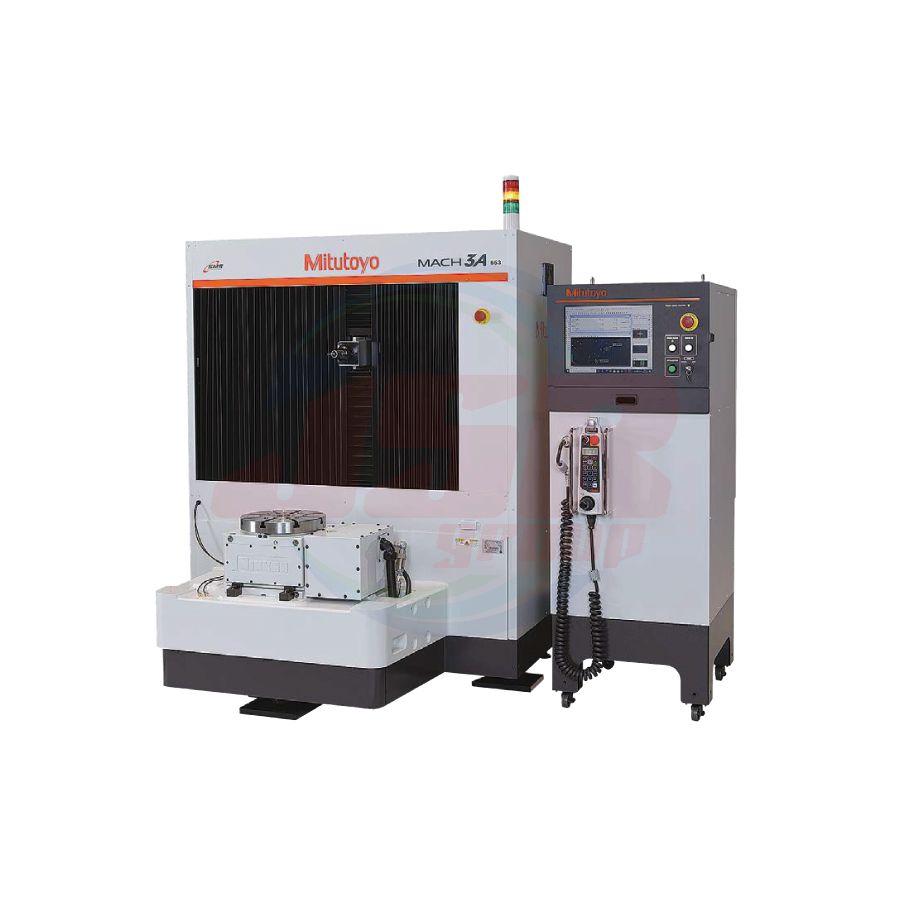

In-line CNC CMM

MACH-3A 653

A horizontal CNC coordinate measuring machine for in-line use that can not only save space but also increase throughput with high acceleration, high-speed movement, and high-speed measurement. An optional index table allows more flexible measurements.

MACH-3A 653 | In-line CNC Coordinate Measuring System - MACH Series | MITUTOYO
MACH-3A 653 | In-line CNC Coordinate Measuring System - MACH Series | MITUTOYO
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
Order No. MACH-3A 653
Main unit

SPECIFICATIONS

MACH-3A 653
Measuring range (mm) X axis 600 mm
Y axis 500 mm
Z axis 280 mm
Resolution 0.0001 mm (0.1 μm)
Guide system Linear guide on each axis
Operating speeds CNC MODE Max. 700 for each axis mm/s;
Max. combined speed 1212 mm/s
1 to 30 mm/s (Measuring speed for TP7M SP25M)
1 to 20 mm/s (Measuring speed for TP20)
Joystick mode 0 to 80 mm/s (High Speed)
0 to 3 mm/s (Low Speed)
0 to 0.05 mm/s (Fine Speed)
Maximum drive acceleration Each axis 6860 mm/s²;
Max. combined acceleration11882 mm/s²
Scale type Linear encoder
Workpiece Maximum mass 200 kg

Mass of machine
(including the controller)

 1400 kg (excluding optional accessories)








Accuracy

Accuracy ISO 10360-2: 2009

(Unit: μm)

Probe used Max. permissible length
measurement error (E0, MPE)		 Maximum permissible limit of
the repeatability range (R0, MPL)
SP25M
(stylus: ø4×50 mm)		 2.2 + 3.5L/1000 (19 to 21 °C) 2.2
2.5 + 4.2L/1000 (15 to 25 °C)
2.9 + 5.0L/1000 (10 to 30 °C)
3.2 + 5.7L/1000 (5 to 35 °C)
3.6 + 6.5L/1000 (5 to 40 °C)
TP7M
(stylus: ø4×18 mm)		 2.5 + 3.5L/1000 (19 to 21 °C) 2.5
2.8 + 4.2L/1000 (15 to 25 °C)
3.2 + 5.0L/1000 (10 to 30 °C)
3.5 + 5.7L/1000 (5 to 35 °C)
3.9 + 6.5L/1000 (5 to 40 °C)
TP20
(stylus: ø4×10 mm)		 2.7 + 3.5L/1000 (19 to 21 °C) 2.7
3.0 + 4.2L/1000 (15 to 25 °C)
3.4 + 5.0L/1000 (10 to 30 °C)
3.7 + 5.7L/1000 (5 to 35 °C)
4.1 + 6.5L/1000 (5 to 40 °C)

Note 1: L= Arbitrary measuring length (unit: mm)
Note 2: The index table is optional.





Scanning accuracy ISO 10360-5: 2020

Unit: μm

Applied probe Maximum permissible scanning mode form error
on a sphere (P Form.Sph.Scan:PP: Tact,MPE)
SP25M (stylus: ø4×50 mm) 3.8
Maximum permissible scanning mode time
(τ Sph.Scan: PP: Tact,MPL)
30 sec


Temperature environment
  Temperature
Accuracy assurance conditions Temperature range 5 to 40 °C
Temperature variation 2 °C per hour
10 °C per 24 hours
Temperature gradient Vertical: 1 °C per meter
Horizontal: 1 °C per meter

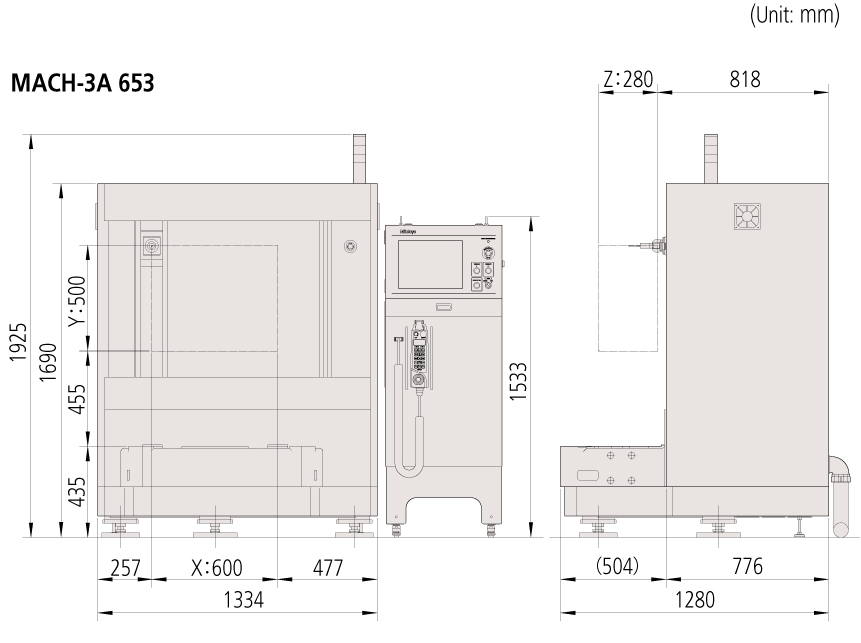

Dimension

External Dimensions
