In-line CNC CMM

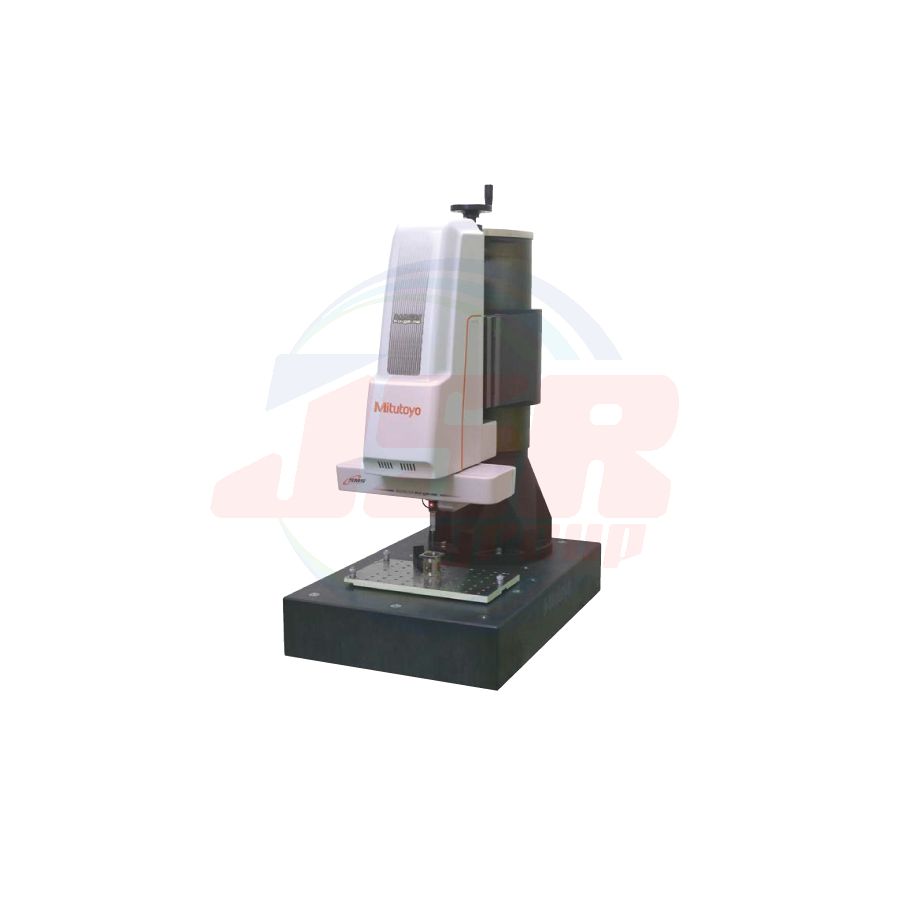

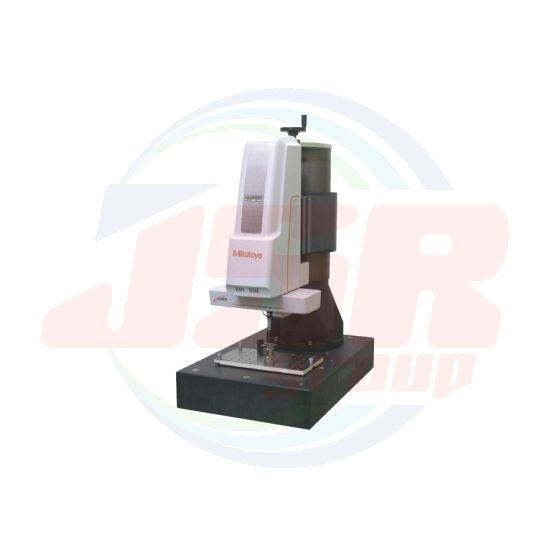

MACH Ko-ga-me
A standalone CNC CMM measuring head can also be integrated with a single- or multi-axis machine to create a system to measure larger workpieces.
ข้อมูลเพิ่มเติม
| แบรนด์สินค้า |
MITUTOYO |
| Order No. |
MACH Ko-ga-me |
| Main unit |
SPECIFICATIONS
| KGM12128-C |
| Measuring range (mm) |
X axis |
120 mm |
| Y axis |
120 mm |
| Z axis |
80 mm |
| Resolution |
0.00002 mm (0.02 μm) |
| Operating speeds |
CNC MODE |
Max. 200 for each axis mm/s;
Max. combined speed 340 mm/s |
| 1 to 15 mm/s (Measuring speed) |
CNC Mode
(MANUAL) |
Max. 200 for each axis mm/s;
Max. combined speed 250 mm/s |
| 1 to 15 mm/s (Measuring speed) |
| Joystick mode |
0 to 80 mm/s (High Speed) |
| 0 to 15 mm/s (Low Speed) |
| 0 to 0.05 mm/s (Fine Speed) |
| Maximum drive acceleration |
Each axis 3900 mm/s²;
Max. combined acceleration 6750 mm/s² |
| Guide system |
Direct-acting hard bearing |
| Drive method |
DC motor+ball screw (Speed/ position feedback) |
|
Scale type
|
Linear encoder |
|
| Accuracy |
Accuracy ISO 10360-2: 2009
(Unit: μm)
| Probe used |
Temperature
range |
Max. permissible length
measurement error (E0, MPE) |
Maximum permissible limit of
the repeatability range (R0, MPL) |
TP200
(stylus: ø3×10 mm) |
19 to 21 °C |
2.4 + 5.7L/1000 μm |
1.9 |
| 15 to 25 °C |
2.7 + 6.4L/1000 μm |
| 10 to 30 °C |
3.1 + 7.2L/1000 μm |
| 10 to 35 °C |
3.4 + 7.9L/1000 μm |
SP25M
(stylus: ø4×50 mm) |
19 to 21 °C |
2.4 + 5.7L/1000 μm |
1.3 |
| 15 to 25 °C |
2.7 + 6.4L/1000 μm |
| 10 to 30 °C |
3.1+ 7.2L/1000 μm |
| 10 to 35 °C |
3.4+ 7.9L/1000 μm |
Single stylus form error ISO 10360-5: 2020
Unit: μm
| Probe used |
Maximum permissible singlestylus form error
(P Form.Sph.1×25:SS: Tact,MPE) |
TP200
(stylus: ø3×10 mm) |
2.2 |
SP25M
(stylus: ø4×50 mm) |
2.2 |
Scanning accuracy ISO 10360-5: 2020
Unit: μm
| Applied probe |
Maximum permissible scanning mode form error
on a sphere (P Form.Sph.Scan:PP: Tact,MPE) |
SP25M
(stylus: ø4×50 mm) |
2.7 |
Maximum permissible scanning mode time
(τ Sph.Scan: PP: Tact,MPL) |
| 30 sec |
|
| Temperature environment |
| |
Temperature |
| Accuracy assurance conditions |
Temperature range |
10 to 35 °C |
| Temperature variation |
2 °C per hour |
| 10 °C per 24 hours |
| Temperature gradient |
1 °C per meter (Both vertically and horizontally) |
|
