MACH-V 9106 | In-line CNC Coordinate Measuring System - MACH Series | MITUTOYO
In-line CNC CMM

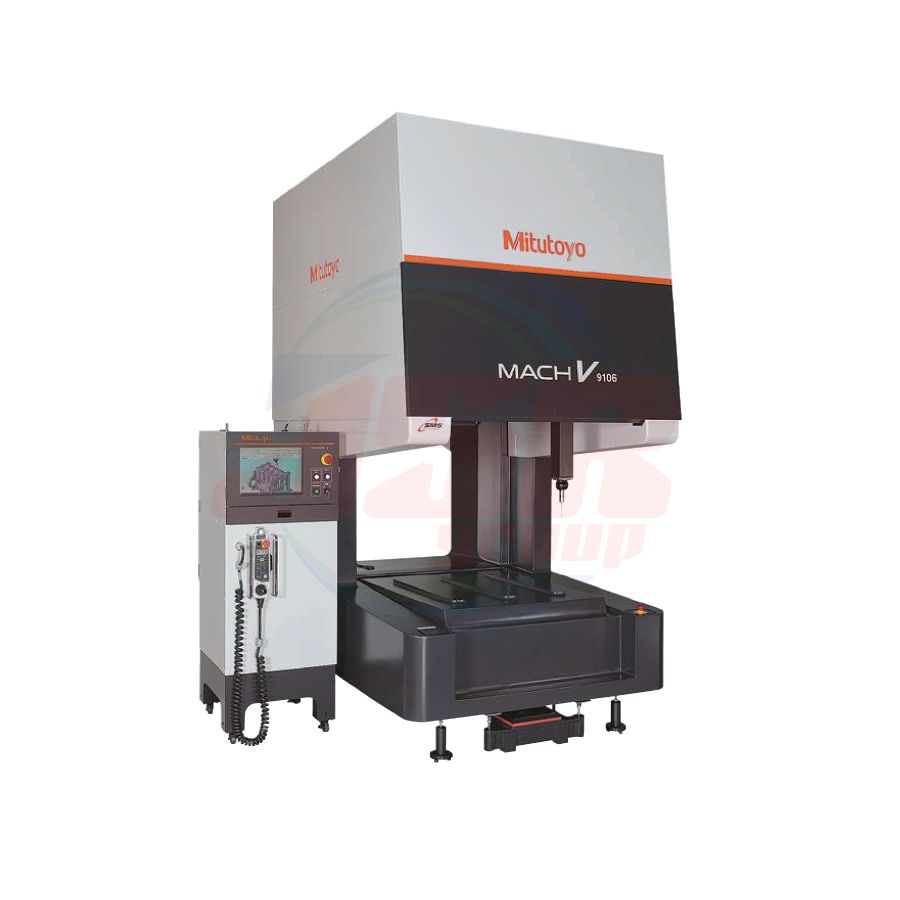

MACH-V 9106
The CNC coordinate measuring machine for in-line use provides high acceleration and high-speed movement to enable high-throughput measurements.
ข้อมูลเพิ่มเติม
| แบรนด์สินค้า |
MITUTOYO |
| Order No. |
MACH-V 9106 |
| Main unit |
SPECIFICATIONS
| MACH-V9106 |
| Measuring range (mm) |
X axis |
900 mm |
| Y axis |
1000 mm |
| Z axis |
600 mm |
| Resolution |
0.0001 mm (0.1 μm) |
| Guide system |
Linear guide on each axis |
| Operating speeds |
CNC MODE |
Max. 500 for each axis mm/s;
Max. combined speed 866 mm/s |
| 1 to 20 mm/s (Measuring speed) |
| Joystick mode |
0 to 80 mm/s (High Speed) |
| 0 to 3 mm/s (Low Speed) |
| 0 to 0.05 mm/s (Fine Speed) |
| Maximum drive acceleration |
Each axis 5063 mm/s²;
Max. combined acceleration 8770 mm/s² |
| Scale type |
Linear encoder |
| Workpiece |
Maximum height |
800 mm |
| Maximum mass |
150 kg |
|
Mass of machine
(including the mounting stand and controller)
|
4130 kg |
|
| Accuracy |
Accuracy
Length measurement error ISO 10360-2: 2009
(Unit: μm)
| Probe used |
Temperature
range |
Max. permissible length
measurement error (E 0, MPE) |
Maximum permissible limit of
the repeatability range (R0, MPL) |
SP25M
(stylus: ø4×50 mm) |
19 to 21 °C |
E0, MPE =2.5 + 3.5L/1000 μm |
2.2 |
| E150, MPE =2.5 + 3.5L/1000 μm |
| 18 to 22 °C |
E0, MPE =2.7 + 3.8L/1000 μm |
| E150, MPE =2.7 + 3.8L/1000 μm |
| 15 to 25 °C |
E0, MPE =2.9 + 4.3L/1000 μm |
| E150, MPE =2.9 + 4.3L/1000 μm |
| 5 to 35 °C |
E0, MPE =3.6 + 5.8L/1000 μm |
| E150, MPE =3.6 + 5.8L/1000 μm |
TP7M
(stylus: ø4×18 mm) |
19 to 21 °C |
E0, MPE =2.5 + 3.5L/1000 μm |
2.5 |
| 18 to 22 °C |
E0, MPE =2.7 + 3.8L/1000 μm |
| 15 to 25 °C |
E0, MPE =2.9 + 4.3L/1000 μm |
| 5 to 35 °C |
E0, MPE =3.6 + 5.8L/1000 μm |
Single stylus form error ISO 10360-5: 2020
Unit: μm
| Probe used |
Maximum permissible singlestylus form error
(P Form.Sph.1×25:SS: Tact,MPE) |
| SP25M (stylus: ø4×50 mm) |
2.2 |
| TP7M (stylus: ø4×18 mm) |
2.5 |
Scanning accuracy ISO 10360-5: 2020
Unit: μm
| Applied probe |
Maximum permissible scanning mode form error
on a sphere (P Form.Sph.Scan:PP: Tact,MPE) |
| SP25M (stylus: ø4×50 mm) |
2.2 |
Maximum permissible scanning mode time
(τ Sph.Scan: PP: Tact,MPL) |
| 40 sec |
|
| Temperature environment |
| |
Temperature |
| Accuracy assurance conditions |
Temperature range |
5 to 35 °C |
| Temperature variation |
2 °C per hour |
| 10 °C per 24 hours |
| Temperature gradient |
Vertical: 1 °C per meter |
| Horizontal: 1 °C per meter |
|

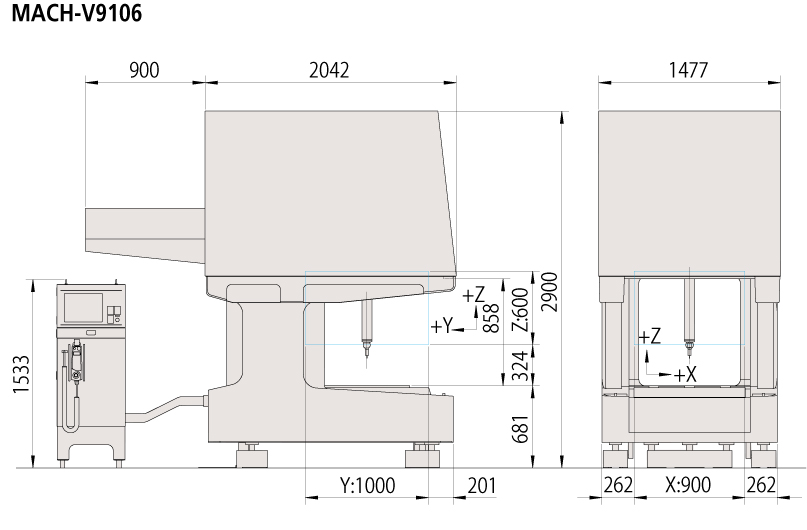

External Dimensions
(Unit: mm)
