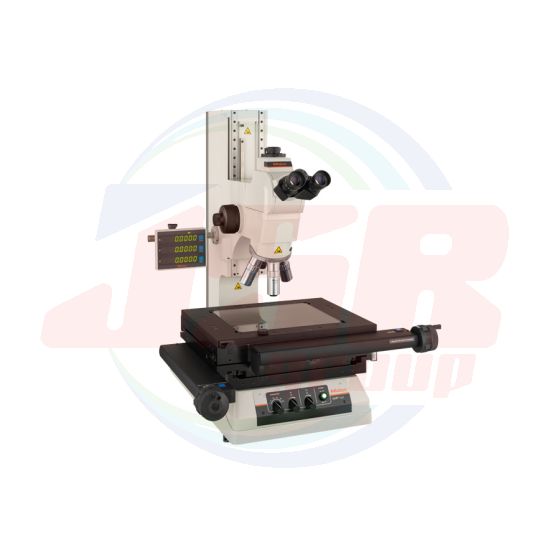

Measuring Microscope
MF-U Series
Integration of metallurgical and measurement microscope functions provides high-resolution observation and a high-accuracy measurement solution.
Measuring accuracy (X Y): (2.2 + 0.02L) μm
(L: Measuring length in mm)
Observation image: Bright-field / Dark-field
SPECIFICATIONS
| Main unit | 1010 | 2010 | 2017 | 3017 | 4020 | |
| Without Z-axis scale | MF-UB1010D | MF-UB2010D | MF-UB2017D | MF-UB3017D | MF-UB4020D | |
| 176-976* | 176-977* | 176-978* | 176-979* | 176-980* | ||
| With Z-axis scale | MF-UD1010D | MF-UD2010D | MF-UD2017D | MF-UD3017D | MF-UD4020D | |
| 176-986* | 176-987* | 176-988* | 176-989* | 176-990* | ||
| Measuring accuracy*1 (20 °C, when not loaded) |
(2.2+0.02L) μm L: measuring length (mm) | |||||
| Minimum reading | High accuracy digital scale is mounted 1/0.5/0.1 μm switchable |
|||||
| Observation | Optical tube | Tilting optical tube is provided as standard TV camera port for all models (observation/TV camera = 50/50*4 is provided as standard Reticle (broken cross-hair, line width: 5 μm) is provided as standard Various reticles are optional. |
||||
| Incline angle | Angle of column: 0-30° | |||||
| Observation image | Erect image | |||||
| Observation method*2 | Bright-field observation/Dark-field observation (Only for MF-UC and MF-UD types) Simple polarization and differential interference are optional. |
|||||
| Eyepiece | 10X (eyepiece field number: 24) is provided as standard 15X, 20X are optional. |
|||||
| Turret*2 | Manual or motor drive | |||||
| Objective*2 | Bright-field (BF) | M Plan Apo, G Plan Apo series | ||||
| Bright/Dark-field (BD) | BD Plan Apo series | |||||
| Stage | Measuring range | 100×100 mm | 200×100 mm | 200×170 mm | 300×170 mm | 400×200 mm |
| Max. table loading | 10 kg | 20 kg | 15 kg | |||
| Feed mechanism | Manual and Quick-release mechanism (zero-set switch is incorporated) | |||||
| Swiveling angle | — | ±5° | ±3° | |||
| Internal light source*2 |
LED Illumination Unit | White LED (transmitted/vertical reflected), no step modulated light | ||||
| Halogen Illumination Unit | 12 V, 50 W halogen (transmitted), no step modulated light 12 V, 100 W (vertical reflected), no step modulated light*5 15 V, 150 W (vertical reflected), no step modulated light are optional.*5 |
|||||
| External light source | Dual swan-neck light pipe are optional. | |||||
| Z axis | Feed mechanism | Manual handles on both sides (coarse: 30 mm/rotation, fine: 0.2 mm/rotation) | ||||
| Max. workpiece height | 150 mm | 220 mm | ||||

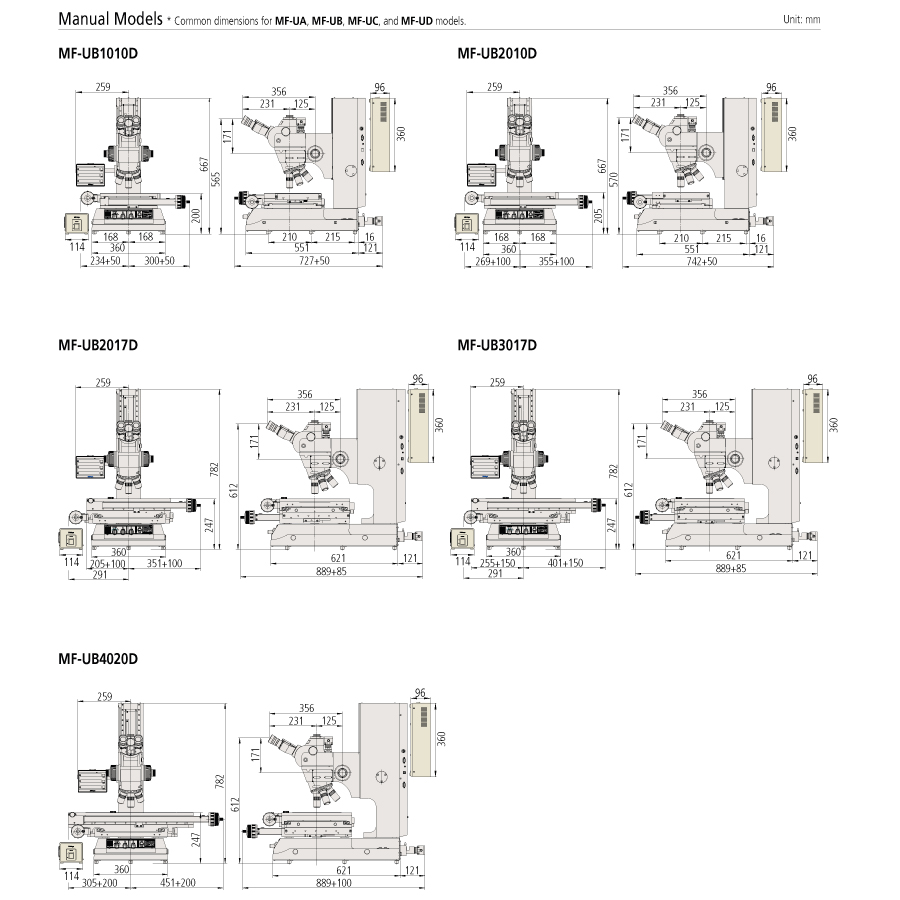

| Dimensions (W×D×H) |
Main unit | 562×730×667 mm | 624×745×667 mm | 642×892×782 mm | 692×892×782 mm | 756×892×782 mm |
| Control unit | — | |||||
| Control unit for illumination unit | 114×360×96 mm | |||||
| Output | RS-232C output, USB output for Vision Unit | |||||
| Mass | Approx. 70 kg | Approx. 75 kg | Approx. 150 kg | Approx. 160 kg | Approx. 165 kg | |
| Max. power consumption*3 | LED: 55 W Halogen: 190 W (vertical reflected 12 V, 100 W) and 240 W (vertical reflected 15 V, 150 W) AC power input connector: 100 to 240 V |
|||||
* Add "-11" for mm models and "-13" for mm/inch models to the end of each code number.
*1 Inspected in conformance with JIS B 7153
*2 Required optional accessory
*3 When the main unit and the required optional light source are used (For motor-driven z-axis model, the contour unit is included.)
*4 C mount is required separately
