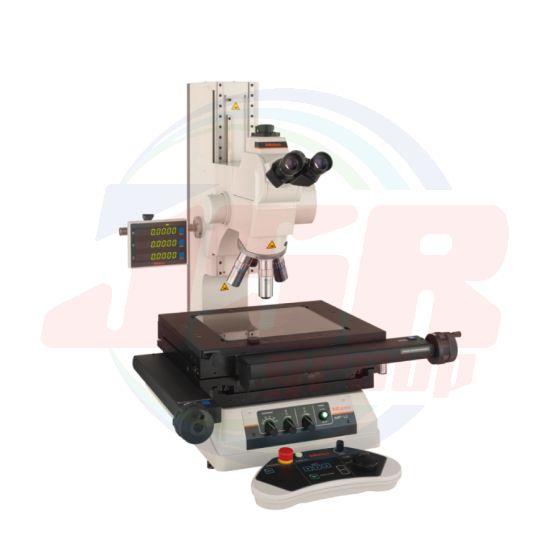

MF-UJ Series
Measuring Microscope with Z-axis Motor Drive
MF-UJ Series
High-accuracy measuring microscopes with a motor drive that can bring the microscope into focus in the “blink of an eye” (approximately 1 second).
Measuring accuracy (X Y): (2.2 + 0.02L) μm
(L: Measuring length in mm)
Observation image: Bright-field / Dark-field / Polarization / Differential
Interference Contrast
Z axis feed mechanism: Motor drive
SPECIFICATIONS
| Main unit | 2017 | 3017 | 4020 | |
| BF (Bright-field) |
With Z-axis scale | MF-UJ2017D | MF-UJ3017D | MF-UJ4020D |
| 176-894* | 176-895* | 176-896* | ||
| Measuring accuracy*1 (20 °C, when not loaded) |
(2.2+0.02L) μm L: measuring length (mm) | |||
| Minimum reading | High accuracy digital scale is mounted 1/0.5/0.1 μm switchable |
|||
| Observation | Optical tube | Tilting optical tube is provided as standard TV camera port for all models (observation/TV camera = 50/50*4 is provided as standard Reticle (broken cross-hair, line width: 5 μm) is provided as standard Various reticles are optional. |
||
| Incline angle | Angle of column: 0-30° | |||
| Observation image | Erect image | |||
| Observation method*2 | Bright-field observation/Dark-field observation (Only for MF-UC and MF-UD types) Simple polarization and differential interference are optional. |
|||
| Eyepiece | 10X (eyepiece field number: 24) is provided as standard 15X, 20X are optional. |
|||
| Turret*2 | Manual or motor drive | |||
| Objective*2 | Bright-field (BF) | M Plan Apo, G Plan Apo series | ||
| Bright/Dark-field (BD) | BD Plan Apo series | |||
| Stage | Measuring range | 200×170 mm | 300×170 mm | 400×200 mm |
| Max. table loading | 20 kg | 15 kg | ||
| Feed mechanism | Manual and Quick-release mechanism (zero-set switch is incorporated) | |||
| Swiveling angle | ±5° | ±3° | ||
| Internal light source*2 |
LED Illumination Unit | White LED (transmitted/vertical reflected), no step modulated light | ||
| Halogen Illumination Unit | 12 V, 50 W halogen (transmitted), no step modulated light 12 V, 100 W (vertical reflected), no step modulated light*5 15 V, 150 W (vertical reflected), no step modulated light are optional.*5 |
|||
| External light source | Dual swan-neck light pipe are optional. | |||
| Z axis | Feed mechanism | Motor drive (Maximum measuring speed: 20 mm/s), lower limit setting (for collision avoidance with a workpiece) |
||
| Max. workpiece height | 220 mm | |||

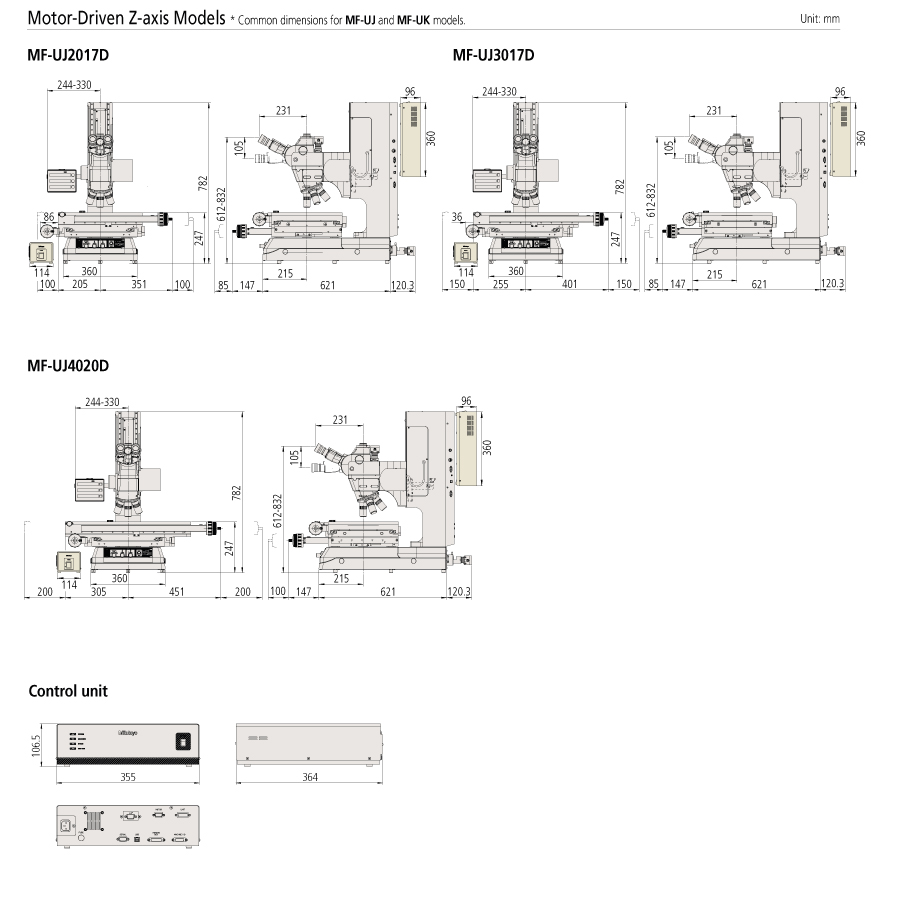

| Dimensions (W×D×H) |
Main unit | 642×892×782 mm | 692×892×782 mm | 756×892×782 mm |
| Control unit | 355×364×106.5 mm | |||
| Control unit for illumination unit | 114×360×96 mm | |||
| Output | RS-232C output, USB output for Vision Unit | |||
| Mass | Approx. 160 kg | Approx. 170 kg | Approx. 175 kg | |
| Max. power consumption*3 | LED: 285 W Halogen: 420 W (vertical reflected 12 V, 100 W) and 470 W (vertical reflected 15 V, 150 W) AC power input connector: 100 to 240 V |
|||
* Add "-11" for mm models and "-13" for mm/inch models to the end of each code number.
*1 Inspected in conformance with JIS B 7153
*2 Required optional accessory
*3 When the main unit and the required optional light source are used (For motor-driven z-axis model, the contour unit is included.)
*4 C mount is required separately
