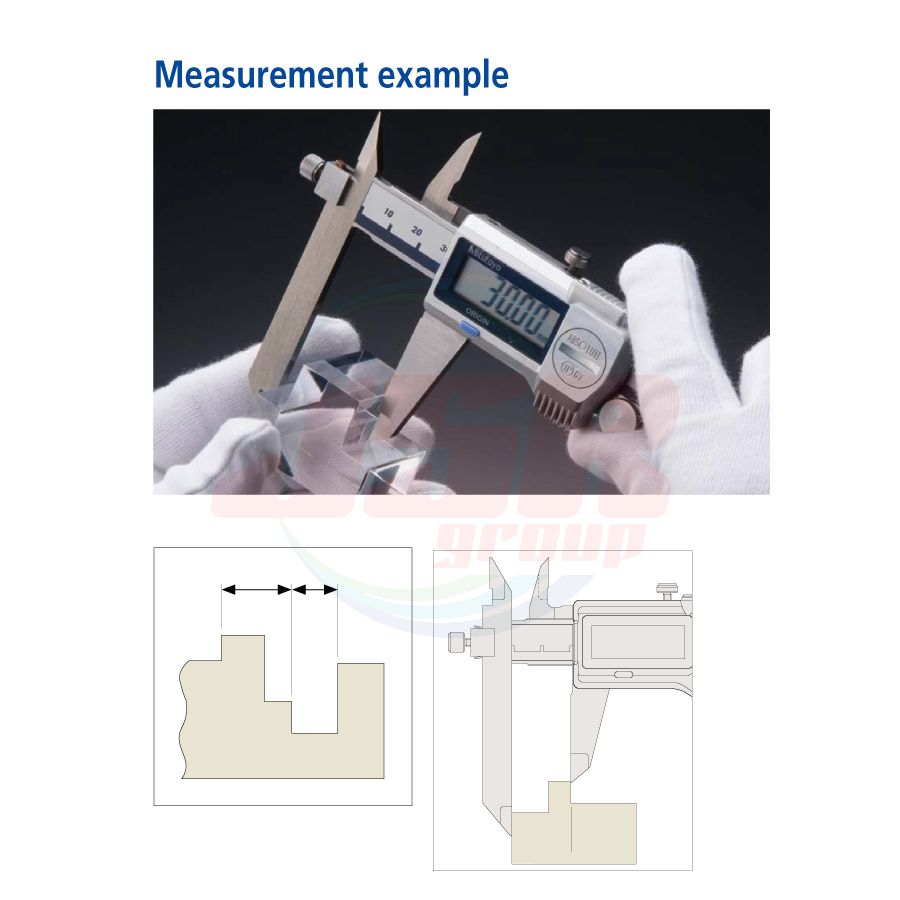

• The beam-mounted jaw can be adjusted to facilitate measurement of stepped sections.
SPECIFICATIONS
Metric ___ Digimatic model
Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*² | |
E MPE | S MPE | |||
573-601-20 | 0 - 150 | 0.01 | ±0.02 | ±0.04 |
573-611-20*¹ | 0 - 150 | |||
573-602-20 | 0 - 200 | |||
573-612-20*¹ | 0 - 200 | |||
573-604-20 | 0 - 300 | ±0.03 | ±0.05 | |
573-614-20*¹ | 0 - 300 |
Inch / Metric ___ Digimatic model
Order No. | Range | Resolution | Maximum permissible error*² | |
E MPE | S MPE | |||
573-701-20 | 0 - 6 in/0 - 150 mm | 0.0005 in/0.01 mm | ±0.001 in/±0.02 mm | ±0.002 in/±0.04 mm |
573-702-20 | 0 - 8 in/0 - 200 mm | |||
573-704-20 | 0 - 12 in/0 - 300 mm | ±0.0015 in/±0.03 mm | ±0.0025 in/±0.05 mm |
• Dust / Water protection level: IP67 (IEC 60529)*3
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Without thumb roller
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.
แบรนด์สินค้า | MITUTOYO |
---|

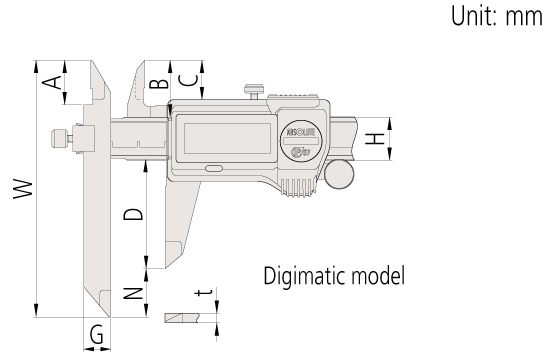

Order No. | Model | Range (mm) | A | B | C | D | G | H | N | W | T |
573-601-20 | Digimatic model | 0 - 150 | 16.5 | 21 | 14.6 | 40 | 10 | 16 | (18) | 95 | 3.5 |
573-602-20 | 0 - 200 | 20 | 24.5 | 18.1 | 50 | (4.5) | |||||
573-604-20 | 0 - 300 | 22 | 27.5 | 19.8 | 64 | 15 | 20 | (23.5) | 135 | 3.8 |
