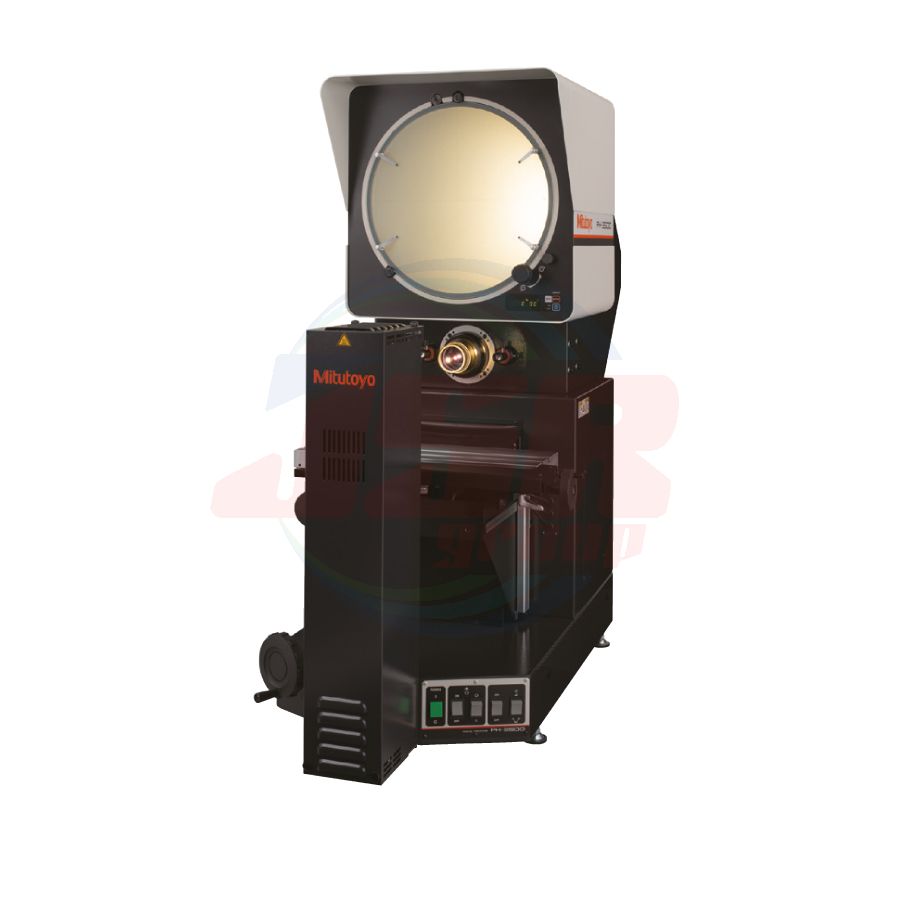

Standard in the edged tool industry. Perfect for contour observation and measurement of edged tools (such as end mills, cutters, and tipped saws), screws, springs, and the like.
Equipped with a high-rigidity stage with a long stroke of 254×152 mm and a load-carrying capacity of 45 kg, supporting even long, heavy workpieces.
24 V, 150 W, 50 h Halogen bulb (512305) Telecentric, Heat-absorbing filter Cooling fan, 2-step (High/Low) brightness switch Can be used in conjunction with color filter
100V, 110V, 120V AC (172-868-11) 220V, 230V, 240V AC (172-868-12) AC external switching
50/60 Hz Power cord (2 m)

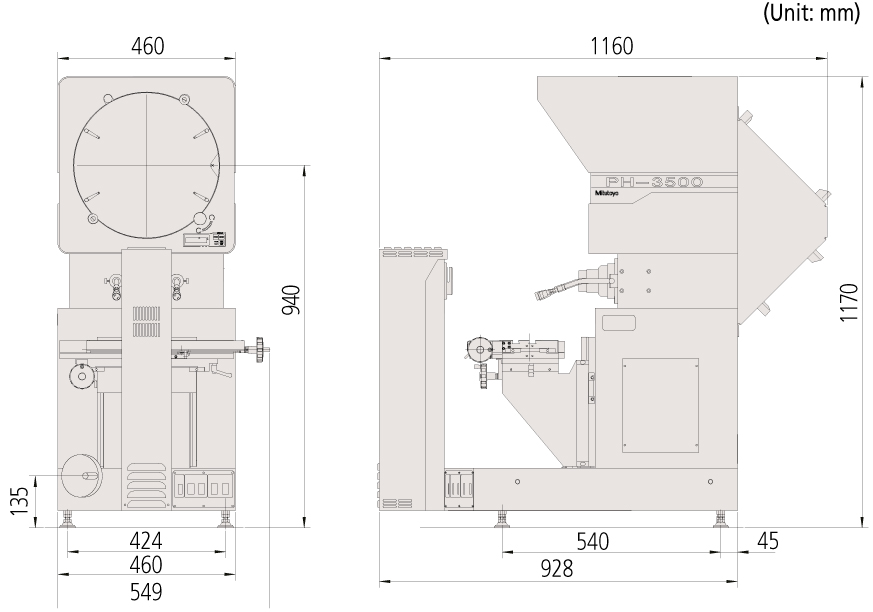

Mass
150 kg
Power consumption
Approx. 410 W
*1 The projected image of the workpiece is erect but inverted horizontally, which means that the vertical orientation and displacement direction of the image is the same as on the workpiece side, but the horizontal orientation and displacement direction are reversed.
*2 Our magnification accuracy standard only checks contour illumination (that it is ±0.1 % or less). (If the magnification accuracy under contour illumination is a permissible value, that under surface illumination will also be guaranteed to be within ±0.15 % of our standard.)
Note 1: X and Y counters are not built into the projector main unit. If a counter display is required, it is recommended that a QM-Data200 or KA-212 is purchased separately. Note 2: The indicated value of a measurement may be slightly smaller than the actual value due to optical distortion caused by the illumination conditions.
Stages
XY range
254×152.4 mm
PH-3515F main unit
172-868-11A
Measuring unit
Digital scale
Quick-release mechanism
Only X-axis
Stage size
450×146 mm
Dovetail groove
Two (Pitch = 43 mm)
Minimum swivel angle reading
30 °
Maximum measuring diameter (horizontally fixed)*
ø340 mm
Swivel adjustment range
±10 °
Maximum loading
45 kg
Photo: Cutter (Outside diameter of 175 mm max.) is mounted on the tipped-saw support fixure (172-001). * When using the projection lens 10X (Standard accessory).
