High-accuracy Roundness/ Cylindricity Measuring System

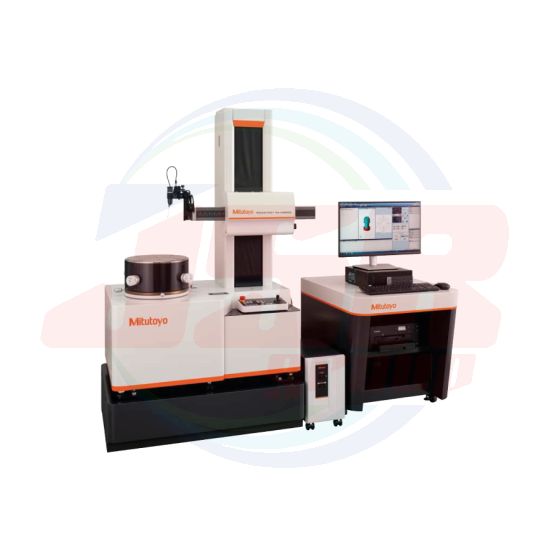

ROUNDTEST RA-H5200
ROUNDTEST RA-H5200 PLUS
Large roundness measuring systems designed to perform automatic centering and leveling adjustments and high-speed, high-accuracy measurements.
Rotational accuracy (Radial direction): (0.02 + 3.5H/10000) μm
(H: Probing height in mm)
Maximum load: 80 kg

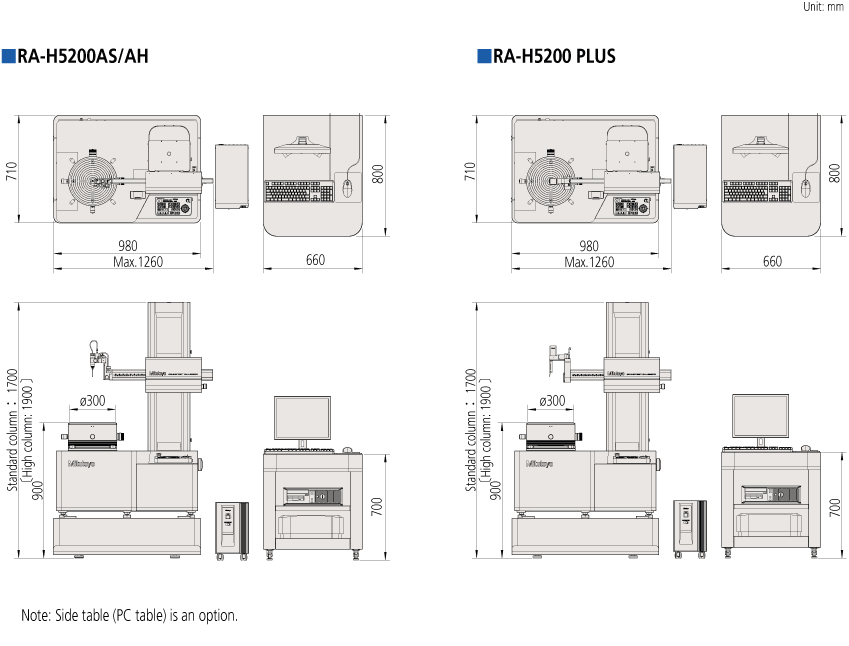

SPECIFICATIONS
| Model No. | RA-H5200AS | RA-H5200AH | RA-H5200 PLUS | |||
| Z-axis | Standard column | High column | Standard column | High column | ||
| Turntable unit | Rotational accuracy | Radial direction | (0.02+3.5 H/10000) μm (H: probing height (mm)) | |||
| Axial direction | (0.02+3.5X/10000) μm (X: distance from rotational center (mm)) | |||||
| Rotating speed | 2,4,6,10 rpm (Auto centering: 20 rpm) | |||||
| Table effective size | ø300 mm | |||||
| Centering/leveling adjustment | A.A.T. | |||||
| Centering adjustment range | ±5 mm | |||||
| Leveling adjustment range | ±1 ° | |||||
| Max. lording weight | 80 kg (Auto centering: 65 kg) | |||||
| Max. probing diameter | ø400 mm | ø356 mm | ||||
| Max. loading diameter | ø680 mm | |||||
| Vertical drive unit (Z-axis) |
Straightness accuracy (λc2.5 mm) |
0.05 µm/100 mm 0.14 µm/350 mm |
0.05 µm/100 mm 0.2 µm/550 mm |
0.05 µm/100 mm 0.14 µm/350 mm |
0.05 µm/100 mm 0.2 µm/550 mm |
|
| Parallelism to rotation center (Reterential generattix line) |
0.2 µm/350 mm | 0.32 µm/550 mm | 0.2 µm/350 mm | 0.32 µm/550 mm | ||
| Traverse speed | Max. 60 mm/s (Measurement: 0.5/1.0/2.0/5.0 mm/s) | |||||
| Vertical Travel amount | 350 mm | 550 mm | 350 mm | 550 mm | ||
| Max. probing height |
ID/OD | 350 mm | 550 mm | 350 mm | 550 mm | |
| Max. probing depth (with standard stylus) |
85 mm for ø32 mm or more 50 mm for ø7 mm or more |
104 mm for ø32 mm or more 26 mm for ø12.7 mm or more |
||||
| Radial drive unit (X-axis) |
Straightness accuracy | 0.4 μm/200 mm (λc2.5 mm) | ||||
| Horizontal to rotation center | 0.5 μm/200 mm (Reterential generattix line) | |||||
| Traverse range | 225 mm (Including -25 mm travel from rotational center) | |||||
| Traverse speed | Max. 50 mm/s (Measurement: 0.5/1.0/2.0/5.0 mm/s) | |||||
| Detector | Measuring force | approx 10~50 mN (switching 5 levels) | approx 40 mN | |||
| Stylus design, material | ø1.6 mm tungsten carbide ball | ø1.6 mm tungsten carbide ball | ||||
| Measuring range |
Standard | ±400 μm / ±40 μm / ±4 μm | ±400 μm / ±40 μm / ±4 μm | |||
| Follow | ±5 mm | ±5 mm | ||||
| Other | In-out switching feature Measuring force switching feature (5-step) Collision detection function for Z-axis direction Stylus angle scale markings (±45 °) |
Accidental touch functio | ||||
| Other | Power supply | 100 V~240 V | ||||
| Air pressure | 0.39 MPa | |||||
| Air consumption | 45 L/min (Standard state) (Air supply of 80 L/min or higher) | |||||
| Weight (measurement main unit) |
650 kg | 670 kg | 650 kg | 670 kg | ||
| Weight (vibration isolator) | 170 kg | |||||
