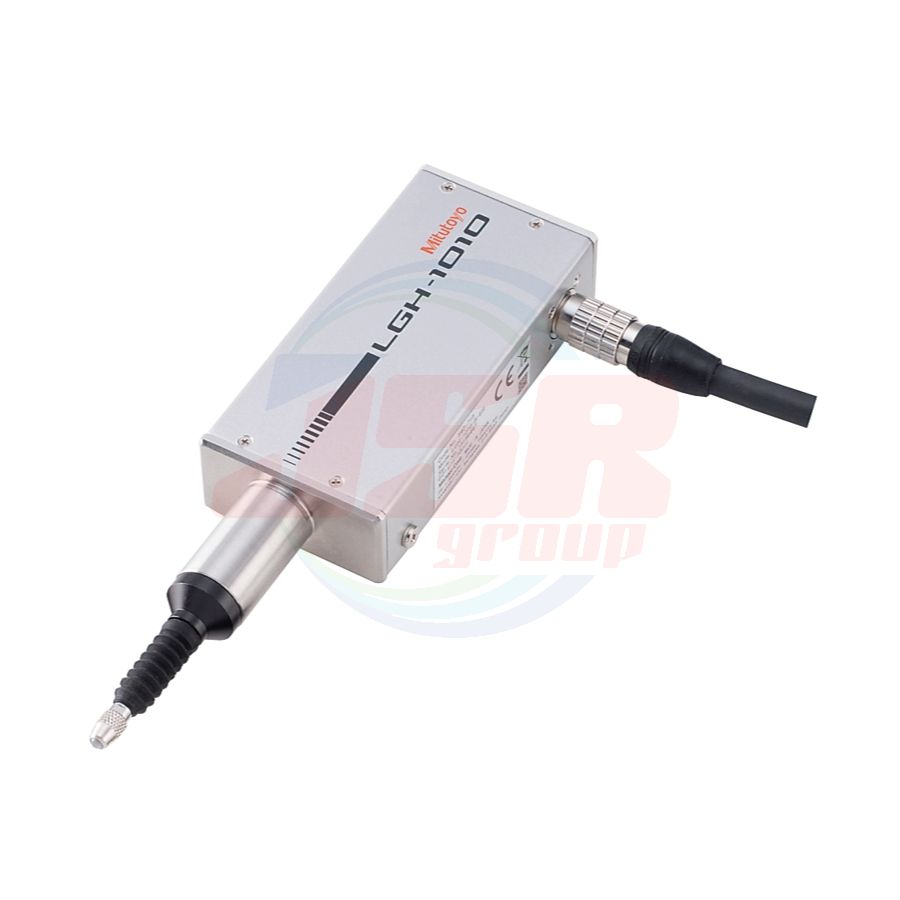

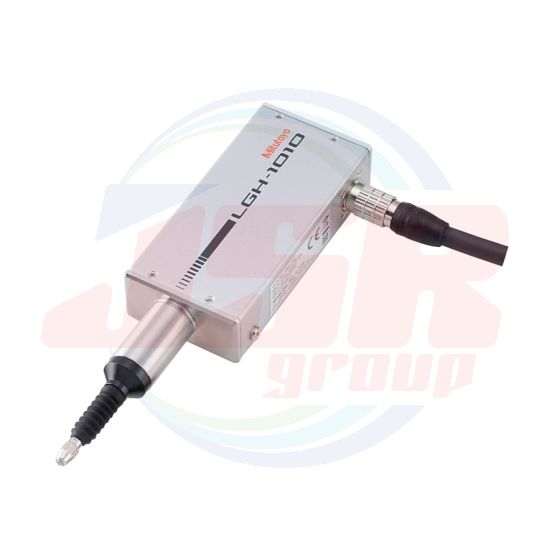

SERIES 542 ̶ High-accuracy/resolution Linear Gage | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
LGH
• This series has achieved very high accuracy combined with a resolution of 0.01/0.005 μm (according to model), practically equivalent to that of a laser interferometer, and a wide measuring range of 10 mm.
• A compact body design makes a significant contribution to a downsizing of this gage itself, which is best suited for calibration/evaluation of master gages as well as measurement of high-precision parts and as a length measuring sensor incorporated into high-precision positioning/control units.
• A low measuring force model is available for those applications where measurement of easily deformed or damaged workpieces is required.
• Every LGH Series gage is bundled with a dedicated counter.

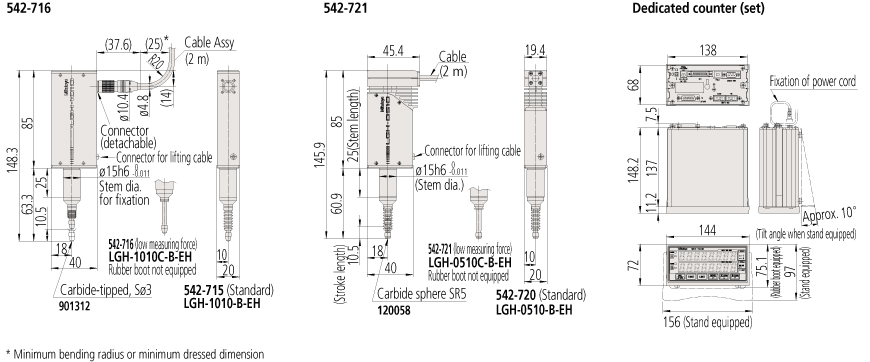

Specifications
| Type | Resolution 0.01 μm/Accuracy 0.2 μm model | ||
| Order No. | 542-715 (Standard) | 542-716 (Low measuring force) | |
| Measuring range | 10 mm | ||
| Resolution | 0.01 μm (0.05 μm, 0.1 μm, 0.5 μm, 1 μm can be selected from the counter) | ||
| Measuring accuracy (20 °C)*¹ | 0.2 μm | ||
| Repeatability (20 °C)*¹ | 0.1 μm (2σ) | ||
| Retrace error (20 °C)*¹ | 0.1 μm | ||
| Measuring force | Contact point downwards | 0.65 N or less | Approx. 0.12 N |
| Contact point horizontal | 0.55 N or less | Not applicable | |
| Contact point upwards | 0.45 N or less | Not applicable | |
| Position detection method | Optical reflection type linear encoder | ||
| Detectable operation speed | In normal measurement: 700 mm/sec; for peak detection: 120 mm/sec | ||
| Mass of gage head | Approx. 370 g | ||
| Contact point | Carbide tipped, Sø3 mm (M2.5 (P=0.45) ×5 mm) , standard contact point 901312 | ||
| Stem | ø15 mm | ||
| Bearing | Linear ball type | ||
| Output cable length | Approx. 2 m | ||
| Operating temperature/humidity | 0 to 40 °C (Reference temperature 20 °C)/20 to 80% RH (non-condensing) | ||
| Storage temperature/humidity | –10 to 60 °C/20 to 80% RH (non-condensing) | ||
| Counter Specifications | |||
| Display range | ± 999.99999 mm | ||
| Functions | Zero-set, preset, direction switch, tolerance judgment (3 steps/5 steps), RS-LINK | ||
| Peak hold function | Yes | ||
| Interface | RS-232C, USB (only for SENSORPAK) , Digimatic (Printer: DP-1VA LOGGER)*³, I/O Connector | ||
| External output | ・ RS-232C: counting data ・ Digimatic output: counting data*³ ・ I/O connector: counting data (simplified BCD), tolerance judgment result, simplified analog output |
||
| External control | Zero-set, preset, data hold, peak measurement mode selection, peak clear | ||
| Power supply | Suppplied AC Adapter, or +12 to 24 V DC, max. 700 mA | ||
| Power consumption | 8.4 W (max. 700 mA), Ensure at least 1 A power supply per unit. | ||
| Mass of counter | Approx. 900 g (AC Adapter excluded) | ||
| Standard accessories | Wrench for contact point, rubber boot, stand, washer (for counter), AC Adapter, AC cord, DC plug, user's manual, inspection certificate |
||
| Type | Resolution 0.005 μm/Accuracy 0.1 μm model | ||
| Order No. | 542-720 (Standard) | 542-721 (Low measuring force) | |
| Measuring range | 10 mm | ||
| Resolution | 0.005 μm (0.01 μm, 0.05 μm, 0.1 μm can be selected from the counter) | ||
| Measuring accuracy (20 °C)*¹ | 0.1 μm | ||
| Repeatability (20 °C)*¹ | 0.02 μm (2σ) | ||
| Retrace error (20 °C)*¹ | 0.05 μm | ||
| Measuring force | Contact point downwards | 0.65 N or less | Approx. 0.12 N |
| Contact point horizontal | 0.55 N or less | Not applicable | |
| Contact point upwards | 0.45 N or less | Not applicable | |
| Position detection method | Ultra-high accuracy transmission type linear encoder | ||
| Detectable operation speed | In normal measurement: 250 mm/sec | ||
| Mass of gage head | Approx. 370 g | ||
| Contact point | Carbide sphere SR5 (M2.5 (P=0.45) ×5 mm), standard contact point 120058 | ||
| Stem | ø15 mm | ||
| Bearing | Linear ball type | ||
| Output cable length | Approx. 2 m | ||
| Operating temperature/humidity | 15 to 25 °C (Reference temperature 20 °C) /30 to 60% RH (non-condensing) | ||
| Storage temperature/humidity | –10 to 60 °C/20 to 80% (non-condensing)*² | ||
| Counter Specifications | |||
| Display range | ± 99.999995 mm | ||
| Functions | Zero-set, preset, direction switch, tolerance judgment (3 steps/5 steps), RS-LINK | ||
| Peak hold function | No | ||
| Interface | RS-232C, USB (only for SENSORPAK), Digimatic (Printer: DP-1VA LOGGER)*³, I/O Connector | ||
| External output | ・ RS-232C: counting data ・ Digimatic output: counting data*³ ・ I/O connector: counting data (simplified BCD), tolerance judgment result, simplified analog output |
||
| External control | Zero-set, preset, data hold | ||
| Power supply | Suppplied AC Adapter, or +12 to 24 V DC, max. 700 mA | ||
| Power consumption | 8.4 W (max. 700 mA), Ensure at least 1 A power supply per unit. | ||
| Mass of counter | Approx. 900 g (AC Adapter excluded) | ||
| Standard accessories | Wrench for contact point, rubber boot, stand, washer (for counter), AC Adapter, AC cord, DC plug, user's manual, inspection certificate |
||
*1 Applies when used with counter.
*2 The storage temperature/humidity after unpacking are the same as the operating temperature/humidity.
*3 Digimatic output shall be up to 6 digits of data. For data of 7 digits or more, all digits will not be output to the display.
