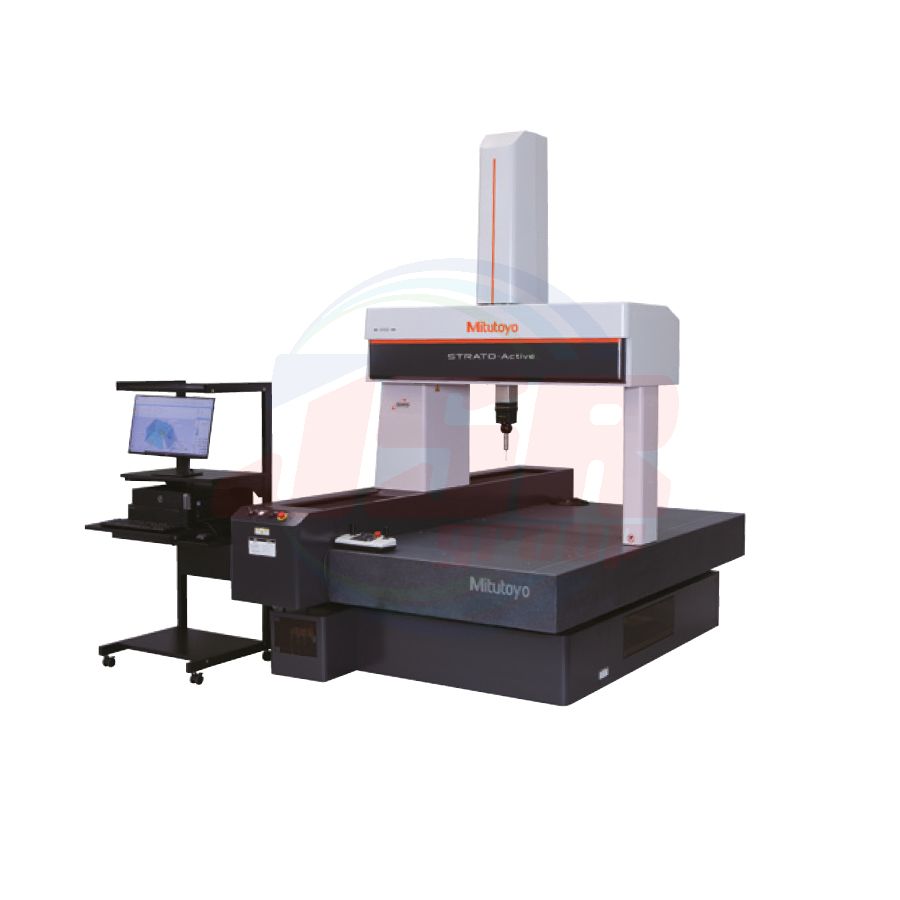

STRATO-Active 7106 | High-accuracy CNC CMM - STRATO-Active| MITUTOYO
High-accuracy CNC CMM
This brings together our advanced precision measurement technologies. The line-up includes models with high-speed and high-acceleration movements.
High-accuracy CNC CMM
STRATO-Active
Offers both high performance and cost-effective measurements.
ข้อมูลเพิ่มเติม
| แบรนด์สินค้า |
MITUTOYO |
| Order No. |
STRATO-Active 7106 |
| Main unit |
SPECIFICATIONS
| STRATO-Active 7106 |
| Measuring range (mm) |
X axis |
700 mm |
| Y axis |
1000 mm |
| Z axis |
600 mm |
| Guide method |
Air bearing on each axis |
| Drive speed |
CNC MODE
(Mode selector switch: AUTO) |
Moving speed |
Max. 300 mm/s (Max. combined speed 519 mm/s) |
| Measuring speed |
1 to 3 mm/s |
CNC MODE
(Mode selector switch:
MANUAL) |
Moving speed |
Max. 138 mm/s (Max. combined speed 239 mm/s) |
| Measuring speed |
1 to 3 mm/s |
| J/S MODE |
High speed |
0 to 80 mm/s |
| Low speed |
0 to 3 mm/s |
| Fine speed |
0 to 0.05 mm/s |
| Drive acceleration |
Each axis 1333 mm/s2 (Max. combined acceleration 2309) |
| Length measuring method |
Linear encoder |
| Resolution |
0.00005 mm |
| Work table |
Material |
Granite |
| Size (table surface) |
876 × 1720 mm |
| Measured object fixing method |
Screw (M8 × 1.25) |
| Workpiece |
Maximum height |
800 mm |
| Maximum mass |
1000 kg |
|
Main unit dimensions (H × W × D)
|
2730 × 1465 × 2000 mm |
| Mass (including the installation platform and control device) |
2150 kg |
| Power source |
Voltage, Frequency |
100 to 120 / 200 to 240 VAC, 50/60 Hz |
| Maximum power consumption |
1.5 kW |
|
| Accuracy |
The following values are guaranteed when using the standard stylus.
Standard stylus (TP200: ø4 × 10, MPP-310Q: ø4 × 18, SP25M: ø4 × 50)
(Unit: μm)
| Title |
Symbol |
Standard |
|
| Length measurement error |
E0,MPE |
ISO 10360-2: 2009
( JIS B 7440-2: 2013) |
1.2+3L/1000 |
| E150,MPE |
1.2+3L/1000 |
| Repeatability range of E0 |
R0,MPL |
1.2 |
| Scanning mode form error on a sphere |
PForm.Sph.Scan:PP:Tact,MPE |
ISO 10360-5: 2020
( JIS B 7440-5: 2022) |
2.0 |
| Scanning mode time |
τSph.Scan:PP:Tact,MPL |
45 s |
| Single-stylus form error |
PForm.Sph.1×25:SS:Tact,MPE |
1.2 |
*guaranteed when using the SP25M probe system with a ø4 × 50 mm stylus [SM25-1+SH25-1+Stylus (ø4 × 50 mm)]. L: measuring length (mm).
|
| Temperature environment |
Guaranteed accuracy temperature
| Temperature range |
18 to 22 °C |
| Temperature change |
Per hour |
1.0 °C |
| Per day |
2.0 °C |
| Temperature gradient |
Vertical |
1.0 °C/m |
| Horizontal |
1.0 °C/m |
|
