Moving speed: Max.350 mm/s for each axis (maximum combined speed: 606 mm/s)
Measuring speed 1 – 3 mm/s
J/S MODE
Moving speed 0 – 80 mm/s
Measuring speed 0 – 3 mm/s
Fine speed 0 – 0.05 mm/s
Drive acceleration
780 mm/s2 for each axis (maximum combined acceleration: 1350 mm/s2)
Measuring method
Linear encoder
Resolution
0.00005 mm
Work table
Material
Granite
Size (table surface)
1850 × 4280 mm
Tapped inserts
M8 × 1.25
Workpiece
Maximum height
1350 mm
Maximum mass
3500 kg
Machine mass (includes the vibration-damping platform and controller, but not workpiece)
15300 kg
Power supply specifications
Power supply voltage: AC100-120/200-240 V±10 %; power supply capacity: 1500 W
Air supply
Pressure
0.4 MPa
Consumption
100 L/min under normal conditions (air source: At least 250 L/min)
Guaranteed accuracy temperature environment
Temperature range
18 to 22 °C
Temperature change
Per hour
1.0 °C
Per 24 hours
2.0 °C
Temperature gradient
vertical/horizontal
1.0 °C/m
* While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
Accuracy

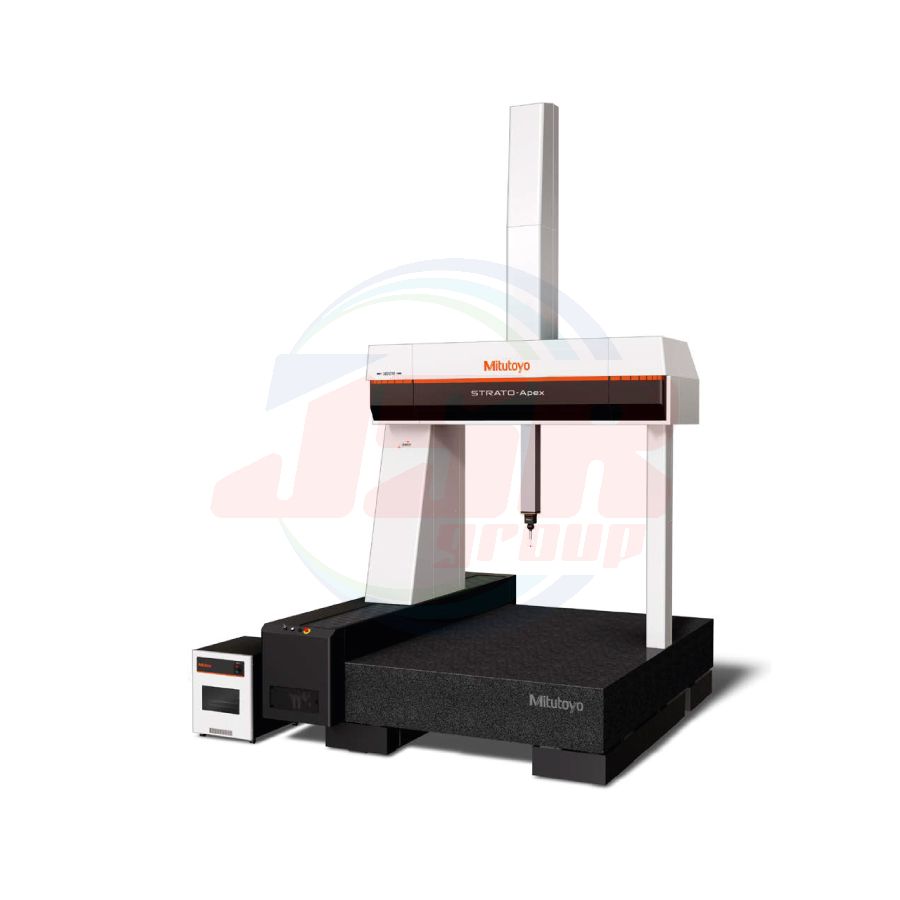

STRATO-Apex 162012/163012
The following values are guaranteed when using the standard stylus. Standard stylus (TP200: ø4 × 10, MPP-310Q: ø4 × 18, SP25M: ø4 × 50)
(Unit: μm)
Title
Symbol
Standard
TP200
SP25M
SP80*
Maximum permissible error of length measurement
E 0,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
3.5 + 4.0 L/1000
2.5 + 4.0 L/1000
2.5 + 4.0 L/1000
E 150,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
3.5 + 4.0 L/1000
2.5 + 4.0 L/1000
2.5 + 4.0 L/1000
Maximum permissible limit of the repeatability range
R 0,MPL
ISO 10360-2: 2009 JIS B 7440-2: 2013
3.5
2.5
2.5
Title
Symbol
Standard
TP200
SP25M
SP80*
Maximum permissible scanning mode form error on a sphere
P Form.Sph.Scan:SS: Tact,MPE
ISO 10360-5: 2020 JIS B 7440-5: 2022
-
2.5
2.5
Maximum permissible scanning mode time
τ Sph.Scan: PP: Tact,MPL
ISO 10360-5: 2020 JIS B 7440-5: 2022
-
60 s
60 s
Title
Symbol
Standard
TP200
SP25M
SP80*
Maximum permissible single-stylus form error
P Form.Sph.1 × 25:SS: Tact,MPE
ISO 10360-5: 2020 JIS B 7440-5: 2022
3.5
2.3
2.3
* Available by custom order only.

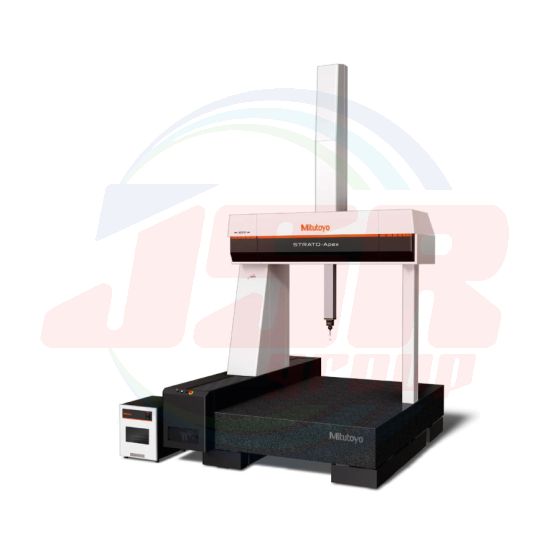

STRATO-Apex 162016/163016
(Unit: μm)
Title
Symbol
Standard
TP200
SP25M
SP80*
Maximum permissible error of length measurement
E 0,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
4.0 + 4.0 L/1000
3.0 + 4.0 L/1000
3.0 + 4.0 L/1000
E 150,MPE
SO 10360-2: 2009 JIS B 7440-2: 2013
4.0 + 4.0 L/1000
3.0 + 4.0 L/1000
3.0 + 4.0 L/1000
Maximum permissible limit of the repeatability range
R 0,MPL
ISO 10360-2: 2009 JIS B 7440-2: 2013
4.0
2.5
2.5
Title
Symbol
Standard
TP200
SP25M
SP80*
Maximum permissible scanning mode form error on a sphere
