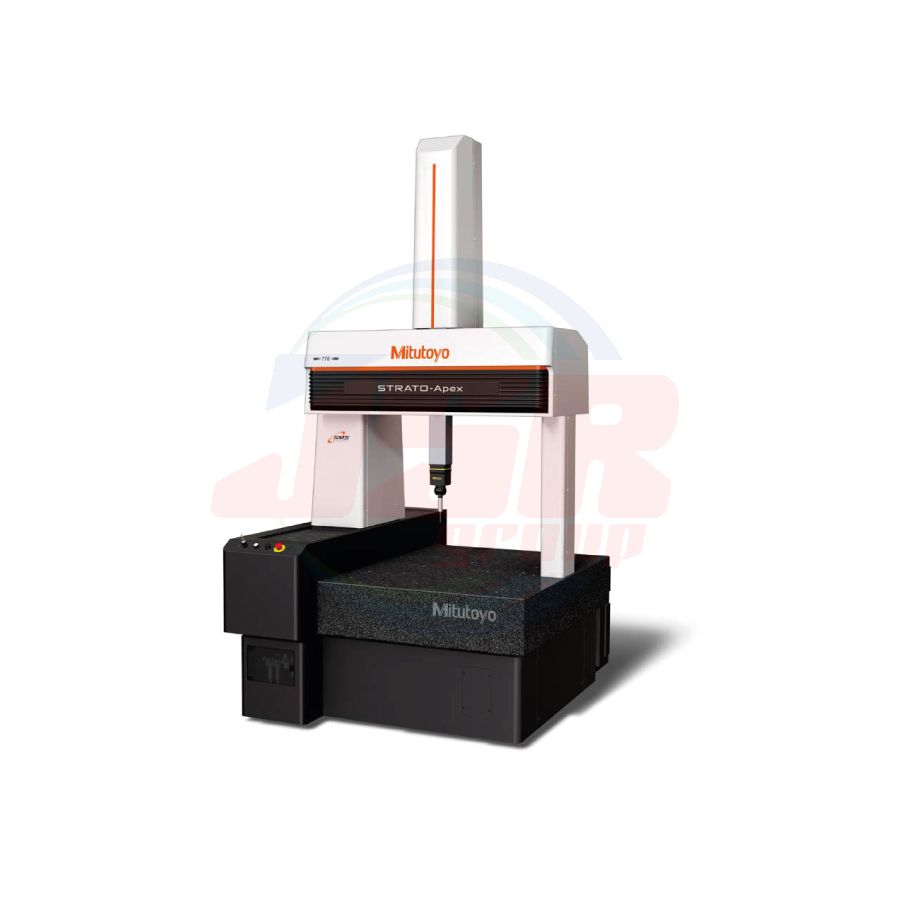

Moving speed: Max.300 mm/s for each axis (maximum combined speed: 519 mm/s)
Measuring speed 1 – 3 mm/s
J/S MODE
Moving speed 0 – 80 mm/s
Measuring speed 0 – 3 mm/s
Fine speed 0 – 0.05 mm/s
Drive acceleration
1500 mm/s² for each axis (maximum combined acceleration: 2598 mm/s²)
Measuring method
Linear encoder
Resolution
0.00002 mm
Work table*
Material
Granite
Size (table surface)
862 × 1420 mm
Tapped inserts
M8 × 1.25
Workpiece
Maximum height
770 mm
Maximum mass
500 kg
Machine mass (includes the vibration-damping platform and controller, but not workpiece)
1895 kg
Power supply specifications
Power supply voltage: AC100-120/200-240 V±10 %; power supply capacity: 700 W
Air supply
Pressure
0.4 MPa
Consumption
60 L/min under normal conditions (air source: At least 120 L/min)
Guaranteed accuracy temperature environment
Temperature range
19 to 21 °C
Temperature change
Per hour
1.0 °C
Per 24 hours
2.0 °C
Temperature gradient
vertical/horizontal
1.0 °C/m
* While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
Accuracy
The following values are guaranteed when using the standard stylus. Standard stylus (TP200: ø4 × 10, MPP-310Q: ø4 × 18, SP25M: ø4 × 50)
(Unit: μm)
Title
Symbol
Standard
TP200
MPP-310Q*
SP25M + SM25-1 + SH25-1
SP25M + SM25-2 + SH25-2
SP25M + SM25-3 + SH25-3
SP80*
Maximum permissible error of length measurement
E 0,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
1.4 + 2.5 L/1000(700Series
0.7 + 2.5L/1000
0.7 + 2.5L/1000
0.7 + 2.5L/1000
-
0.7 + 2.5L/1000
1.5 + 2.5 L/1000(900Series)
E 150,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
1.9 + 2.5 L/1000(700Series)
0.7 + 2.5L/1000
0.7 + 2.5L/1000
-
-
0.7 + 2.5L/1000
2.0 + 2.5 L/1000(900Series)
E 200,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
-
-
-
0.7 + 2.5L/1000
-
-
E 280,MPE
ISO 10360-2: 2009 JIS B 7440-2: 2013
-
-
-
-
0.9 + 2.5L/1000
-
Maximum permissible limit of the repeatability range
R 0,MPL
ISO 10360-2: 2009 JIS B 7440-2: 2013
1.2
0.7
0.7
0.7
0.7
0.7
Title
Symbol
Standard
TP200
MPP-310Q*
SP25M + SM25-1 + SH25-1
SP25M + SM25-2 + SH25-2
SP25M + SM25-3 + SH25-3
SP80*
Maximum permissible scanning mode form error on a sphere
